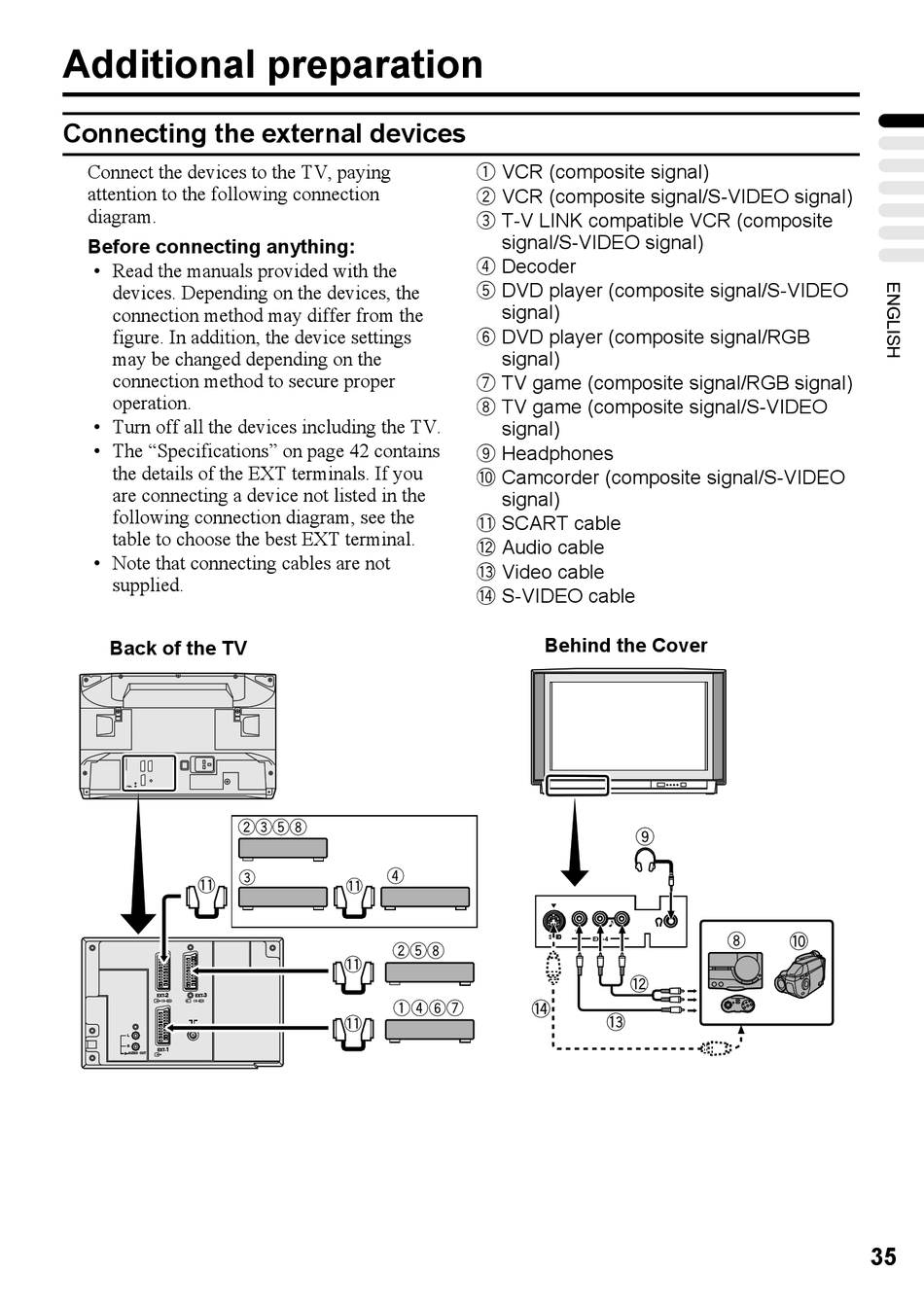

Additional preparation

Connecting the external devices
Connect the devices to the TV, paying
attention to the following connection
diagram.
Before connecting anything:
• Read the manuals provided with the
devices. Depending on the devices, the
connection method may differ from the
figure. In addition, the device settings
may be changed depending on the
connection method to secure proper
operation.
• Turn off all the devices including the TV.
• The "Specifications" on page 42 contains
the details of the EXT terminals. If you
are connecting a device not listed in the
following connection diagram, see the
table to choose the best EXT terminal.
• Note that connecting cables are not
supplied.
Back of the TV
2 3
EXT- EXT-
S S
L
R
1
EXT-
AUDIO OUT
1 VCR (composite signal)
2 VCR (composite signal/S-VIDEO signal)
3 T-V LINK compatible VCR (composite
signal/S-VIDEO signal)
4 Decoder
5 DVD player (composite signal/S-VIDEO
signal)
6 DVD player (composite signal/RGB
signal)
7 TV game (composite signal/RGB signal)
8 TV game (composite signal/S-VIDEO
signal)
9 Headphones
0 Camcorder (composite signal/S-VIDEO
signal)
- SCART cable
= Audio cable
~ Video cable
! S-VIDEO cable
Behind the Cover
35
