5.5.

PHASE SEQUENCE INDICATION

 The maximum input for AC voltage is 440V. Do not measure higher
voltages to avoid risks of electrical shocks or serious damages to the
instrument.

exceeds 50V, even if the batteries are low or have been removed.
1. Perform the preliminary Autotest (see § 4.3).
2. Connect the L1 probe to phase 1 and the L2 probe to phase 2 of the three-phase
system under test (see Fig. 6). The measurement is performed only when probes are
in contact to live conductors.
3. The instrument turns automatically on and the measured AC voltage value is displayed
both in numerical and bargraph
4. AC symbol is displayed. LEDs
measurements from 180V to 440V,
5. symbol (clockwise) or
the phase sequence detected.
6. Connect the L1 probe to phase 2 and the L2 probe to phase 3 of the three-phase
system under test.
displayed according to the phase sequence detected.
7. Connect the L1 probe to phase 2 and the L2 probe to phase 3 of the three-phase
system under test.
displayed according to the phase sequence detected.
8. Press the key to switch on the white LED illuminator to perform measurements in
dark environments.
symbol is lighted up whenever the voltage between the probes

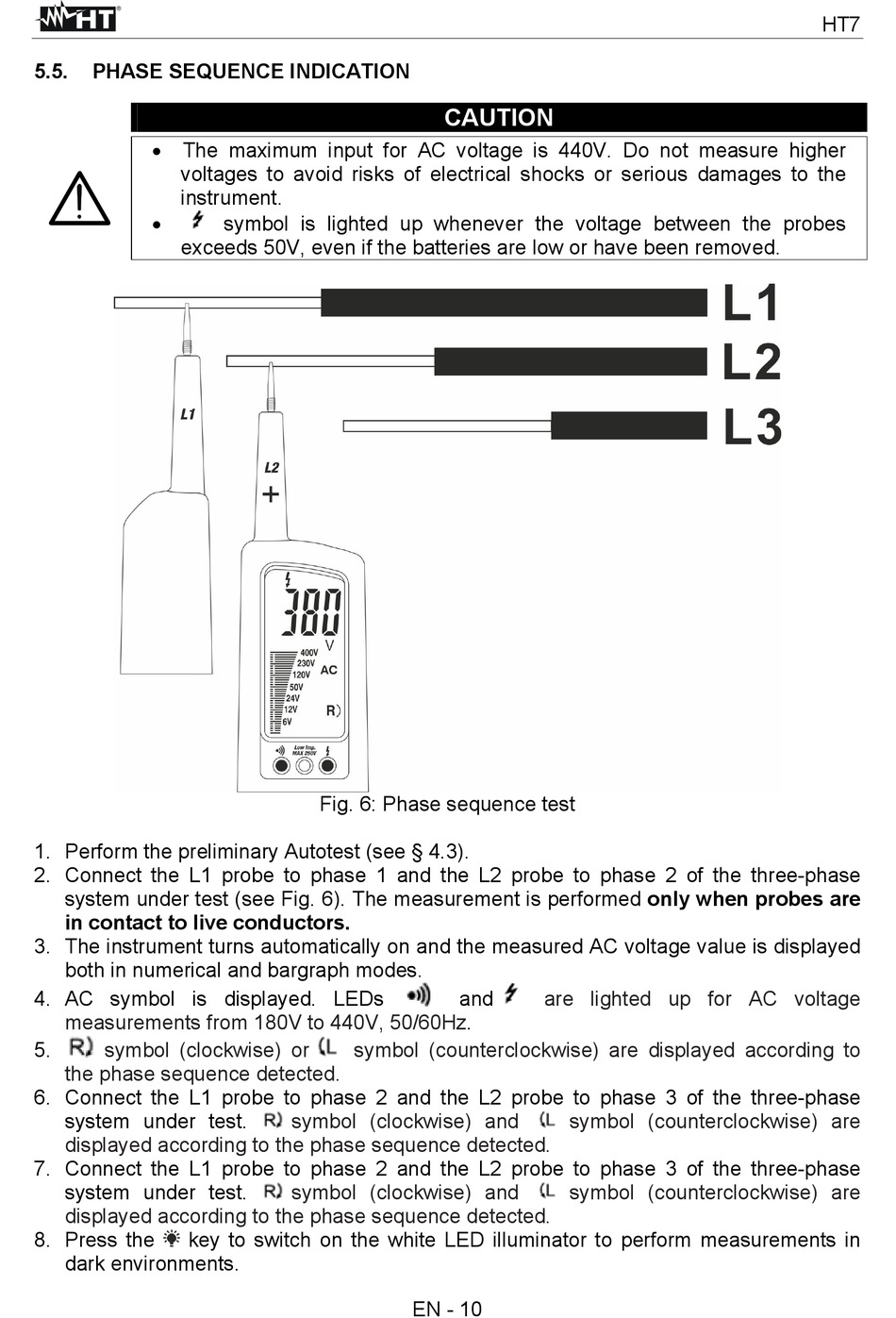

Fig. 6: Phase sequence test
modes.
50/60Hz.
symbol (counterclockwise) are displayed according to
symbol (clockwise) and
symbol (clockwise) and
CAUTION
and are lighted up for AC voltage
symbol (counterclockwise) are
symbol (counterclockwise) are
EN - 10
HT7
