I n t e n t o f U s e
G2-s is a hydro-pneumatic tool designed to place Avdel
breakstem fasteners at high speed making it ideal for batch or
flow-line assembly in a wide variety of applications throughout all
industries. It can place all fasteners listed opposite.
The tool features an adjustable vacuum system for fastener
retention and trouble free collection of the spent stems
regardless of tool orientation.
See the 'Operating Procedure', page 7, for adjustment
instructions.
A complete tool, except the 71400-00039, is made up of three
separate elements which must be ordered individually.

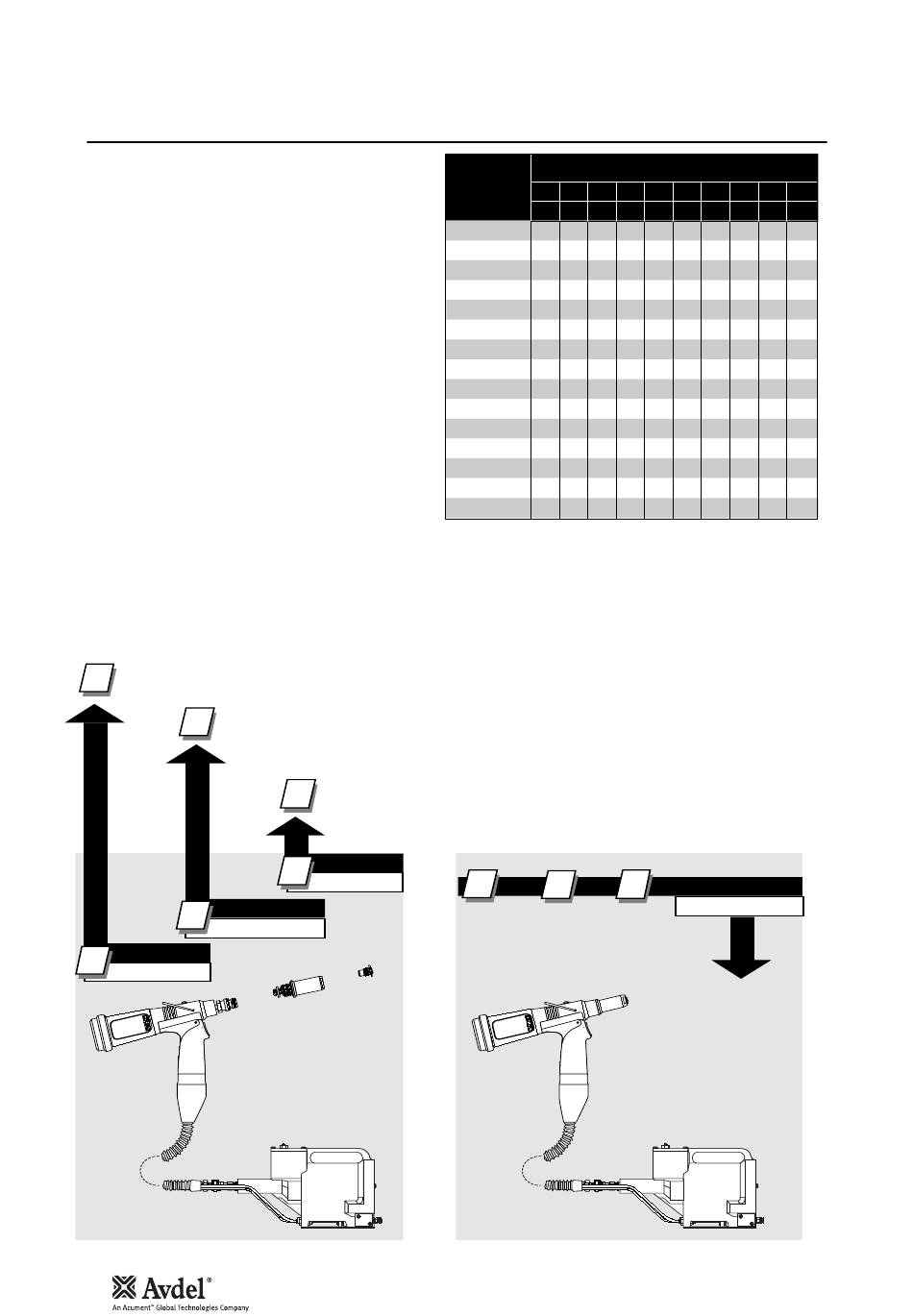

See diagram below.
If you wish to place most of the fasteners in the table
opposite, you can order the 71400-00039 complete tool
comprising:
• 71400-01000 base tool.
• 71210-15000 nose assembly.
• Nose tips 71210-05002, 71210-16070 and 07381-
04701.
Two of the nose tips will be stored in the intensifier body.
Fit nose tips as indicated on pages 8-10.
You can order the above three nose tips and nose assembly as a nose assembly kit part number 71210-15100. For some
fasteners, the base tool, nose assembly and nose tip must be ordered separately.
NOSE EQUIPMENT MUST BE FITTED AS DESCRIBED ON PAGE 9.
The part number of the base tool remains the same whichever nose assembly, or nose tip is fitted. For details of the pistol, see
1
page 20. If a swivel head is fitted, the same base tool must be adapted. See details page 13.
This single nose assembly will allow placing of non-aerospace fasteners by simply selecting the appropriate
2
nose tip from the range of type 1 nose tips. Other nose assemblies are available for applications with
restricted access, for aerospace and special fasteners. See tables pages 8 and 10. A nose assembly can
be substituted by a swivel head (see pages 12-15). In this case the nose tip is part of the swivel head.
NOSE ASSEMBLY
2
71210-15000
BASE TOOL
1
71400-01000
6
®
FASTENER
MONOBOLT
INTERLOCK
3
The nose tip part number relates to a specific fastener. If access to the application is
restricted, some extended nose tips are available. See page 10 for selection table.
NOSE TIP
3
see note 3
FASTENER SIZE (
3 3.2 4.0 4.3
NAME
- 1 5 /32 -
/
8
AVEX ®
l l l
STAVEX ®
l l
AVINOX ®
l l
AVIBULB ®
l l
ETR
BULBEX ®
l
T-LOK ®
l
AVDEL ® SR
l l
®
®
TLR ®
®
AVDEL
l l
MBC
l l
MBC/LC
l l
AVSEAL ® l
+ +
1 3
2
MM
)
IN
4.8 5 5.2 6 6.5 7
3 /16 - - - - -
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l l l l
=
COMPLETE TOOL
71400-00 . . .
*
*
ADD 3 DIGITS FROM THE
LAST COLUMN OF A NOSE
TIP TABLE ON PAGE 8 OR 10.
FOR TOOLS WITH SWIVEL
HEADS USE TABLE PAGES
12-13.
