The fitting and servicing procedures for both types of head are almost identical. Differences are clearly indicated.
PRIOR to fitting a swivel head, the base tool must be adapted. See previous page.
The air supply must be disconnected when fitting or removing swivel heads.
F i t t i n g I n s t r u c t i o n s
The following procedure will allow you to assemble and fit either of the swivel heads to the tool. If you order a complete swivel head
rather than individual components, you will only need to start at stage L.
All moving parts should be lubricated. Unless stated otherwise use Moly lithium grease (details page 16).

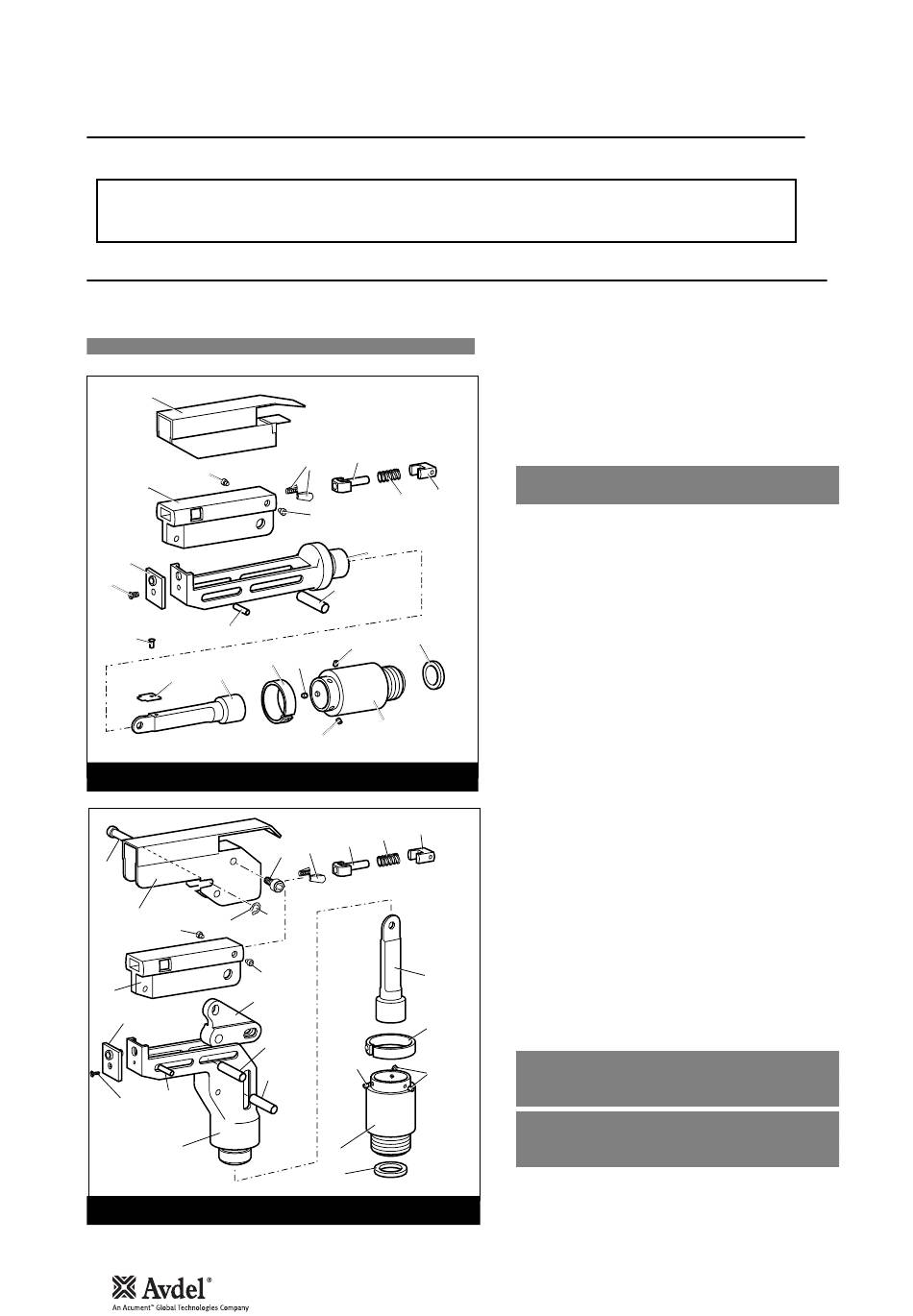

When on grey tint, instructions refer only to the right-angle swivel head. Item numbers in bold refer to illustrations below.
1
16
3
14
13
12
21
11
22
STRAIGHT SWIVEL HEAD
15
1
2
16
3
14
12
13
5
RIGHT-ANGLE HEAD
14
I M P O R T A N T
18
17
19
16
5
6
10
8
7
8
9
8
20
19
18
17
23
11
16
4
6
8
6
9
10
A Fit locking ring 10 over jaw spreader housing 1.
B Coat screw 13 with thread locking adhesive and use to
secure nose tip 14 onto body 5.
C Lightly lubricate items 17, 18, 19, 20 and insert into jaw
carrier 3 as shown. Secure with screws 16.
D Position lever 4 into body 5 and hold in place with pin 15
20 through the hole of body 5 (not a slot).
E Lubricate the sides of the jaw carrier assembly and insert
into body 5.
F Lubricate rollers 8 and ENSURE that they will freely rotate in
the holes of adaptor 9. If necessary ream the holes.
G Position spring clip 7 over adaptor 9 past the holes for the
rollers and rotate until the locating peg is aligned with the
corresponding hole in adaptor 9 (smallest hole).
H Fit adaptor 9 over the end of body 5 and drop rollers 8 into
place. Push spring clip 7 over rollers 8.
I Insert spindle 11 through adaptor 9 into jaw carrier 3 until
the hole lines up with slot in body 5. Temporarily hold in
place with pin 6.
J Insert pin 12 through the front slot of body 5 into jaw carrier
3.
K Hold the assembly vertical to prevent all pins dropping and
slide the jaw carrier assembly back and forth a few times to
ensure free movement. Go to M.
L Remove screws 23 (4 off) and guard 1. On a straight swivel
head also remove screw 21 and platform 22.
M Push pin(s) 6 out and let spindle 11 drop out. Screw spindle
11 onto the jaw spreader housing of the tool, leaving the
small screw fixing hole uppermost for straight swivel.
Tighten gently with a tommy bar.
N Screw the assembly over spindle 11 onto the tool handle.
Replace pin(s) 6.
O On straight swivel heads attach platform 22 onto the top of
the spindle with screw 21. Deburr the back end of platform
22 so that it cannot catch on guard 1.
P Snap guard 1 over the assembly, align screw holes in guard
7
with tapped holes in body assembly.
Q Insert pivot pin 15 through slots in guard and hole in body.
8
Fit circlip 2 onto pivot pin so that the circlip seats in
groove provided.
R Coat the thread of screws 23 (4 off) with thread locking
adhesive and screw into body assembly securing guard to
body assembly.
Item numbers in bold refer to illustrations on this page.
