10.5 Enclosure exhaust device

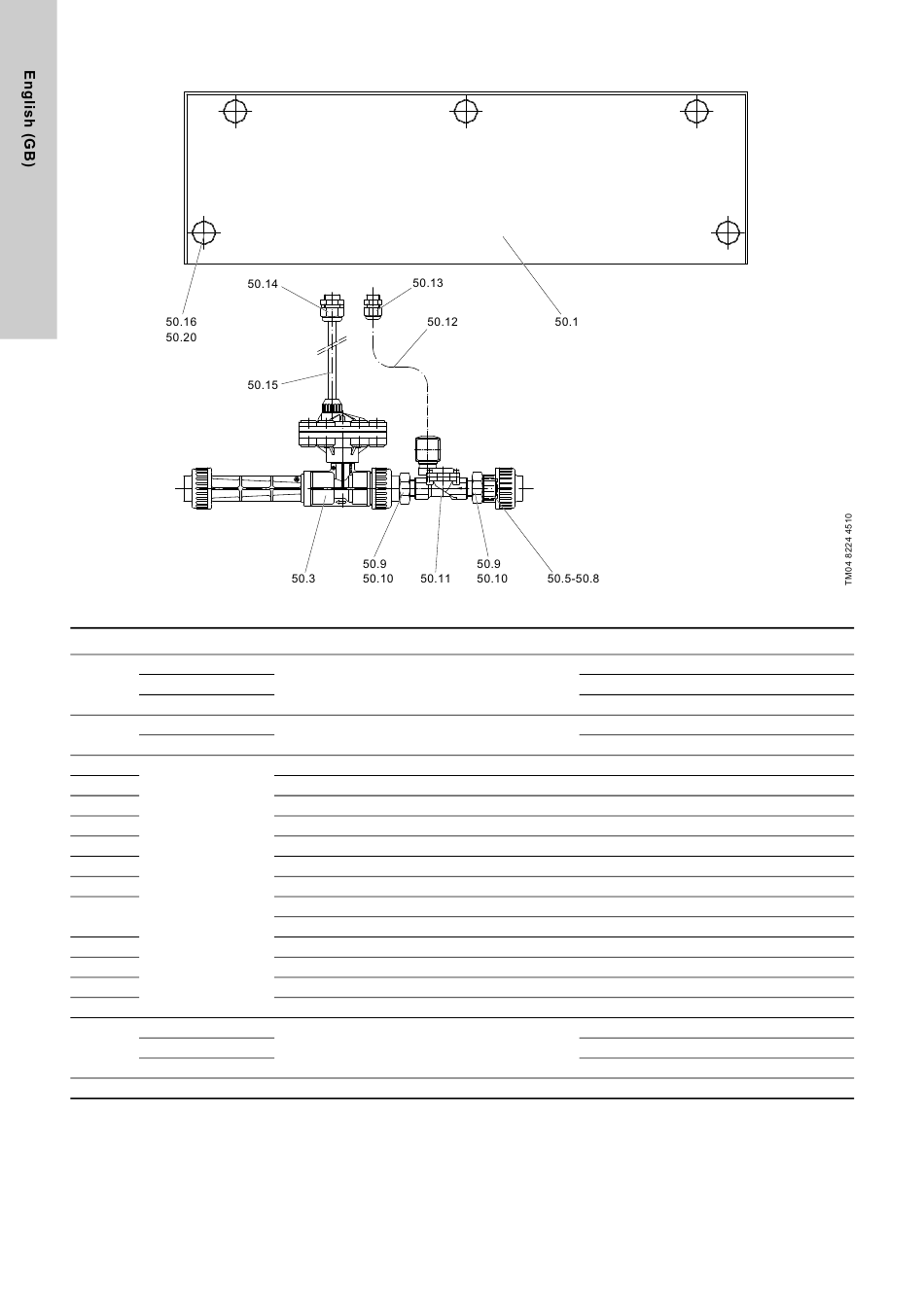

Fig. 32 Spare parts for exhaust device
Pos. OCD-164
-30 to -220
50.1 -350 to -1000
-1500 to -2000
-30 to -220
50.3
-350 to -2000
50.5
50.6
50.7
50.8
50.9
50.10
50.11 -30 to -2000
50.12
50.13
50.14
50.15
50.16
-30 to -220
50.18 -350 to -1000
-1500 to -2000
50.20 -30 to -2000
44
Description
Lateral part
Injector
Insert, DN 20
Screw-in part, DN 20
Union nut, DN 20
O-ring
Reduction, short, DN 20/DN 15
Connection nipple
Solenoid valve, 230 V, 50 Hz
Solenoid valve, 115 V, 60 Hz
Connection cable
Cable gland, M16 x 1.5
Cable gland, M20 x 1.5
PE hose 8/11
Screw, M6 x 25
Rear wall
Knurled nut, M6
Product No.
95729411 (12.5998-200)
95729412 (12.5999-200)
95729413 (12.5999-210)
96691986 (545-1000-1)
96693040 (545-2000-1)
96688366 (53.056-25)
96688372 (53.057-25)
91835736 (53.058-25)
91835574 (52.141)
96688439 (53.183-25-20)
96708988 (12.6416-400)
96687772 (45.10245-1/2)
96687775 (45.10249-1/2)
96708949 (12.6023-420)
96726056 (45.10131)
96687755 (45.10132)
96687899 (47.1320008)
96726750 (50.461)
95729414 (12.6237-300)
95729415 (12.6237-310)
95729416 (12.6237-320)
95729417 (50.1570)
