The lampholder is aligned at the factory. Due to differences between lamps, fine adjustment may improve
light performance.
Strike the lamp and focus the light on a flat surface (wall). Center the hot-spot (the brightest part of the
beam) using the 3 adjustment screws "A, B, C". Turn one screw at a time to drag the hot-spot diagonally
across the projected image. If you cannot detect a hot-spot, adjust the lamp until the light is even.
To reduce a hot-spot, pull the lamp in by turning all three screws "A, B, C" clockwise ¼-turn at a time until
the light is evenly distributed.
If the light is brighter around the edge than it is in the center, or if light output is low, the lamp is too far back
in the reflector. "Push" the lamp out by turning the screws "A, B, C" counterclockwise ¼-turn at a time the
light is bright and evenly distributed.

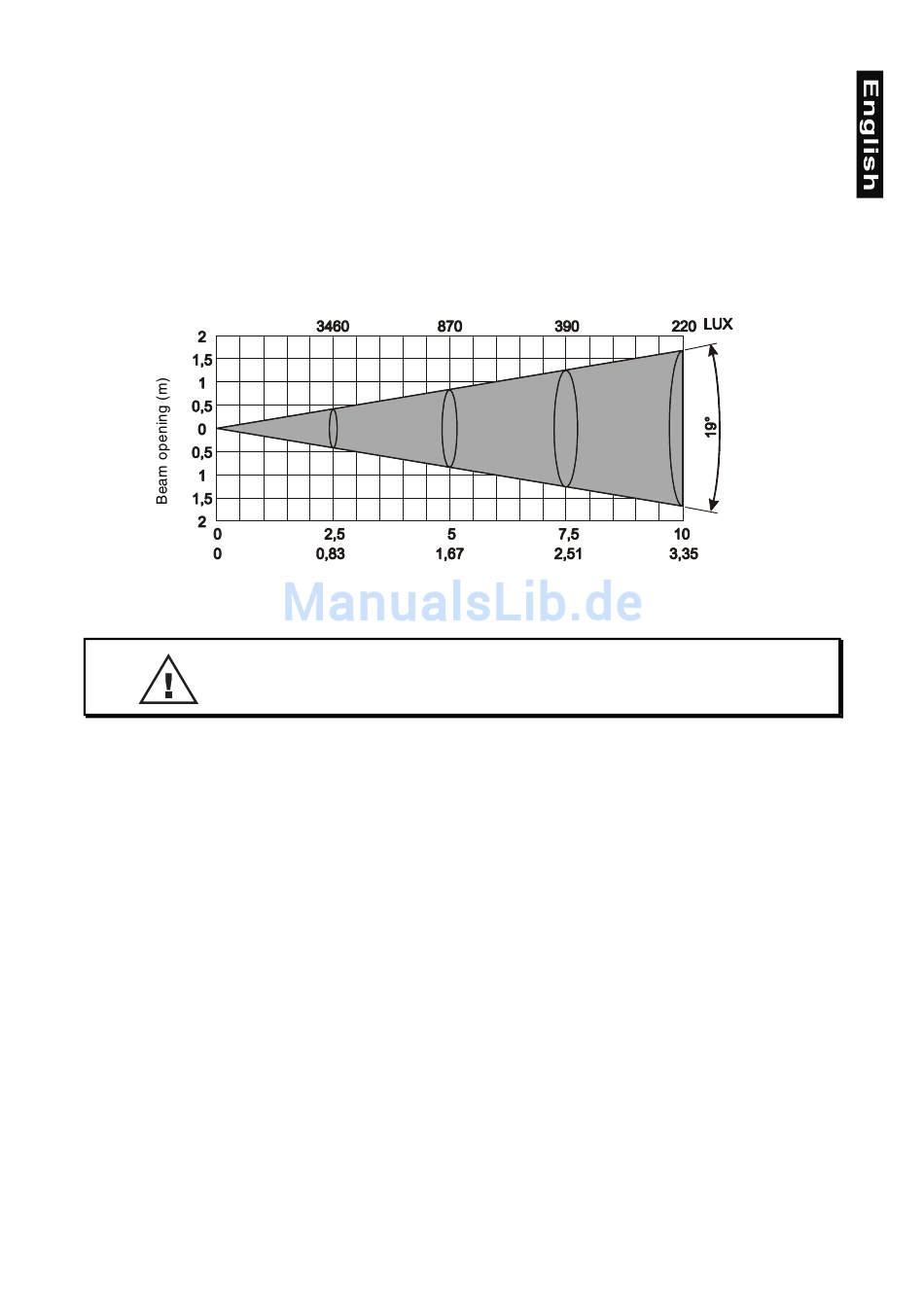

Beampath

Rigging

Please consider the EN 60598-2-17 and the respective national norms during the
installation! The installation must only be carried out by an authorized dealer!
The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight
for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net.
This secondary safety attachment must be constructed in a way that no part of the installation can fall down if
the main attachment fails.
When rigging, derigging or servicing the fixture staying in the area below the installation place, on bridges,
under high working places and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are approved by an
expert before taking into operation for the first time and after changes before taking into operation another
time.
The operator has to make sure that safety-relating and machine-technical installations are approved by an
expert after every four year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are approved by a
skilled person once a year.
Procedure:
The projector should be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to)
calculating working load limits, installation material being used, and periodic safety inspection of all
installation material and the projector. If you lack these qualifications, do not attempt the installation yourself,
DANGER TO LIFE!
21
Distance (m)
Diameter (m)
