MindPrint T.R.I.O.

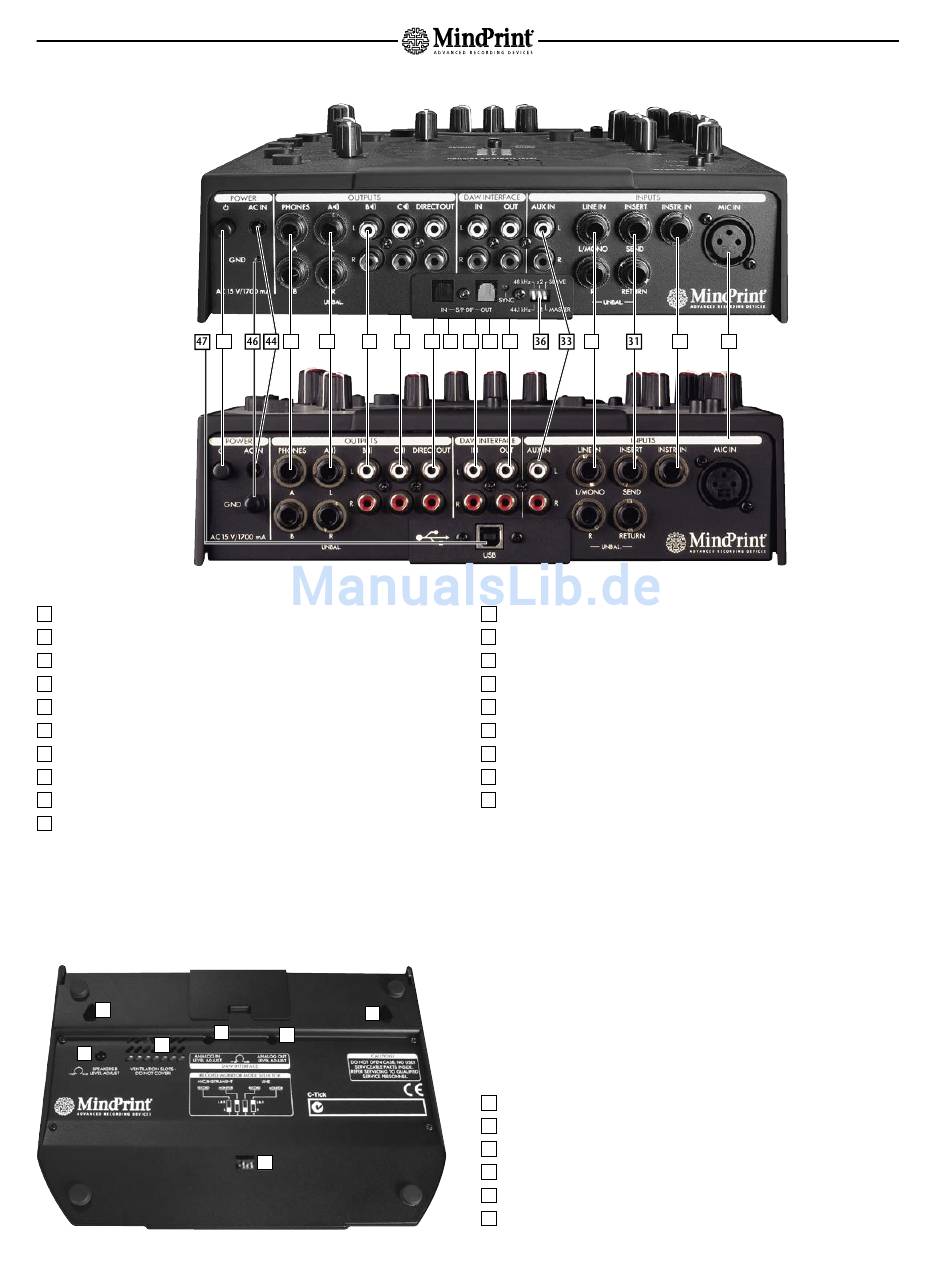

Rear panel

TRIO is available
in two models:
S/P-DIF
USB
29 MIC IN: microphone input
30 INSTR. IN: instrument input
31 INSERT: insert send and return
32 LINE IN: stereo line input
33 AUX IN: stereo aux input
34 DAW DIGITAL IN: optical S/PDIF input
35 DAW DIGITAL OUT: optical S/PDIF output
36 SYNC Board: synchronization tool
37 DAW ANALOG OUT: stereo output to the DAW
38 DAW ANALOG IN: stereo input from the DAW
53
50
52
49
6
45 43 42 41 40
53
51
48
39 34 38 35 37 32
39 DIRECT OUT: master output from DAW ON and MONITOR ON
40 SPEAKERS C: output to monitor pair C
41 SPEAKERS B: output to monitor pair B
42 SPEAKERS A: output to monitor pair A
43 PHONES: headphones ports A and B
44 AC IN: accepts the included wall wart power supply
45 POWER: mains switch
46 GROUND: earthing screw
47 USB

Bottom View

48 DIP switch for routing recording /monitor busses
49 Rotary knob for fine-tuning SPEAKERS B
50 Rotary knob for fine-tuning the DAW Interface's analog inputs
51 Rotary knob for fine-tuning the DAW Interface's analog outputs
52
Ventilation slots - do not cover or obstruct!
53
Vertical mounting bracket
30 29
