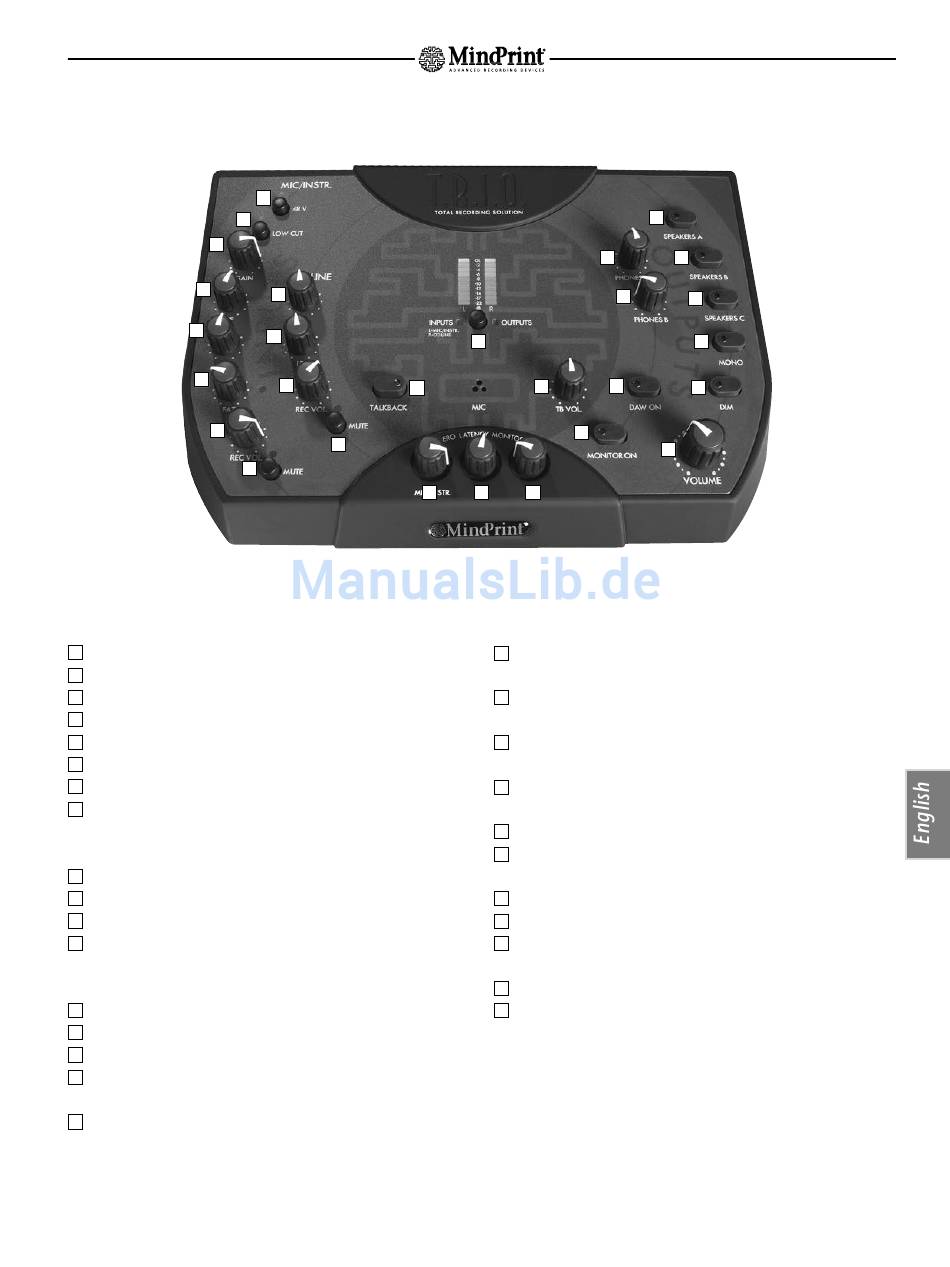

Front view

2
3
4
5
6
7
Mic/Instrument Preamp
1 48 V: activates 48-volt phantom power
2
LOW CUT: activates the Low Cut Filter
3
GAIN: controls input gain
4 HF: cuts/boosts treble
5
LF: cuts/boosts bass
6 FAT: controls the compressor's intensity
7
REC VOL.: controls to-DAW recording level
8
MUTE: silences MIC/INSTR.
Stereo LINE Preamp
9
HF: cuts/boosts treble
10 LF: cuts/boosts bass
11
REC VOL.: controls to-DAW recording level
12
MUTE: silences LINE
Zero Latency Monitor
13
MIC/INSTR.: controls the channel strip's monitor level
14 LINE: controls the LINE channel's monitor level
15
AUX: controls the AUX input's monitor level
16
MONITOR ON: routes MIC/INSTR., LINE and AUX to the
monitor buss
17
DAW ON: sends the incoming signal from the Digital Audio
Workstation to the monitor buss
1
9
10
11
26
12
8
13
19
24
25
28
27 17
16
14 15
Monitor section
18 VOLUME: controls the monitor section's master level
(but not PHONES and DIRECT OUT)
19 SPEAKERS A: routes output signal to monitor pair A
(main monitor)
20 SPEAKERS B: routes output signal to monitor pair B
(alternative monitor)
21
SPEAKERS C: routes output signal to monitor pair C
(or subwoofer)
22 MONO: configures a mono monitor signal
23
DIM: cuts the monitor's master level 20 dB
(except Headphones)
24 PHONES A: controls the volume of headphones port A
25
PHONES B: controls the volume of headphones port B
26 TALKBACK: routes the TALKBACK microphone (MIC)
to headphones (not to SPEAKERS)
27
TB VOL: controls TALKBACK microphone volume
28 INPUTS/OUTPUTS: assigns LED indicators to the input
or output signal
®
MindPrint T.R.I.O.
20
21
22
23
18
