WIRING DIAGRAM

To avoid serious injury or damage,
CAUTION!
disconnect electrical power before servicing this meter
JP3
JP3
Connections
2 1
2 1
115 VAC
4 3
4 3
2 1
230 VAC
JP1
4 3
2 1
9-28 VDC
4 3
JP1/JP2
J3
Connections
2 1
115/230
VAC
2 1
2 1
9-28 VDC
2 1
AC L1 L2 EARTH
DC +V GND EARTH
SYNC SELECT

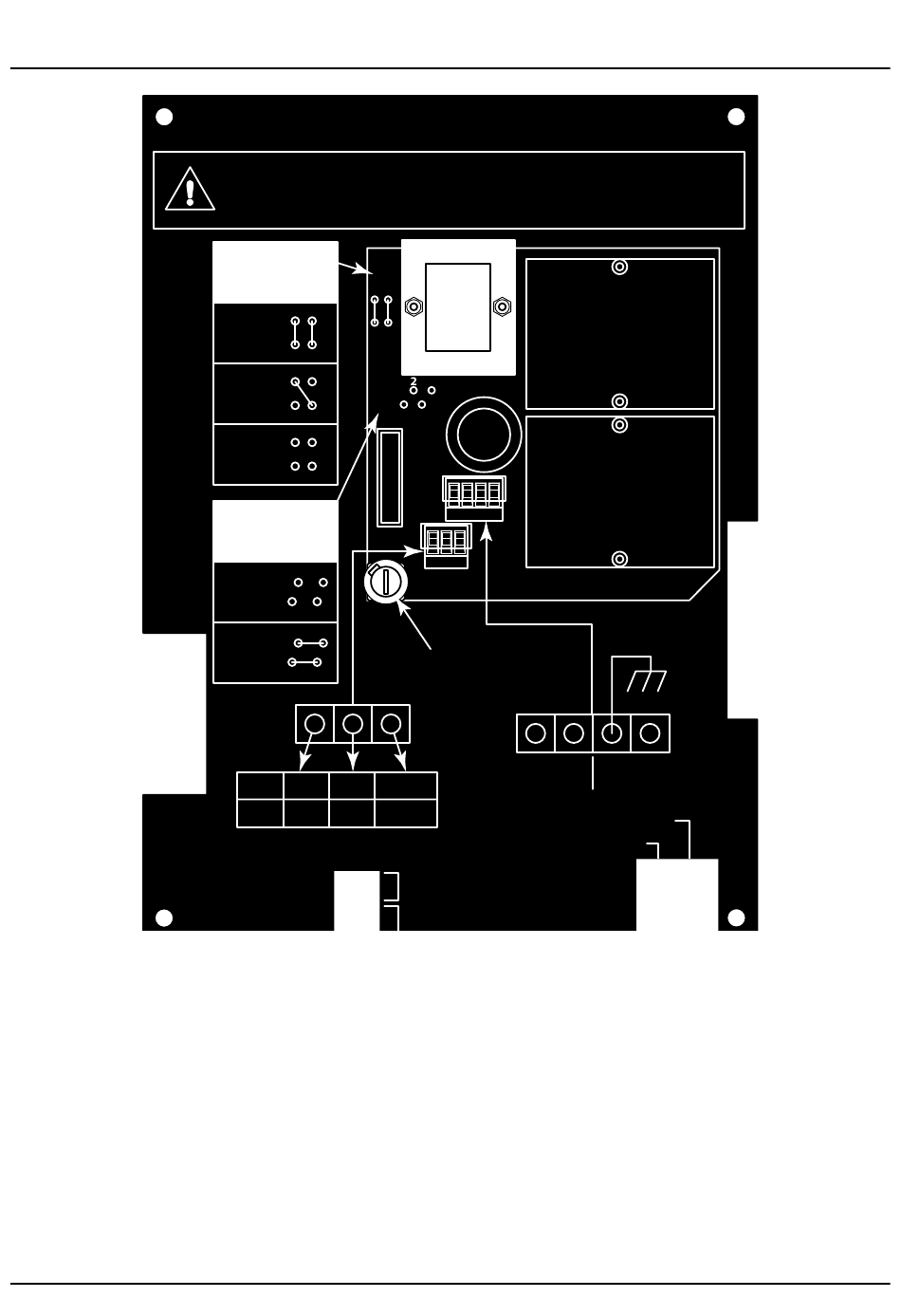

Abbildung 13: Ansicht des Motherboards
UF_DYN-DFX_BA_01_1212
1
JP2
2 1
J4
J2
Fuse (5x20mm)
AC: 0.25 A/250V Delay
DC: 1.0 A/250V Delay
RED BLK
BLU CLR
Receive Transmit
EXT SYNC
INT
EXT
MODULE #2
MODULE #1
BLK RED
CLR BLU
GND
