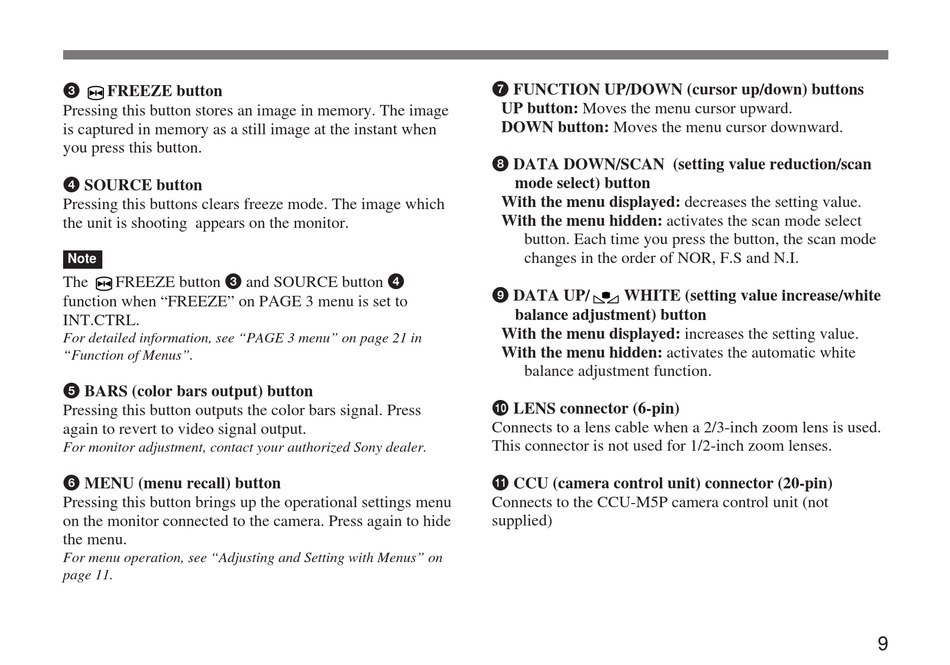

Sony 3CCD Bedienungsanleitung Seite 9

3
FREEZE button
Pressing this button stores an image in memory. The image
is captured in memory as a still image at the instant when
you press this button.
4 SOURCE button
Pressing this buttons clears freeze mode. The image which
the unit is shooting appears on the monitor.
Note
FREEZE button 3 and SOURCE button 4
The
function when "FREEZE" on PAGE 3 menu is set to
INT.CTRL.
For detailed information, see "PAGE 3 menu" on page 21 in
"Function of Menus".
5 BARS (color bars output) button
Pressing this button outputs the color bars signal. Press
again to revert to video signal output.
For monitor adjustment, contact your authorized Sony dealer.
6 MENU (menu recall) button
Pressing this button brings up the operational settings menu
on the monitor connected to the camera. Press again to hide
the menu.
For menu operation, see "Adjusting and Setting with Menus" on
page 11.
7 FUNCTION UP/DOWN (cursor up/down) buttons
UP button: Moves the menu cursor upward.
DOWN button: Moves the menu cursor downward.
8 DATA DOWN/SCAN (setting value reduction/scan
mode select) button
With the menu displayed: decreases the setting value.
With the menu hidden: activates the scan mode select
button. Each time you press the button, the scan mode
changes in the order of NOR, F.S and N.I.
9 DATA UP/
WHITE (setting value increase/white
balance adjustment) button
With the menu displayed: increases the setting value.
With the menu hidden: activates the automatic white
balance adjustment function.
0 LENS connector (6-pin)
Connects to a lens cable when a 2/3-inch zoom lens is used.
This connector is not used for 1/2-inch zoom lenses.
!¡ CCU (camera control unit) connector (20-pin)
Connects to the CCU-M5P camera control unit (not
supplied)
9
