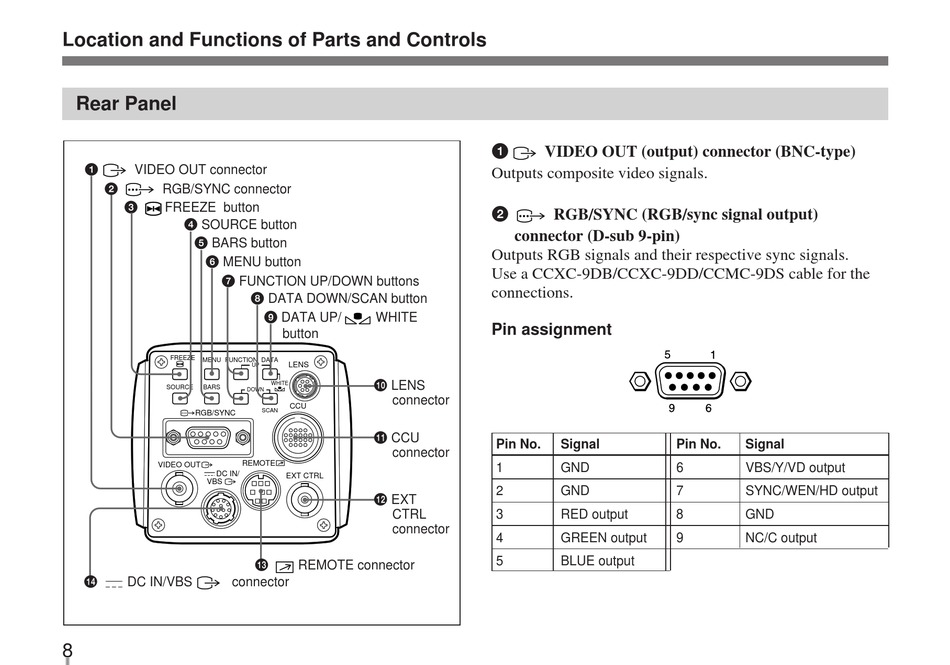

Location and Functions of Parts and Controls

Rear Panel

1
VIDEO OUT connector
2
RGB/SYNC connector
3
FREEZE button
4 SOURCE button
5 BARS button
6 MENU button
7 FUNCTION UP/DOWN buttons
FREEZE
MENU FUNCTION DATA
SOURCE BARS
RGB/SYNC
VIDEO OUT
DC IN/
VBS
!¢
DC IN/VBS connector
8
8 DATA DOWN/SCAN button
9 DATA UP/
WHITE
button
LENS
UP
0 LENS
WHITE
DOWN
connector
CCU
SCAN
!¡ CCU
connector
REMOTE
EXT CTRL
!™ EXT
CTRL
connector
!£
REMOTE connector
1
VIDEO OUT (output) connector (BNC-type)
Outputs composite video signals.
2
RGB/SYNC (RGB/sync signal output)
connector (D-sub 9-pin)
Outputs RGB signals and their respective sync signals.
Use a CCXC-9DB/CCXC-9DD/CCMC-9DS cable for the
connections.
Pin assignment
Pin No. Signal
1 GND
2 GND
3 RED output
4 GREEN output
5 BLUE output
Pin No. Signal
6 VBS/Y/VD output
7 SYNC/WEN/HD output
8 GND
9 NC/C output
