Shooting

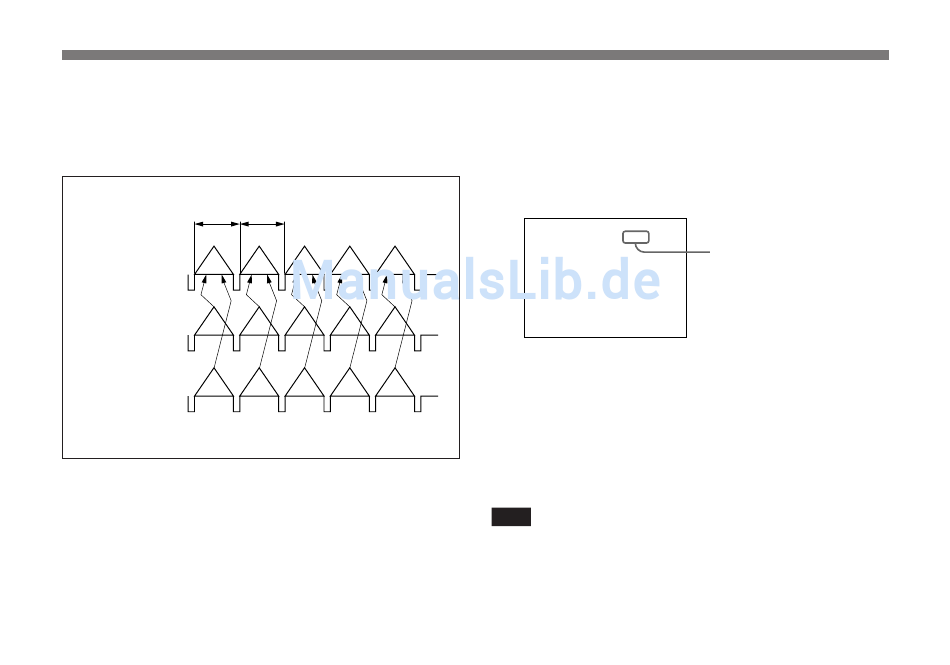

N.I mode (RGB outputs)
This mode has the frame shutter function.
This mode is suitable when connecting to a multi-scan
monitor or multi-scan printer.
1 frame
(1/50 sec.)
O+E
Memory output
(video signal
output)
O
CCD output 1
E
CCD output 2
The odd-field signal and even-field signal are sent to
memory together and processed as a one-frame video signal
in within one field. The video signals for 50 frames are sent
in a second. Thus, the unit can output twice the video signal
that can be output from a conventional unit.
36
O+E O+E O+E O+E
E O E O
O E O E
O: Odd
E: Even
To select the scan mode
1
Press the MENU button.
The menu appears and the currently selected scan mode
is displayed.
Check the currently selected scan mode.
> PAGE 1 scan : NOR : A
GA N I AGC
SHUTTER OFF
EXT. TR GGER I OFF
AE W NDOW I MED UM I
DETECT ON I PEAK
2
Press the MENU button.
The regular monitor screen appears.
3
Select the desired scan mode by pressing the SCAN
button on the rear panel.
The scan mode is switched in the order NOR, F.S and
N.I whenever you press the SCAN button.
Note
You cannot switch the scan mode when the menu is
displayed on the monitor.
Currently selected
scan mode
