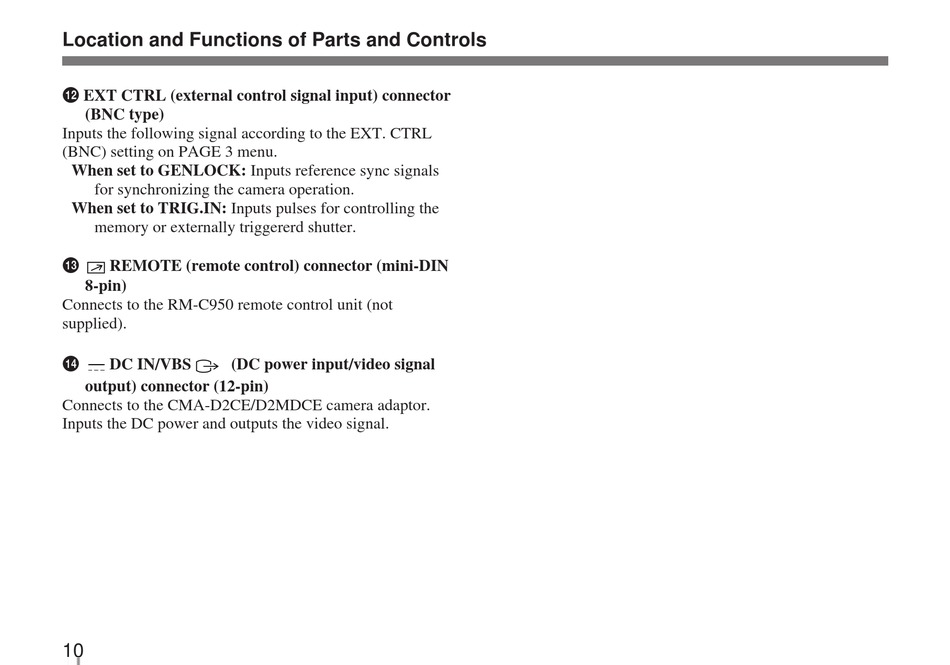

Location and Functions of Parts and Controls
!™ EXT CTRL (external control signal input) connector
(BNC type)
Inputs the following signal according to the EXT. CTRL
(BNC) setting on PAGE 3 menu.
When set to GENLOCK: Inputs reference sync signals
for synchronizing the camera operation.
When set to TRIG.IN: Inputs pulses for controlling the
memory or externally triggererd shutter.
!£
REMOTE (remote control) connector (mini-DIN
8-pin)
Connects to the RM-C950 remote control unit (not
supplied).
!¢
DC IN/VBS (DC power input/video signal
output) connector (12-pin)
Connects to the CMA-D2CE/D2MDCE camera adaptor.
Inputs the DC power and outputs the video signal.
10
