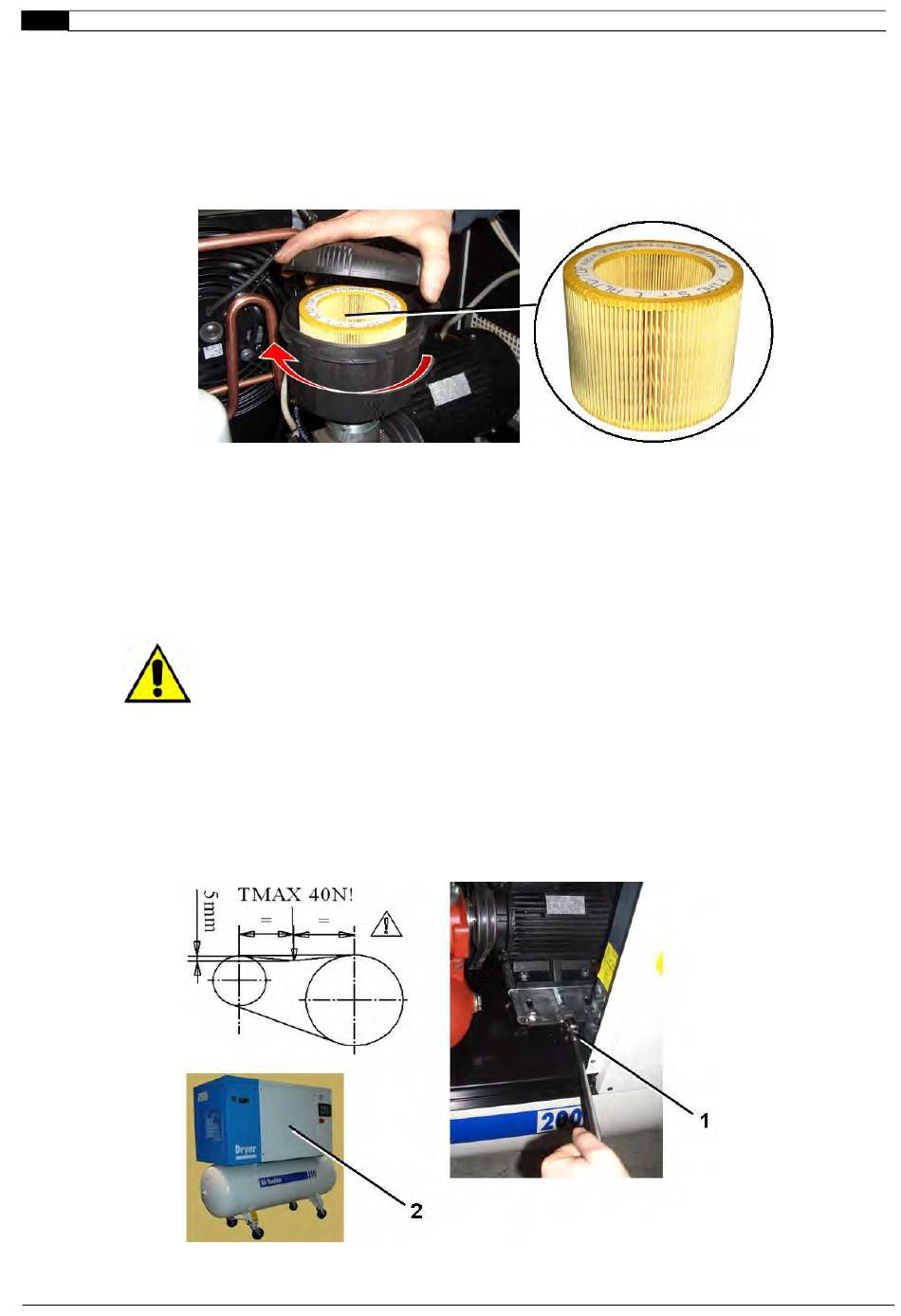

Replacing the air filter cartridge

Read all indicated in Section 6.1 before starting any maintenance jobs.
Open the side panel to gain access to inside the compressor.
Remove the cover 1.
Replace the cartridge of the air filter
7.1.5

Tightening the belt

Read all indicated in Section 6.1 before starting any maintenance jobs.
Open the side 2 panel to gain access to inside the compressor.
Every 500 hours of use it is advisable to check and maybe tighten the belt if necessary.
Using a dynamo meter apply a perpendicular force in point A of between 25N and 35N, the belt
must give by roughly 5mm.
Turn the nut
7.1.6

Replacing the belt

Read all indicated in Section 6.1 before starting any maintenance jobs.
Open the side 2 panel to gain access to inside the compressor.
Turn the nut
Slide the belt out, replace it with a new one and tighten as described in the previous section.
1 to tighten the belt.
Apply max 40 N of force. An excessive force could be damage the paraoil and the
screw unit!
1 to slacken the belt.
and replace the cover.
