Controls, indicators and safety devices of the compressor

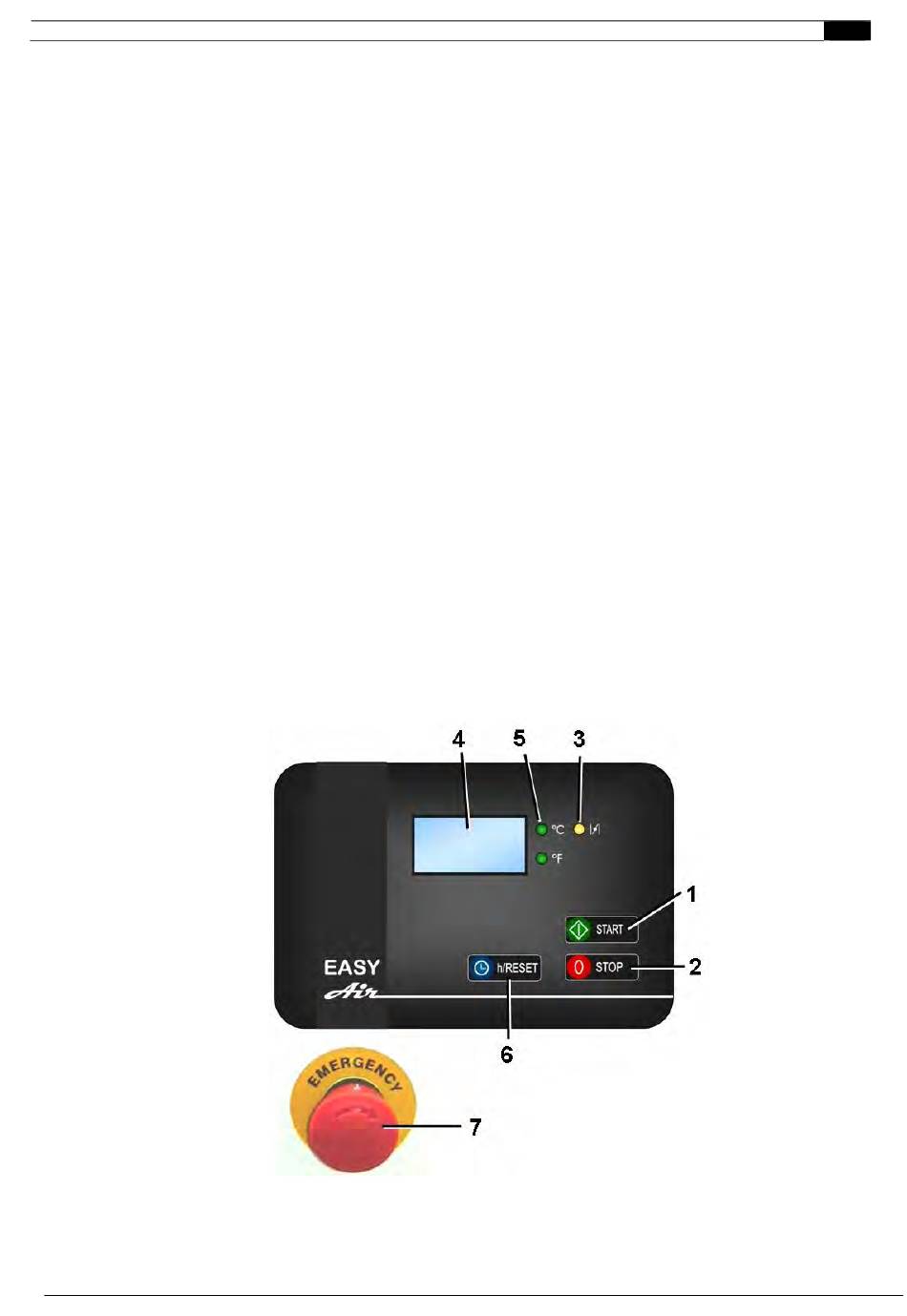

5.2.1 EASY AIR control panel
The control panel is made up of a set of buttons required for the main operational and control
functions of the compressor.
1 START
This button is used to turn the compressor on.
2 STOP
This button is used to turn the compressor off.
3 YELLOW LED
This point show the solenoid valve function
4 DISPLAY
The various functions are displayed: alarms and the delivery screw unit temperature.
5 GREEN LED (2)
Show the temperature unit (° F/° C)
6 h/RESET
This button is used to reset the compressor. If still pressed show the hours of duty.
7 EMERGENCY PUSH BUTTON (STOP)
This mechanically blocking push button is used to immediately stop the compressor in the
case of emergency. With the push button blocked it is impossible to start the compressor
(AL3 displayed on the screen).
To start the compressor again, turn the emergency button to release it, then press button
h/RESET, than press the START button.
