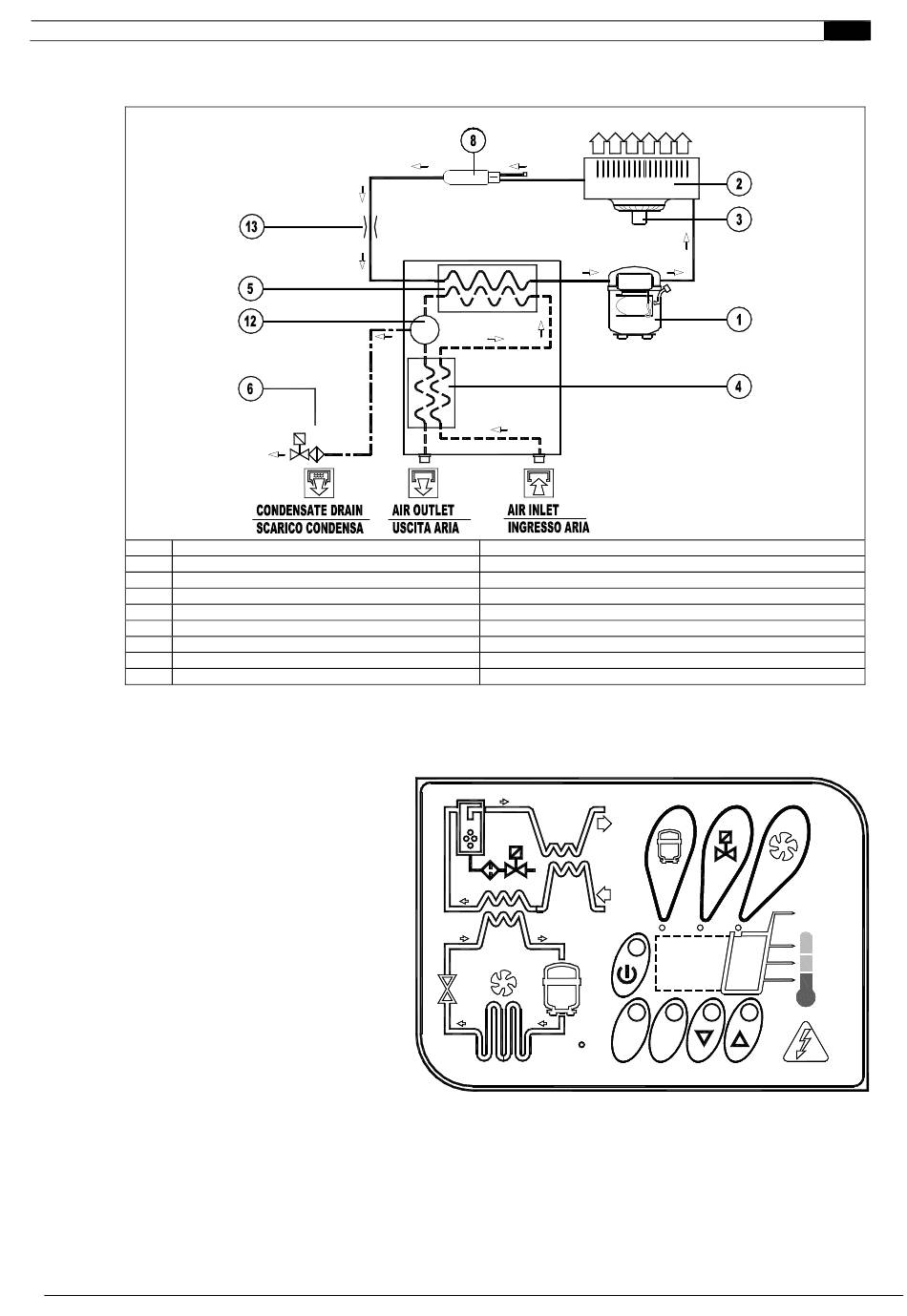

6.2 Fuctional diagram
1
Compressor
2
Condenser
3
Ventilator Motor
4
Air-air preexchanger
5
Evaporator
6
Condensate drain
8
Dehydrator filter
12
Condensate separator
13
Capillary tube
6.3

Control panel

The machines belonging to this
series are provided with an
electronic system for parameters
modification, so eventual reset
operations can be performed by
means of the digital panel located
on the front of the dryer.
The control panel illustrated in
PIC.1 is composed of 5 keys
(ON/OFF, TEST, SET, DOWN e
UP) and a 3 digit display, with
three signalling LEDs indicated by
icons.
TEST
77
LOAD
%
DEW POINT
LEVEL
SET
