Serielle Datenübertragung
Steckverbinder-Typ
RS232-Übertragung
Mark
Space
RS232-Empfang
Mark
Space
maximaler Eingang
RS232-Protokoll
RS485
Ausgangsdifferential
Eingangsdifferentialschwelle
Maximaler Eingang
Buslast
Tabelle 4 - Pinbelegung am Anschluss für die serielle Datenübertragung
Seite 6

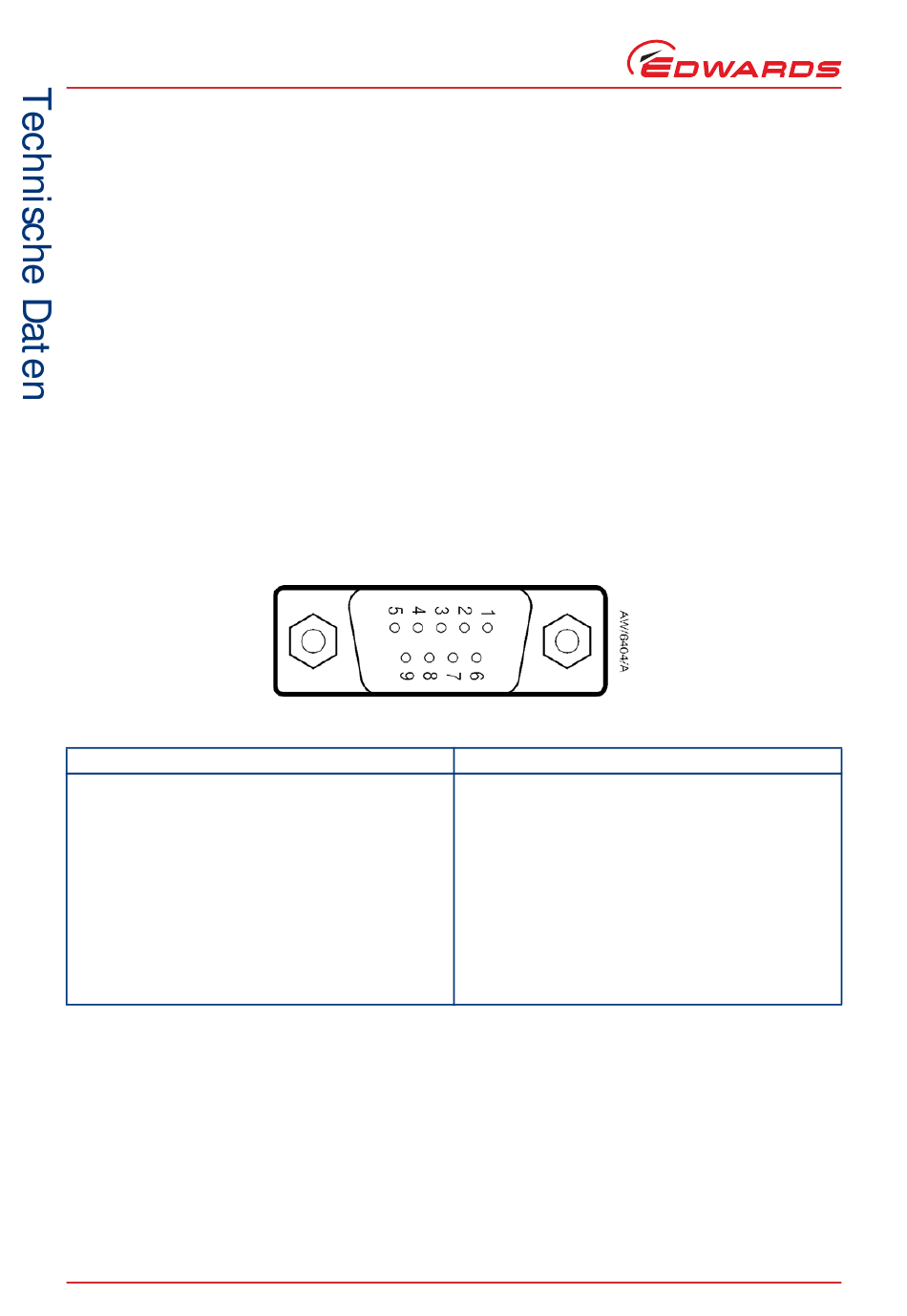

Abbildung 3 - Pinbelegung für eine 9-polige Sub-D-Buchse
Pin
1
2
3
4
5
6
7
8
9
Edwards und das Edwards-Logo sind Warenzeichen von Edwards Limited.
9-polige Sub-D-Buchse (siehe
< - 8 V (I
max.: -8 mA)
aus
> +8 V (I
max.: +8 mA)
aus
< +1,0 V (I
max.: -2,0 mA)
ein
>+2,0 V (I
max.: +2,0 mA)
ein
±12 V
9600 Baud, 1 Stopp-Bit, 8 Datenbits, keine Parität
>1,5 V (I
max.: ± 25 mA)
aus
>± 0,2 V (I
max.: ± 1 mA)
ein
-7,0 V bis +12 V
Der Controller legt eine Lasteinheit an den RS485-Bus an.
Zuordnung
N/C
RS232 transmit (RS232-Übertragung)
RS232 receive (RS232 Empfang)
N/C
RS232 common (RS232 gemeinsam)
N/C
N/C
RS485 data A (RS485 Daten A)
RS485 data B (RS485 Daten B)
