Vetus Bullflex Installationsanleitung Seite 14

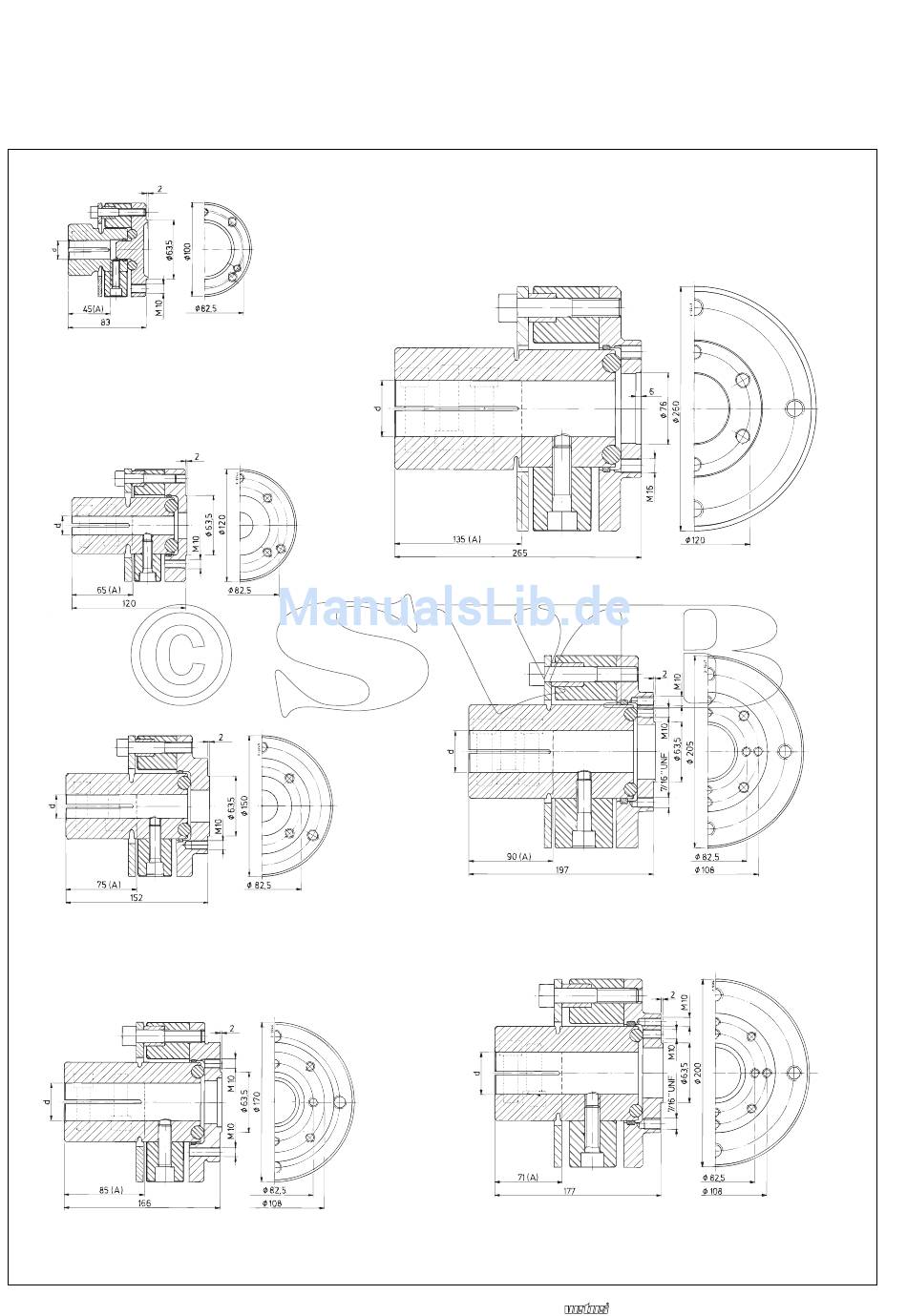

Hoofdafmetingen
Overall dimensions
Bullflex 1
Bullflex 2
Bullflex 4
Bullflex 8
14
3.0205
Hauptabmessungen
Dimensions principales
d: 20 mm
25 mm
1 inch
d: 20 mm
25 mm
1 inch
d: 20 mm
25 mm
1 inch
d: 30 mm
35 mm
40 mm
1 1 / inch
4
1 1 / inch
2
Dimensiones principales
Dimensioni principali
Bullflex 32
Bullflex 16
Bullflex 12
Flexible propeller shaft coupling BULLFLEX
Schaal 1:5
Scale 1:5
Maßstab 1:5
Echelle 1:5
Escala 1:5
Scala 1:5
d: 45 mm
50 mm
60 mm
70 mm
1 3 / inch
4
2 inch
d: 40 mm
45 mm
50 mm
1 1 / inch
2
1 3 / inch
4
2 inch
d: 35 mm
40 mm
45 mm
1 1 / inch
2
1 3 / inch
4
