To horizontally adjust screen, loosen safety screw and slide screen along adapter plate to
4
desired position as shown in fig 4.1. Then tighten safety screw.
NOTE: To lock the screen down, tighten safety screws to adapter plate as shown in cross
section of fig 3.1 on page 8. To remove screen from mount, loosen safety screws, swing
screen away from mount, and lift screen off of mount.
5
To adjust tilt, hold screen securely and loosen tension knob. Push or pull from top or bottom
of screen to adjust tilt, then retighten tension knob. Tilt can be adjusted to a maximum of 15°
forward and 5° backward.

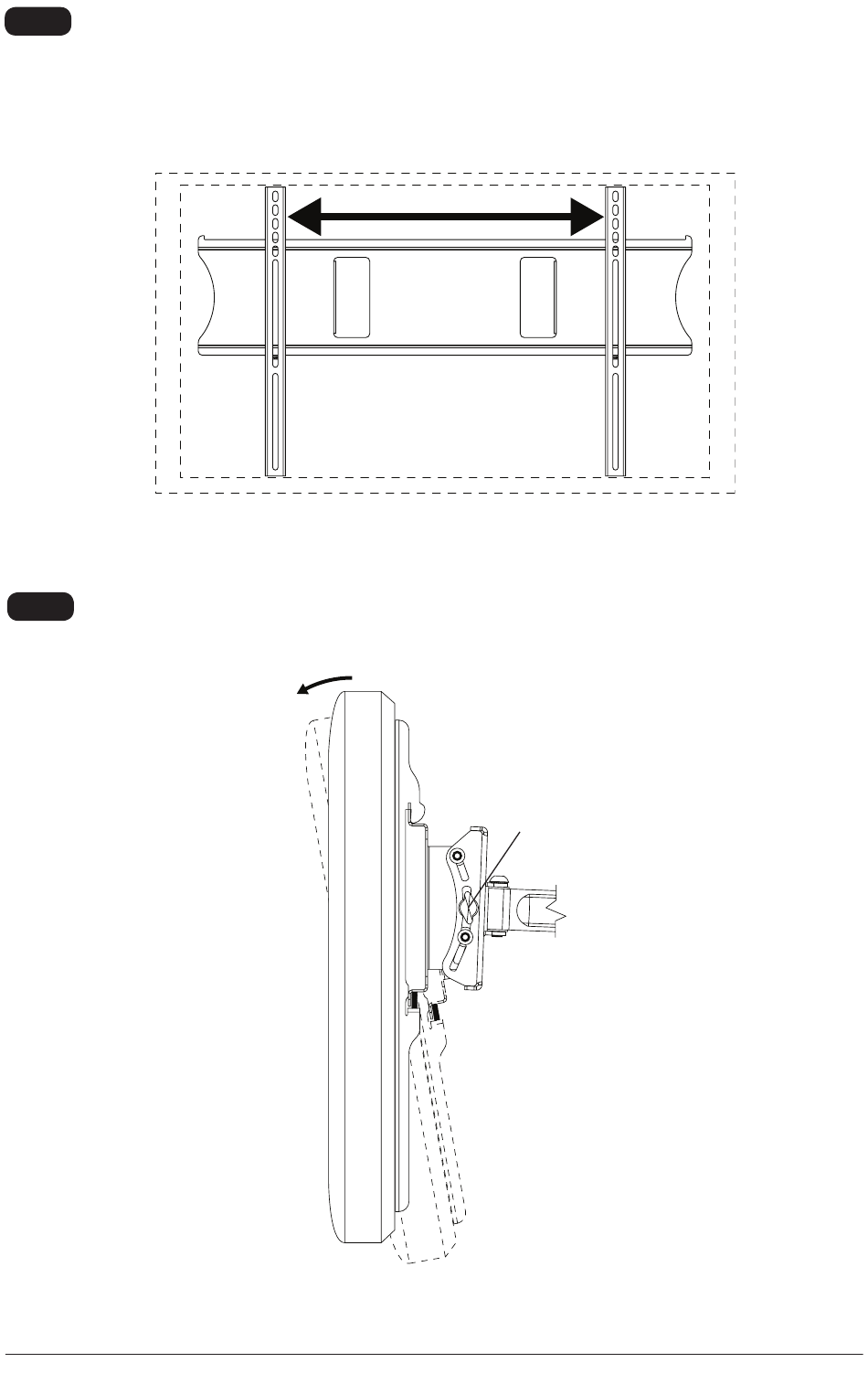

fig. 4.1
TENSION KNOB
9 of 33
ISSUED: 11-02-09 SHEET #: 095-9303-1
