• If screws don't get three complete turns in the screen inserts or if screws bottom out and
bracket is still not tightly secured, damage may occur to screen or product may fail.
For Flat Back Screen
Refer to screen compatibility chart to determine the proper fastener to use. Visit
2-1
www.peerlessmounts.com/2 for a full screen compatibility chart for this mount.
Begin with the shortest length screw, hand thread through multi-washer and adapter
bracket (B) into screen as shown below. Screw must make at least three full turns into the
mounting hole and fit snug into place. Do not over tighten. If screw cannot make three full
turns into the screen, select a longer length screw from the baffled fastener pack. Repeat for
remaining mounting holes, level brackets and tighten screws.
NOTE: Spacers may not be used, depending upon the type of screen.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
For Bump-out or Recessed Back Screen
2-2 Refer to screen compatibility chart to determine the proper fastener to use. Visit
www.peerlessmounts.com/2 for a full screen compatibility chart for this mount.
Begin with longer length screw, hand thread through multi-washer, adapter bracket (B) and
spacer in that order into screen as shown below. Screw must make at least three full turns
into the mounting hole and fit snug into place. Do not over tighten. If screw cannot make
three full turns into the screen, select a longer length screw from the baffled fastener pack.
Repeat for remaining mounting holes, level brackets and tighten screws.
If you have any questions, please call Peerless customer care at 1-800-865-2112.

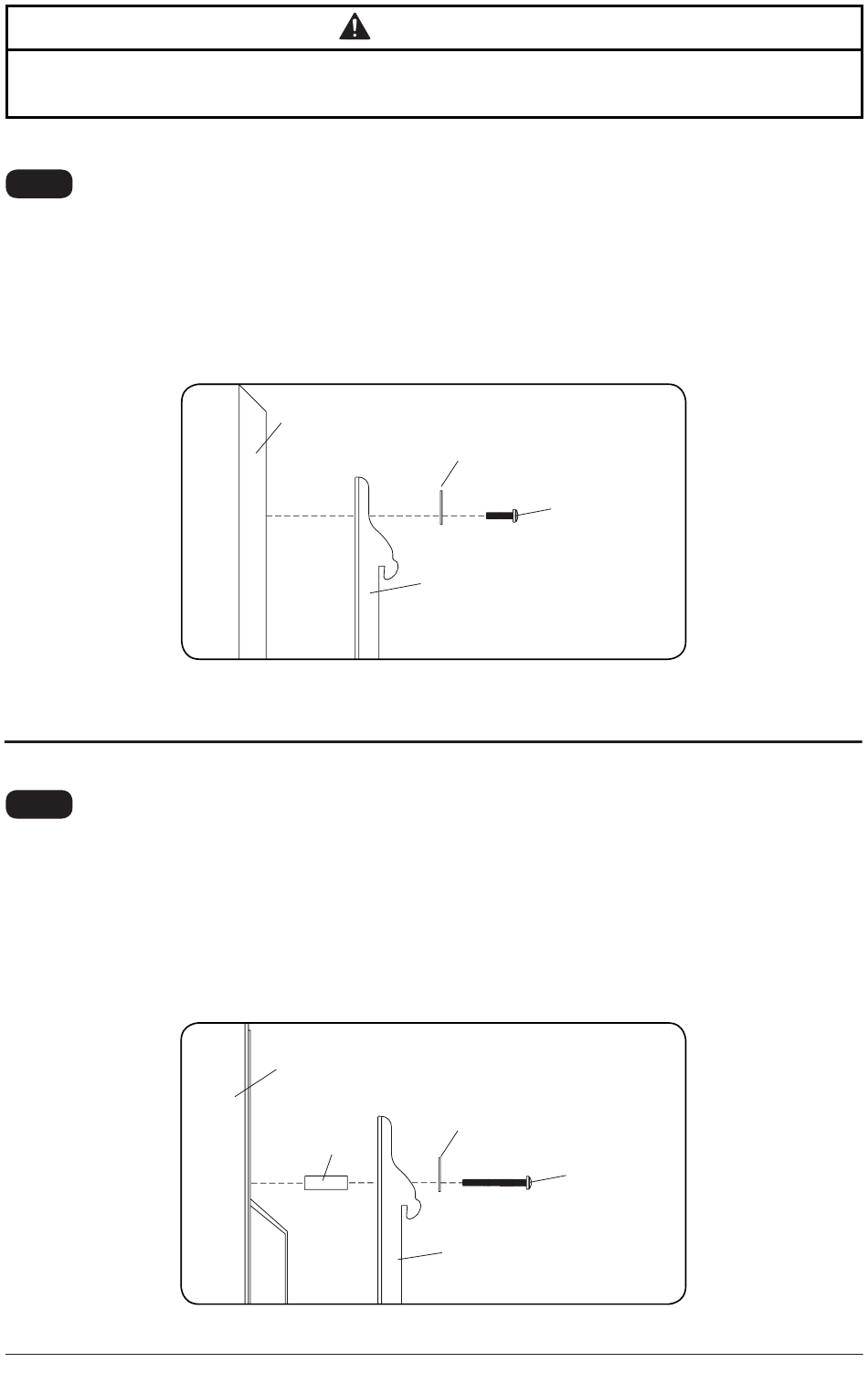

WARNING
SCREEN
ADAPTER BRACKET (B)
SCREEN
SPACER
7 of 33
fig 2.1
MULTI-WASHER
SCREW
fig 2.2
MULTI-WASHER
SCREW
ADAPTER BRACKET (B)
ISSUED: 11-02-09 SHEET #: 095-9303-1
