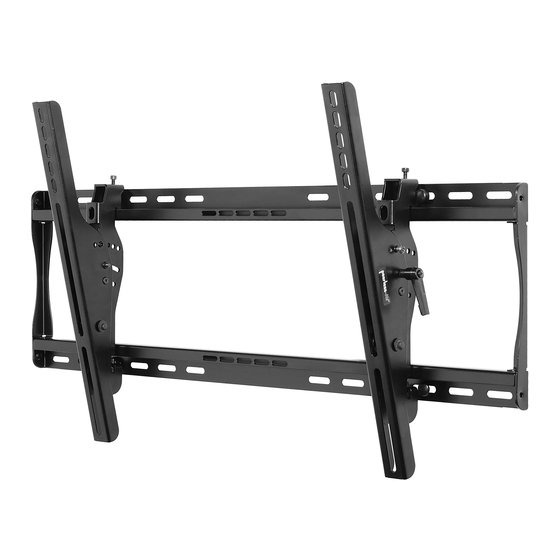

PEERLESS Smartmount ST650 Anbringung Und Zusammenbau

Installation and Assembly:
Smartmount
32" - 50" (81 - 127 cm) Flat Panel Screens
Models: ST650, ST650-S, ST650P, ST650P-S, SWS320/BK, SWS320/SI
Features:
• Open wall plate design allows for additional wall access, increasing electrical
access and cable management options
• Universal screen mounting brackets hook onto the wall plate for quick, easy,
and safe installation
• Adjustable up to 15° of forward tilt and up to -5° backward tilt
• One-touch tilt for effortless adjustment
• Pre-tensioned universal tilt bracket allows for tilt angle adjustment in one
easy motion.
• Easy grip handle locks the screens position into place
• Optional IncreLok feature offers fixed tilts at -5°, 0°, 5°, 10° and 15° incre-
ments
• Includes Sorted-For-You™ fastener pack for installation to wood studs, con-
crete and cinder block
• Optional horizontal adjustment of up to 8" (203 mm) (depending on screen
model) for perfect screen placement
• Available in Black and Silver
®
Universal Tilt Wall Mount for LCD and Plasma
1 of 18
U L
C US
©
Max Load Capacity: 175 lb (79kg)
ISSUED: 02-05-09 SHEET #: 202-9329-1
