Installing to Solid Concrete or Cinder Block
1

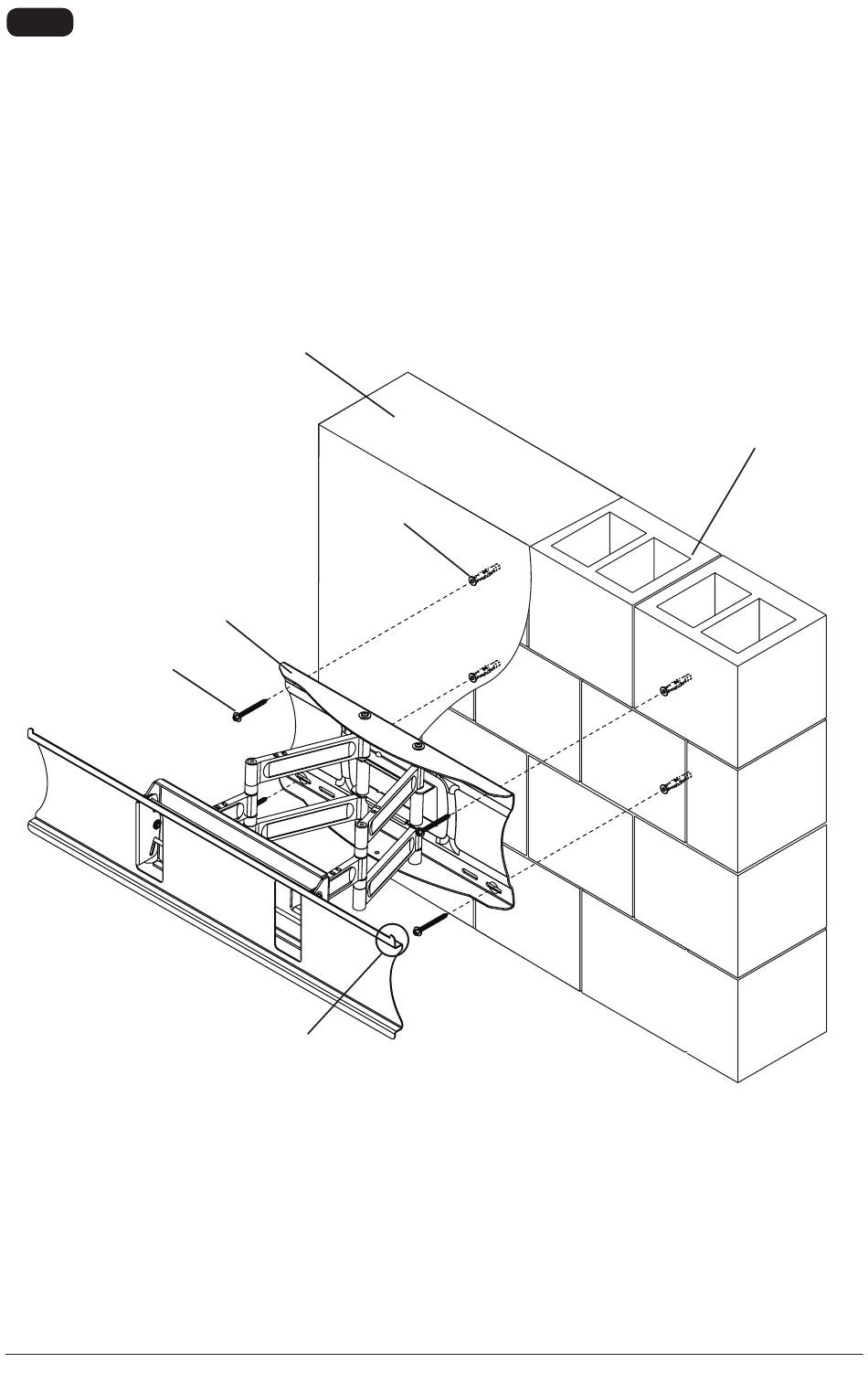

Level wall plate (A) and use as a template to mark four mounting holes. Drill four 5/16" (8 mm) dia.
holes to a minimum depth of 2 1/2" (64 mm). Insert four anchors (D) into holes and secure wall plate
(A) with four screws (C). Tighten screws firmly, but do not overtighten.
SOLID CONCRETE
CINDER BLOCK
D
A
C
FLANGE INDICATES TOP OF MOUNT
