Installing Adapter Brackets
2
To prevent scratching the screen, set a cloth on a flat, level surface that will support the
weight of the screen. Place screen face side down. If screen has knobs on the back, remove
them to allow the adapter brackets to be attached. Place adapter brackets (B) on back of
screen, align to holes, and center on back of screen as shown below. Attach the adapter
brackets to the back of the screen using the appropriate combination of screws, multi-wash-
ers, and spacers as shown in figure 2.1 or 2.2.
NOTE: Top and bottom holes on screen must always be used.
Verify that all holes are properly aligned, and then tighten screws using a phillips screw-
driver.

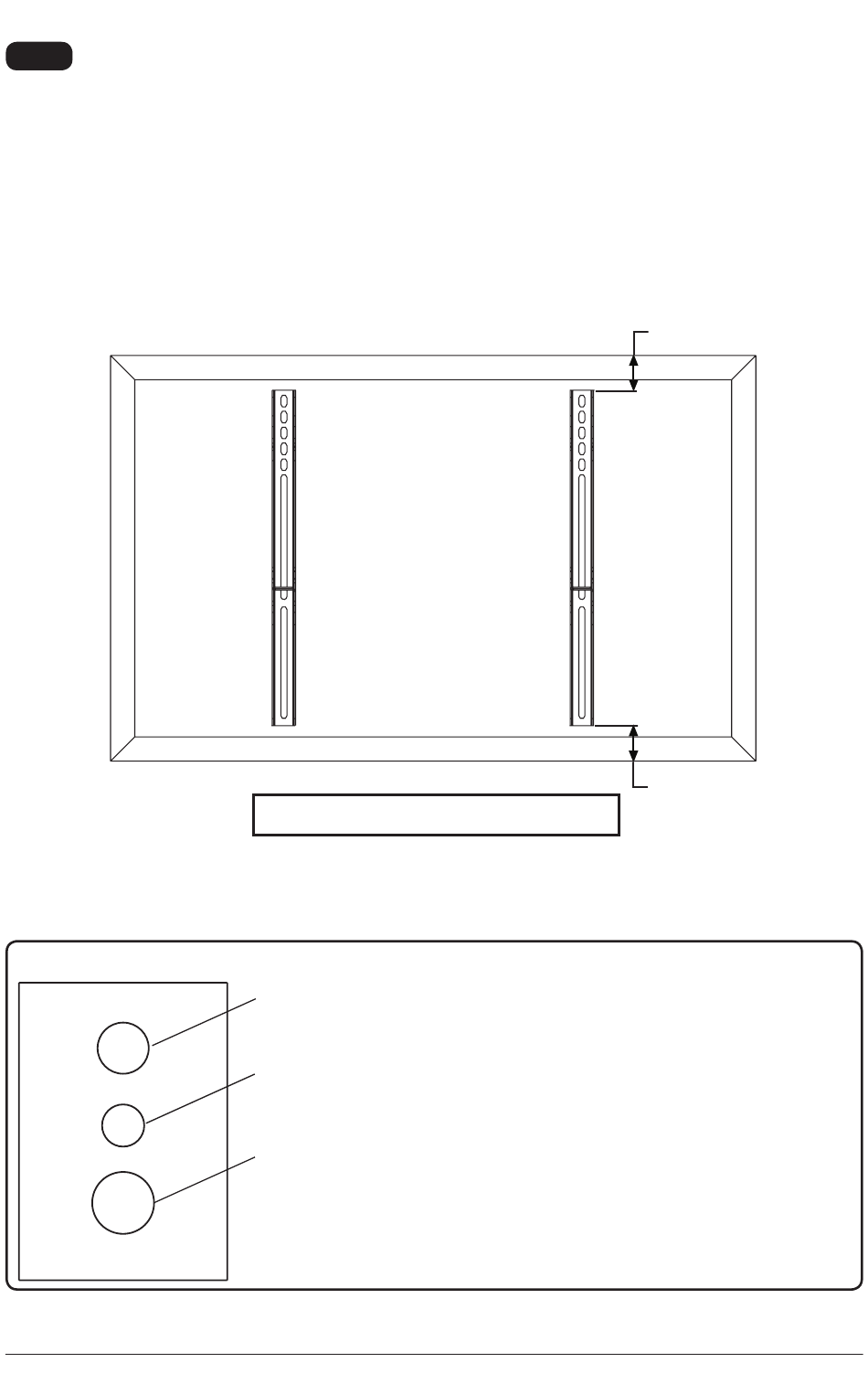

MULTI-WASHER
B
CENTER BRACKETS
VERTICALLY ON BACK
OF SCREEN
NOTE: "X" dimensions should be equal.
MEDIUM HOLE
FOR M5 SCREWS
SMALL HOLE
FOR M4 SCREWS
LARGE HOLE
FOR M6 SCREWS
Notes:
• The number of fasteners used
will vary, depending upon the
type of screen.
• Multi-washers and spacers may
not be used, depending upon
the type of screen.
• Use the corresponding hole in
the multi-washer that matches
your screw size.
6 of 33
X
