Mounting and Removing the Flat Panel Screen
Hook adapter brackets (B) onto wall mount (A) adapter plate. Then slowly swing screen in
3
as shown. Turn safety screw, using allen wrench (T), clockwise at least six times to prevent
screen from being removed as shown in cross section of fig. 3.1. Always use an assistant to
safely lift and position the flat panel screen.
WARNING
Failure to lock brackets (B) with safety
screws can cause sceen to come off mount
if hit accidentally.
SAFETY
SCREWS

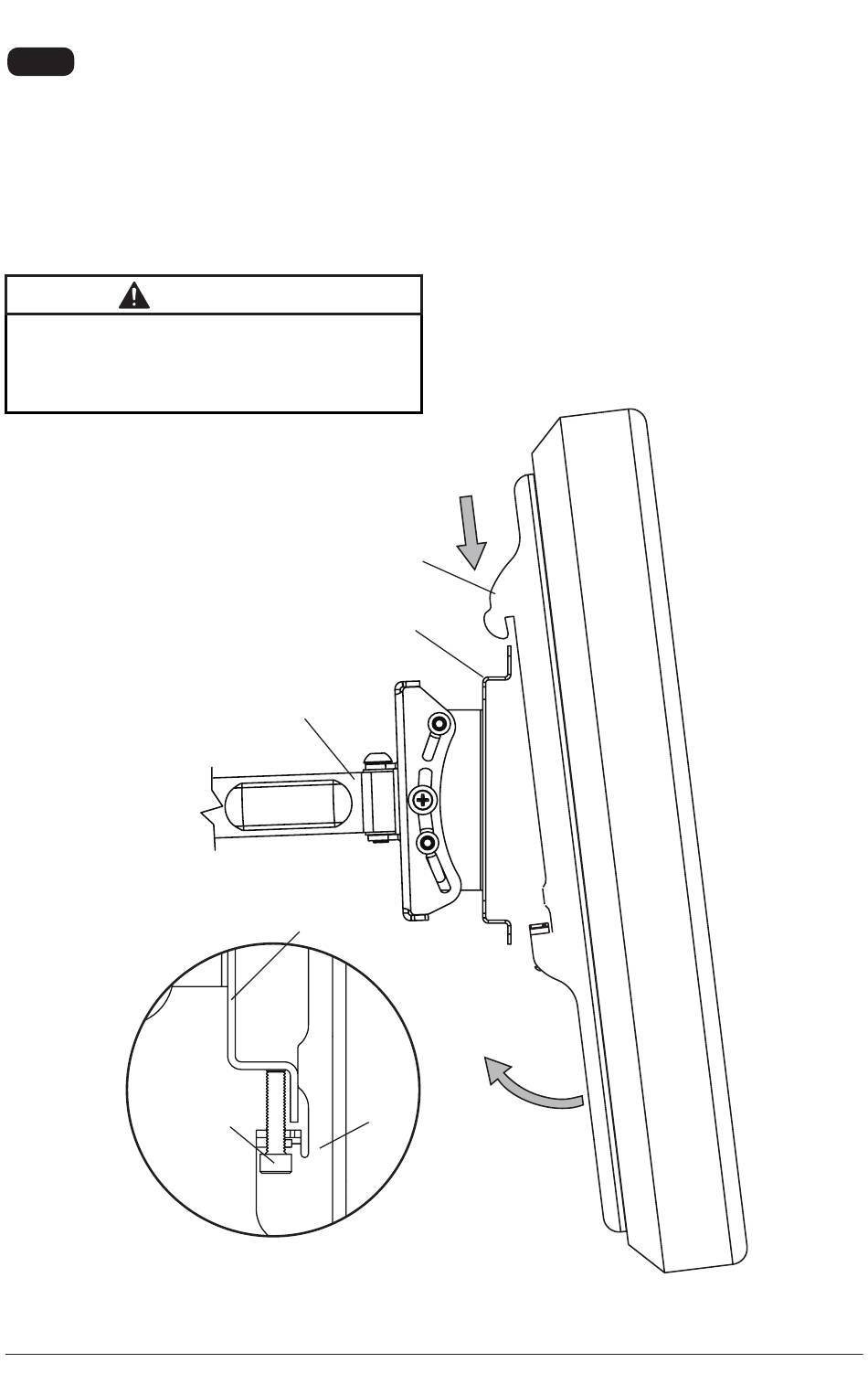

ADAPTER PLATE
WALL MOUNT (A)
ADAPTER PLATE
B
fig 3.1
B
8 of 33
ISSUED: 11-02-09 SHEET #: 095-9303-1
