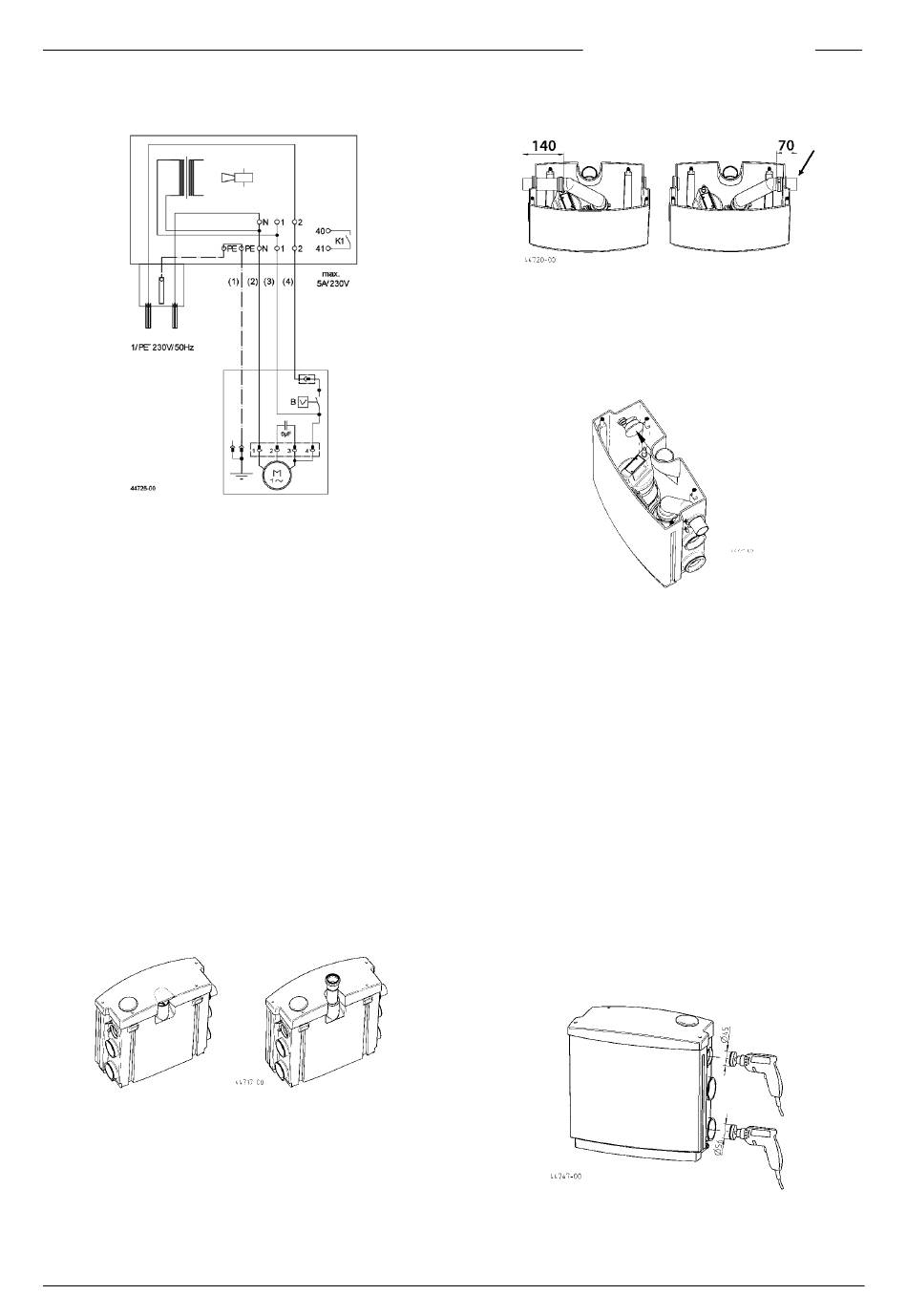

Circuit diagram
B = float switch, colour of wires:
(1) = green/yellow, (2) = brown, (3) = grey, (4) = black

INSTALLATION

The HEBEFIX EXTRA can be mounted in a system duct or can
be used inside a room.
• If it is installed beneath the backup level the pressure pipe
must be taken in a loop over the local backup level according
to EN 12056.
• Each drainage outlet (sink, dishwasher) must be fitted with
an odour seal (siphon trap) in compliance with EN 12056-2.
• In addition, an approved swing-type check valve must be
fitted in compliance with EN 12050-4. This valve is supplied
with HEBEFIX EXTRA.
The tank has in-let connections at the side with a nominal di-
ameter of 50. An inlet with an external diameter of 40 mm can
be fitted inside the lid. The inATTENTIEening merely requires
to be cut out at the position marked.
.
Instructions for the pressure pipe
The pressure pipe is supplied ready mounted on the left-hand
side. If the pressure pipe is required on the right-hand side,
the section of pipe must be shortened by approx. 70 mm. If a
ventilation pipe is not connected when the HEBEFIX EXTRA is
connected directly, the left-hand side must be sealed from the
inside with the sealing plug.
The on-site pressure pipe is connected to the HEBEFIX EXTRA
discharge branch with the arched discharge elbow. The maxi-
mum capacity specified by the manufacturer (see Technical
data) must not be exceeded. Any deviations from this will im-
pair the pumping performance.
The pressure pipe must be laid without a gradient. If a gradient
to the hand-over point is unavoidable, however, then a wider
pipe with larger dimensions must be fitted after the highest
point. This avoids a siphon which could result in malfunctions.
Instructions for tank ventilation
Tank ventilation is essential for the proper functioning of the
system. Before use, the protective foil on the small active car-
bon filter must be removed and the ventilation inserted inside
the lid.
MOUNTING
Open the required connecting branch with a Ø 45 mm / Ø 56
mm keyhole saw and remove the burr. Following insert the en-
closed plug-in seal in the open socket.
ENGLISH
9
