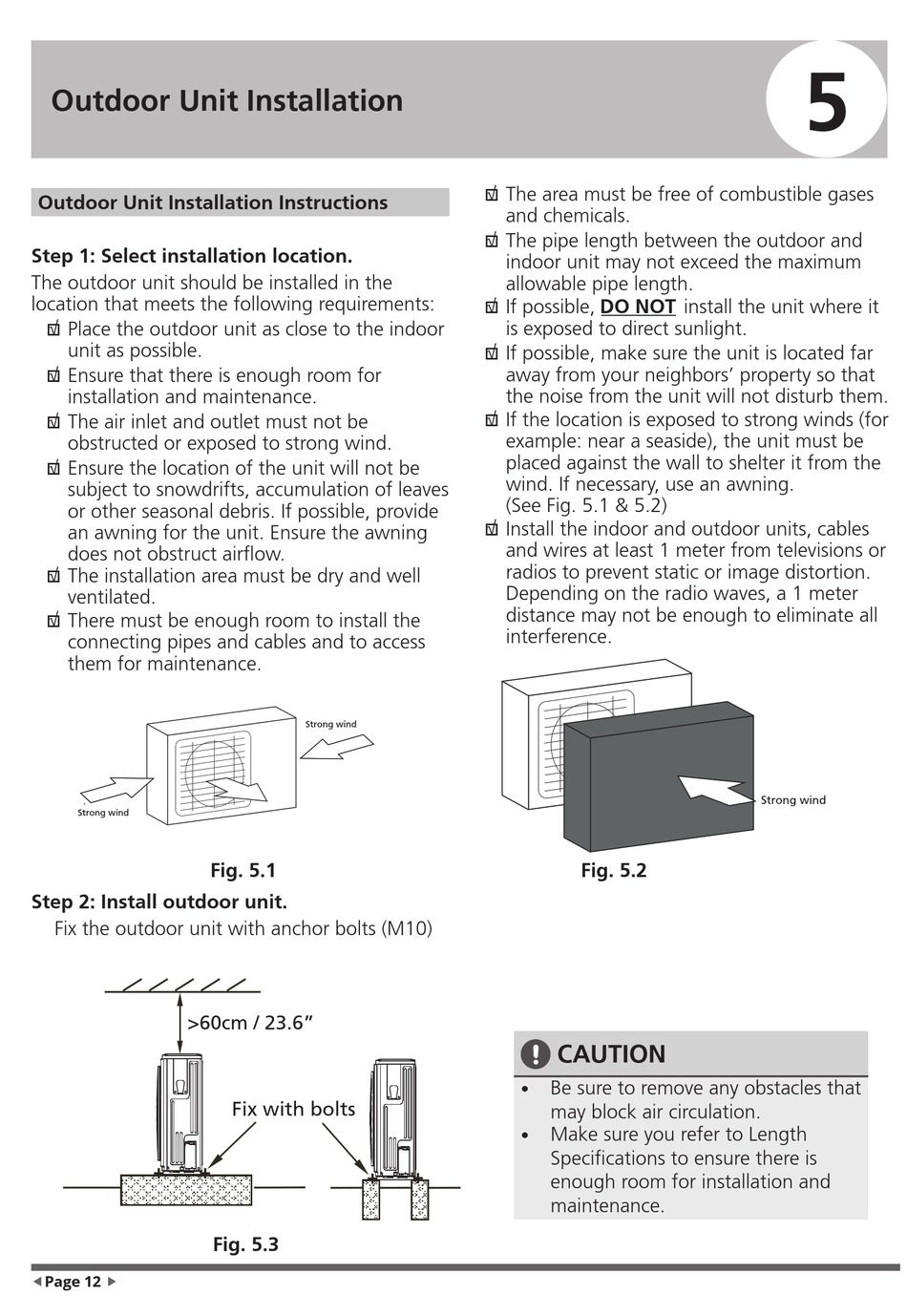

Outdoor Unit Installation

Outdoor Unit Installation Instructions

Step 1: Select installation location.
The outdoor unit should be installed in the
location that meets the following requirements:
√ Place the outdoor unit as close to the indoor
o
unit as possible.
√ Ensure that there is enough room for
o
installation and maintenance.
√ The air inlet and outlet must not be
o
obstructed or exposed to strong wind.
√ Ensure the location of the unit will not be
o
subject to snowdrifts, accumulation of leaves
or other seasonal debris. If possible, provide
an awning for the unit. Ensure the awning
does not obstruct airflow.
√ The installation area must be dry and well
o
ventilated.
√ There must be enough room to install the
o
connecting pipes and cables and to access
them for maintenance.
Strong wind
Step 2: Install outdoor unit.
Fix the outdoor unit with anchor bolts (M10)
>60cm / 23.6"
ƒPage 12 ƒ Page 12 „
„
Strong wind
Fig. 5.1
Fix with bolts
Fig. 5.3
√ The area must be free of combustible gases
o
and chemicals.
√ The pipe length between the outdoor and
o
indoor unit may not exceed the maximum
allowable pipe length.
If possible, DO NOT install the unit where it
√
o
is exposed to direct sunlight.
√ If possible, make sure the unit is located far
o
away from your neighbors' property so that
the noise from the unit will not disturb them.
If the location is exposed to strong winds (for
√
o
example: near a seaside), the unit must be
placed against the wall to shelter it from the
wind. If necessary, use an awning.
(See Fig. 5.1 & 5.2)
√
Install the indoor and outdoor units, cables
o
and wires at least 1 meter from televisions or
radios to prevent static or image distortion.
Depending on the radio waves, a 1 meter
distance may not be enough to eliminate all
interference.
Fig. 5.2
CAUTION
Be sure to remove any obstacles that
•
may block air circulation.
Make sure you refer to Length
•
Specifications to ensure there is
enough room for installation and
maintenance.
5
