Rear view

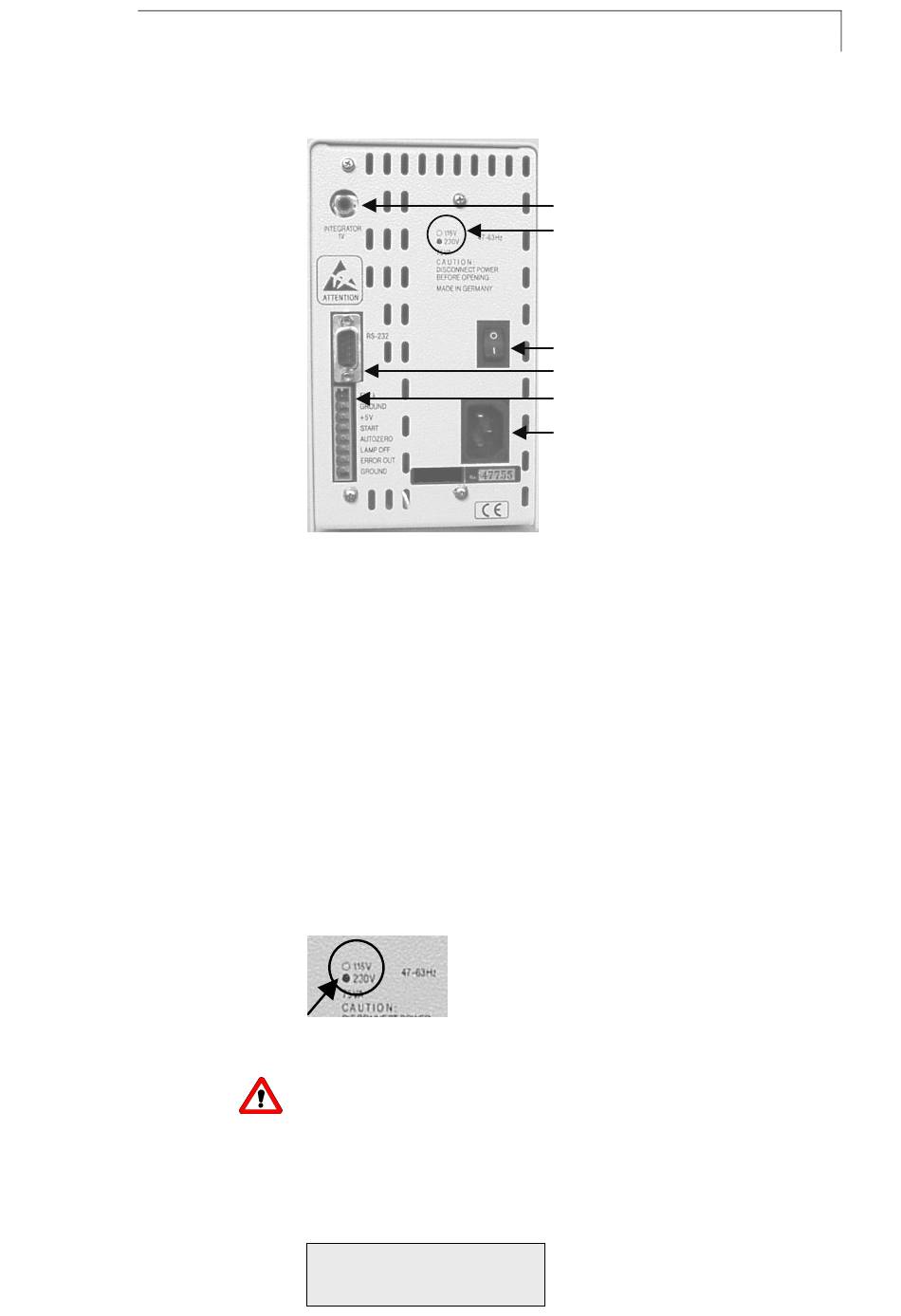

Fig. 3 Rear view of the UV Monitor C-630

Power supply, ON/OFF, Selftest

The UV Monitor C-630 operates with 115 or 230 V AC of 47-63 Hz. The
setting is done by the manufacturer on customers request. The
standard setting is 230 V. If there is on any reasons the need of a
change, please contact our service department. The actual setting is
indicated on the rear panel of the instrument.
Fig. 4
Make sure that the correct voltage has been set on the rear panel
of the instrument, the power supply is grounded and a
corresponding 3-pole power cable is used.
Connect the photometer to the power supply and switch on the instru-
ment. After switching ON the display (item 1 in Fig. 2 on page 6)
presents for a short time information's concerning the instrument
1 Analog output (to recorder or integrator)
2 Indication of the input voltage (see Abb. 4)
3 ON/OFF switch
4 RS-232 Interface
5 Terminal strip Remote connections
6 Power connector
Indication of the input voltage
*BÜCHI C-630
UV Monitor
1
2
3
4
5
6
V 3.1
7
