Front Panel Controls

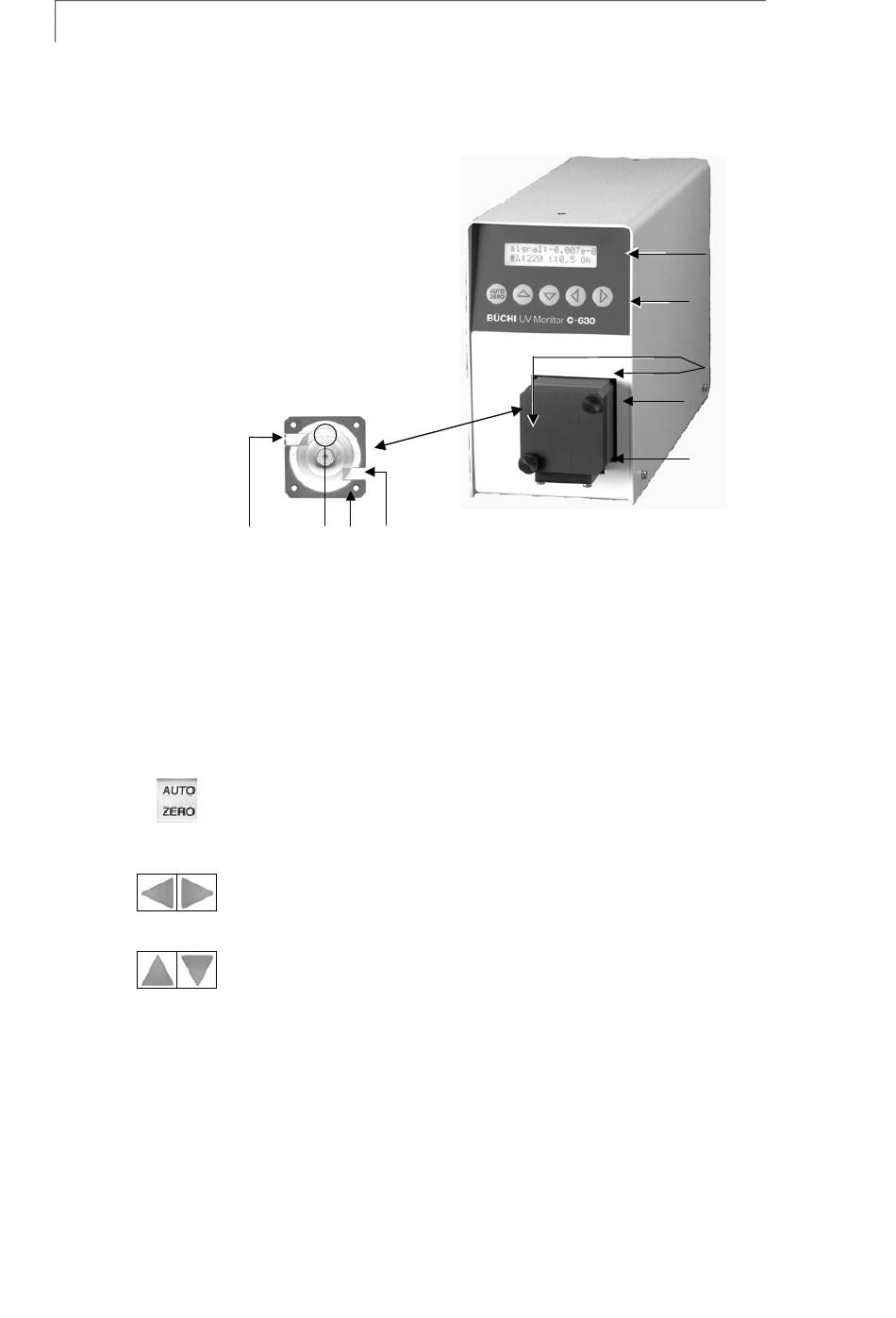

Front View of the UV Monitor C-630

1. Display information
2. Foil Key area
3. Knurled Cell screws
4. Flow Cell housing
5. Flow Cell cradle
6. Outlet
7. Flow Cell
8. Path length of Cell
9. Inlet
10
9 8 7 6
Front Panel Elements of Photometer and Flow Cell

Function of Foil Keys

The Foil Key area (2) in Fig. 2 „Front panel of the UV Monitor C-630"
consists of an AUTOZERO key and four arrow keys.
AUTOZERO
Pushing this button will adjust the baseline. Usually the button should
be pressed shortly before starting a chromatographic run. From any
displayed menus the display returns to the SIGNAL-menu.
Arrow Keys
Use the yellow arrow keys ⊲ „right" or ⊳ "left" to move and to position
the cursor on the display as well as to confirm entered or selected
values.
Use the yellow arrow keys ∆ „up" or ∇ „down" to change the selected
parameter or the available options of it.
