Büchi UV Monitor C-630

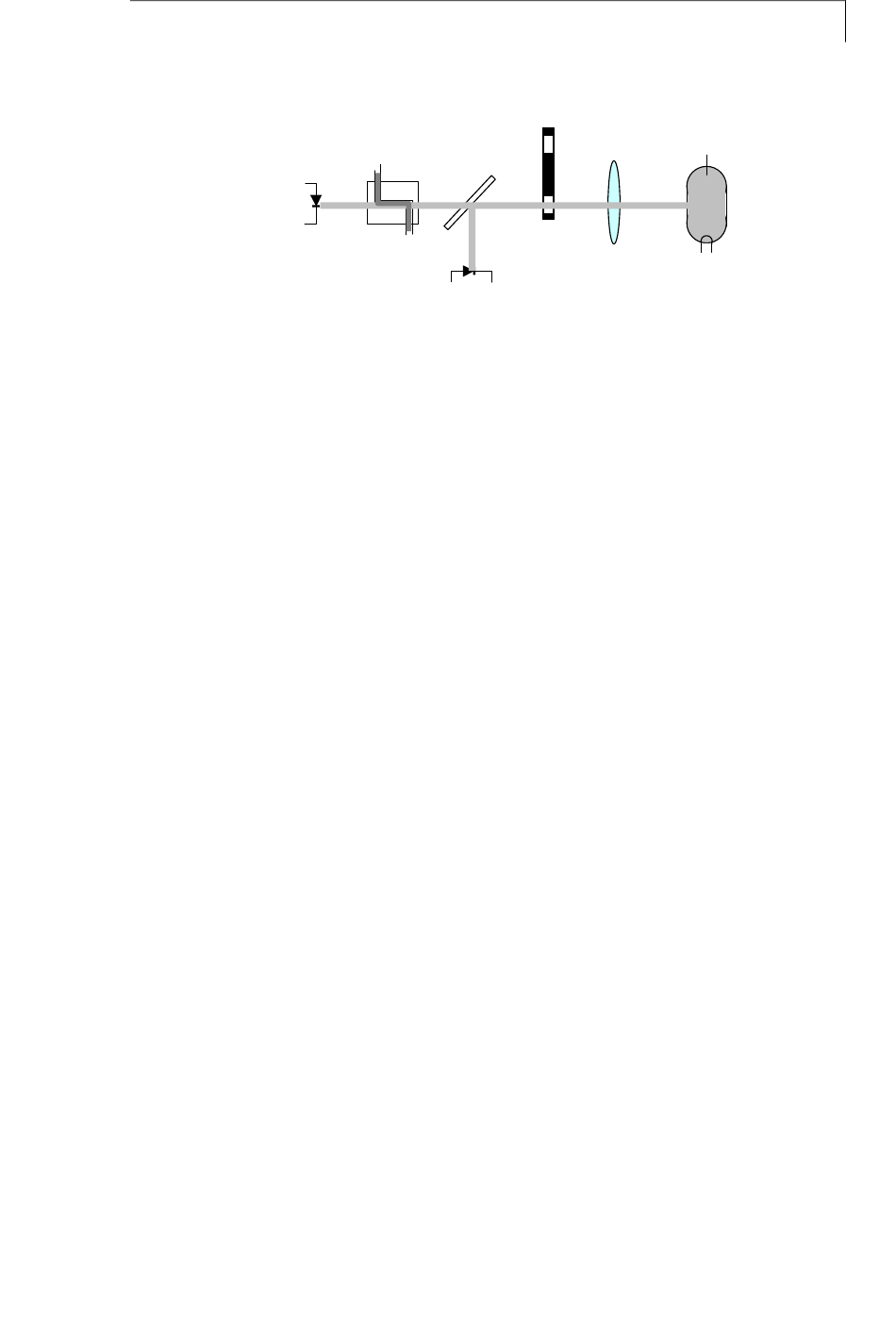

Fig. 1

Optical Path of the UV Monitor C-630

6 5 4
1. Lamp (deuterium or halogen)
3. Exchangeable filter
5. Flow cell
7. Reference photo diode
Optical Path of the UV Monitor C-630
The light emitted from the lamp (1) is focussed by the lens(2). The
exchangeable filter (3) fades out the desired wavelength. The beam is
then splitted by a half transparent mirror (4). One part of the beam
delivers the reference signal (7) and the other after passing the flow cell
(5) the measurement signal (6).

Preparing the UV Monitor C-630 for Operation

Unpacking

After unpacking, please check the device and accessories thoroughly
for any damage that may have occurred during transport. If
necessary, put forward any claims for damages to the carrier.
Use list "Standard delivery" and check that the UV Monitor C-630
delivery is complete. Please contact our service department if you
miss something or if you need support. Please fill out the guarantee
registration card and return it to us immediately.
Remove the protection foils from the display and from the capillary inlet
and outlet respectively.

Standard delivery

UV Monitor C-630 without Cell
Operation Manual
Power Supply Cable 230 V
Integrator Cable
Plug Strips with Connectors
Analog Connection Cable
2
7 3
2. Lens
4. Half transparent mirror
6. Photo diode
5
1
