Vision TC-MATRIX Bedienungsanleitung Seite 5

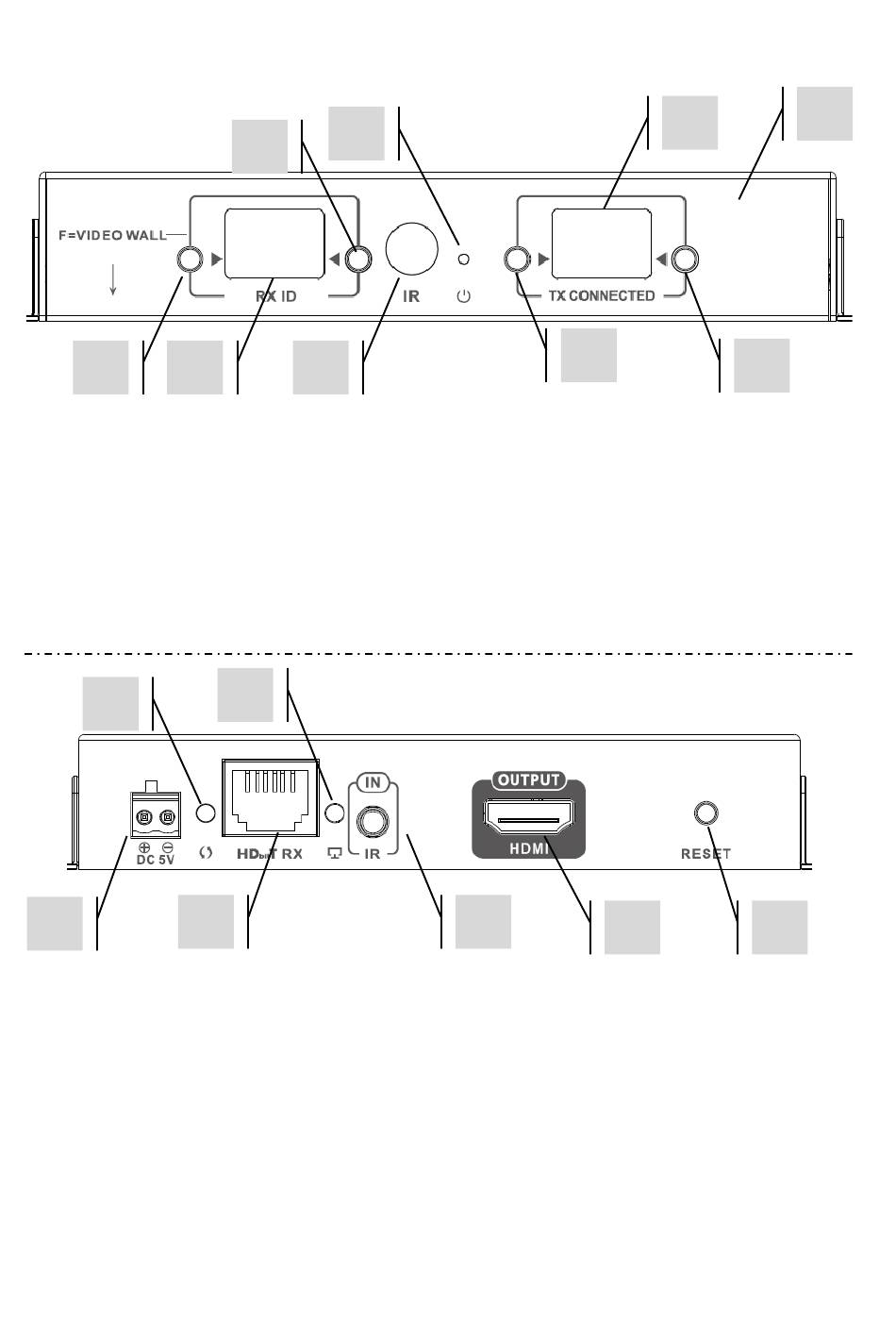

RECEIVER
1 2
1. Channel adjust button
2. Channel display (each Rx in system must be set to different channel)
3. Channel adjust button
4. IR receiver (to switch Matrix channel, not for IR passthrough)
5. Standby indicator
6. TX Channel adjust button
7. TX Channel display (determines which source this Rx will display)
8. TX Channel adjust button
2
1
5V 3A Power input (note device cannot run on PoE)
1.
2. Data transmission indicator
a. Slow flashing; establishing connection
b. Fast flashing; successfully connected and transmitting data
3. CAT5e/6 Input
4. Connection indicator; if no light then not connected to Tx
5. IR Receiver minijack socket (plug IR receiver in here)
6. HDMI Output
7. Reset/restart button
5
3
4
4
3
6
5
6
9
7
8
7
TC-MATRIX_manual_en.doc
5
