VIDEO WALL
Video wall configurations are pre-set. There is no bezel thickness adjustment.

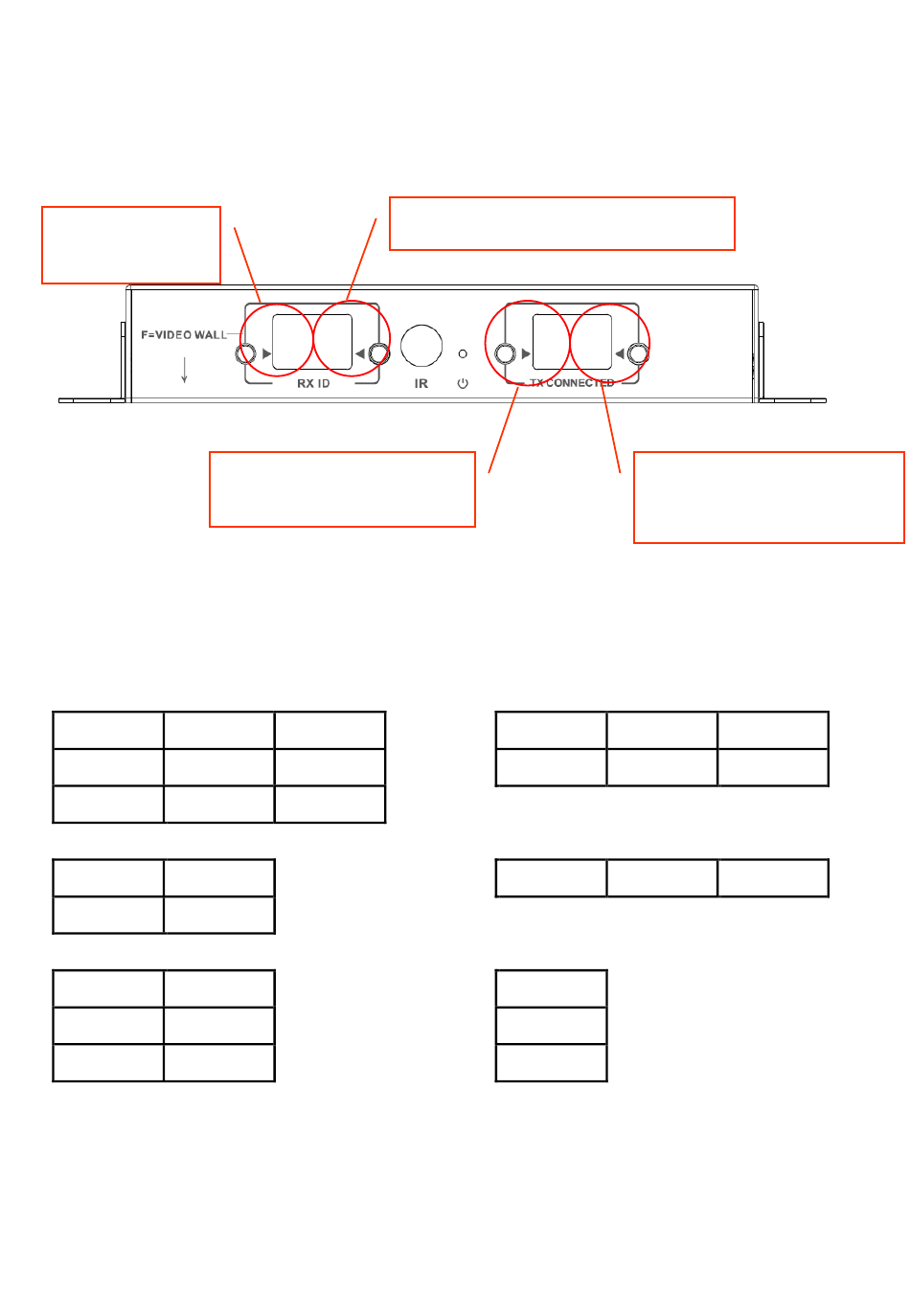

Set channels on receivers:
1/ Set to F for
Video Wall
Note: Video walls can only receive from up to 10 Tx.
Rx Channel Settings:
F1 1x
F1 2x
F1 4x
F1 5x
F1 7x
F1 8x
F2 1x
F2 2x
F2 3x
F2 4x
F3 1x
F3 2x
F3 3x
F3 4x
F3 5x
F3 6x
3/ Determines which
display this is attached to
F1 3x
F1 6x
F1 9x
2/ Determines shape of wall
F4 1x
F4 4x
F5 1x
F6 1x
F6 2x
F6 3x
4/ set which Tx is source
F4 2x
F4 3x
F4 5x
F4 6x
F5 2x
F5 3x
