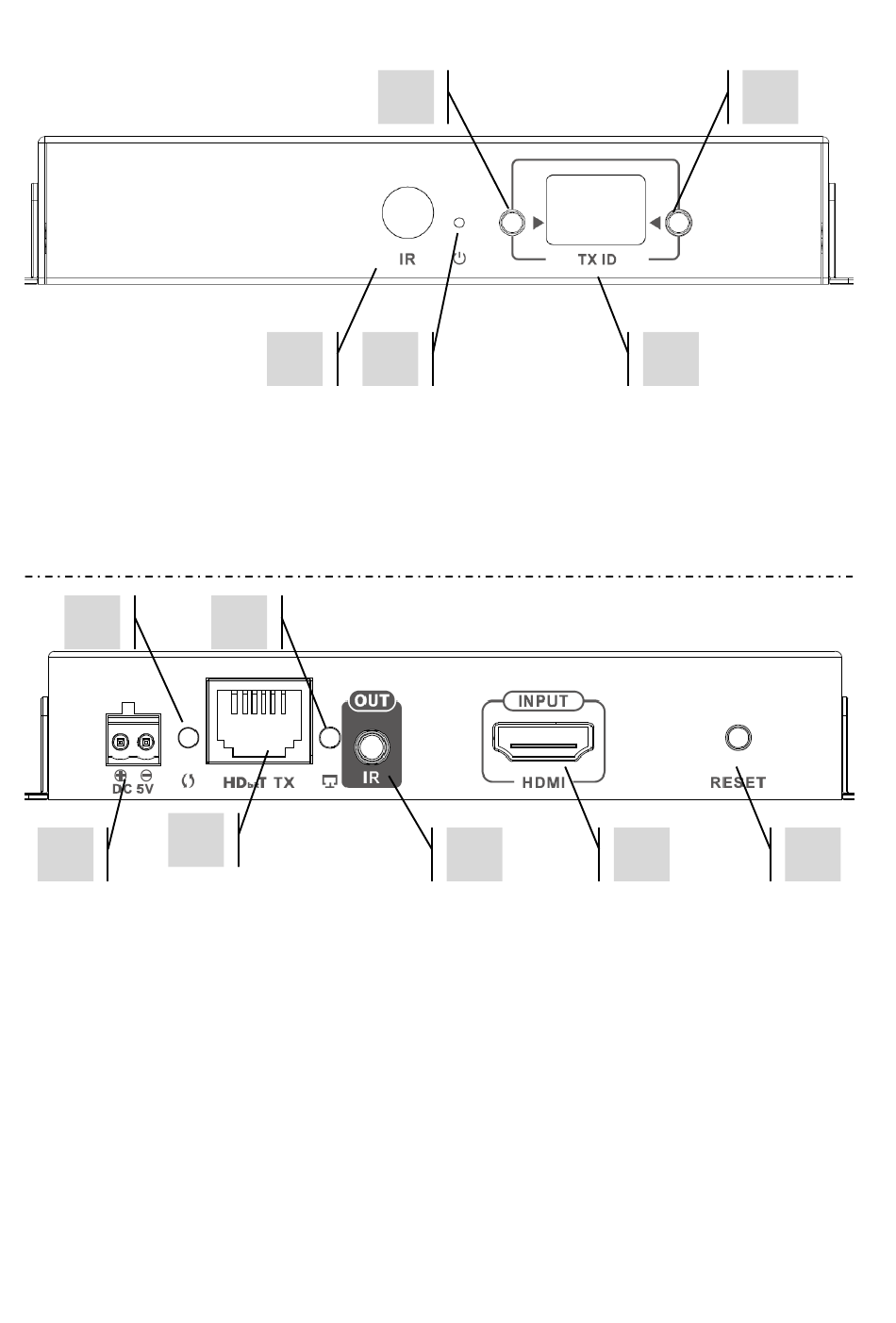

TRANSMITTER
1.
IR receiver (to switch Matrix channel, not for IR passthrough)
2.
Standby indicator
3.
Channel adjust button
4.
Channel display (each Tx in system must be set to different channel)
5.
Channel adjust button
2
3
1
5V 3A Power input (note device cannot run on PoE)
1.
2.
Data transmission indicator
a.
Slow flashing; establishing connection
b.
Fast flashing; successfully connected and transmitting data
3.
CAT5e/6 Output
4.
Connection indicator; if no light then not connected to Rx
5.
IR blaster minijack socket (plug IR blaster in here)
6.
HDMI Input
7.
Reset/restart button
3
1
2
4
5
6
5
4
7
