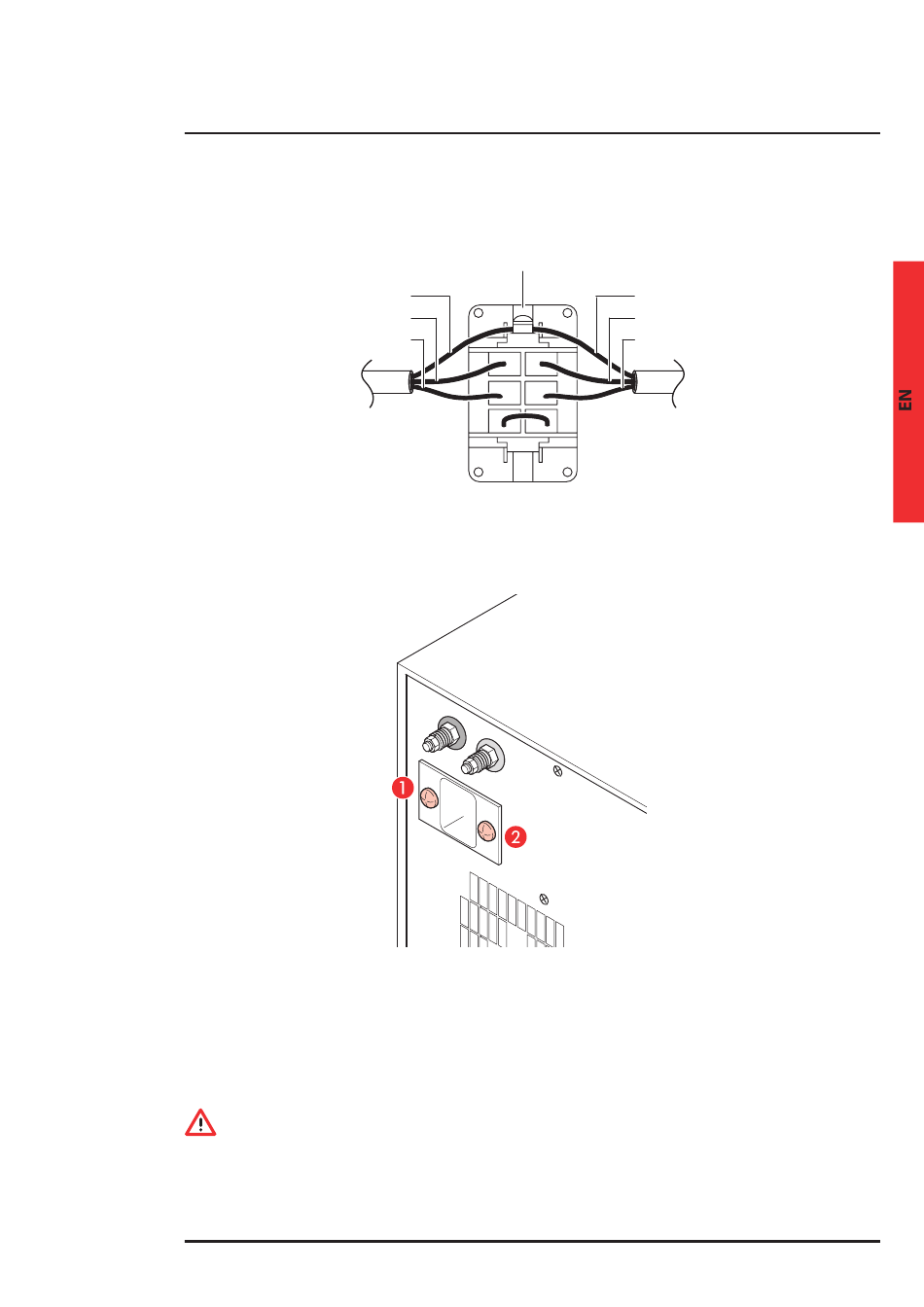

Input-output connector - Side with insertion of wires
Fig. 4
Terminals.
3.5

Presetting for the expansion of autonomy

Fig. 5
Procedure
Operative.
Your UPS is complete with presetting for the connection of additional battery cabinets. One or more extra battery cabinets
can be fitted to a single cabinet UPS as follows:
1. Unscrew screws 1 and 2 shown in figure 5.
2. Slide the protective casing that the connectors located inside the box are completely accessible.
3. Tighten the screws to secure the metal protection.
4. Connect the battery cabinet to the UPS using the dedicated cables.
5. Use the plaited conductor supplied to safeguard a good contact with earth.
ATTENTION
Make sure the UPS has been switched off and disconnected from the mains supply before proceeding with connections.
Yellow-green wire
Brown wire
Blue wire
Output cable
(to load)
Terminal n°1 PHASE OUTPUT
Terminal n°2 NEUTRAL OUTPUT
Earth connection
Yellow-green wire
Blue wire
Brown wire
1 4
2 5
3 6
Terminal n°4 NEUTRAL OUTPUT
Terminal n°5 PHASE OUTPUT
Megaline Rack
Input cable
(to the mains
electricity supply)
