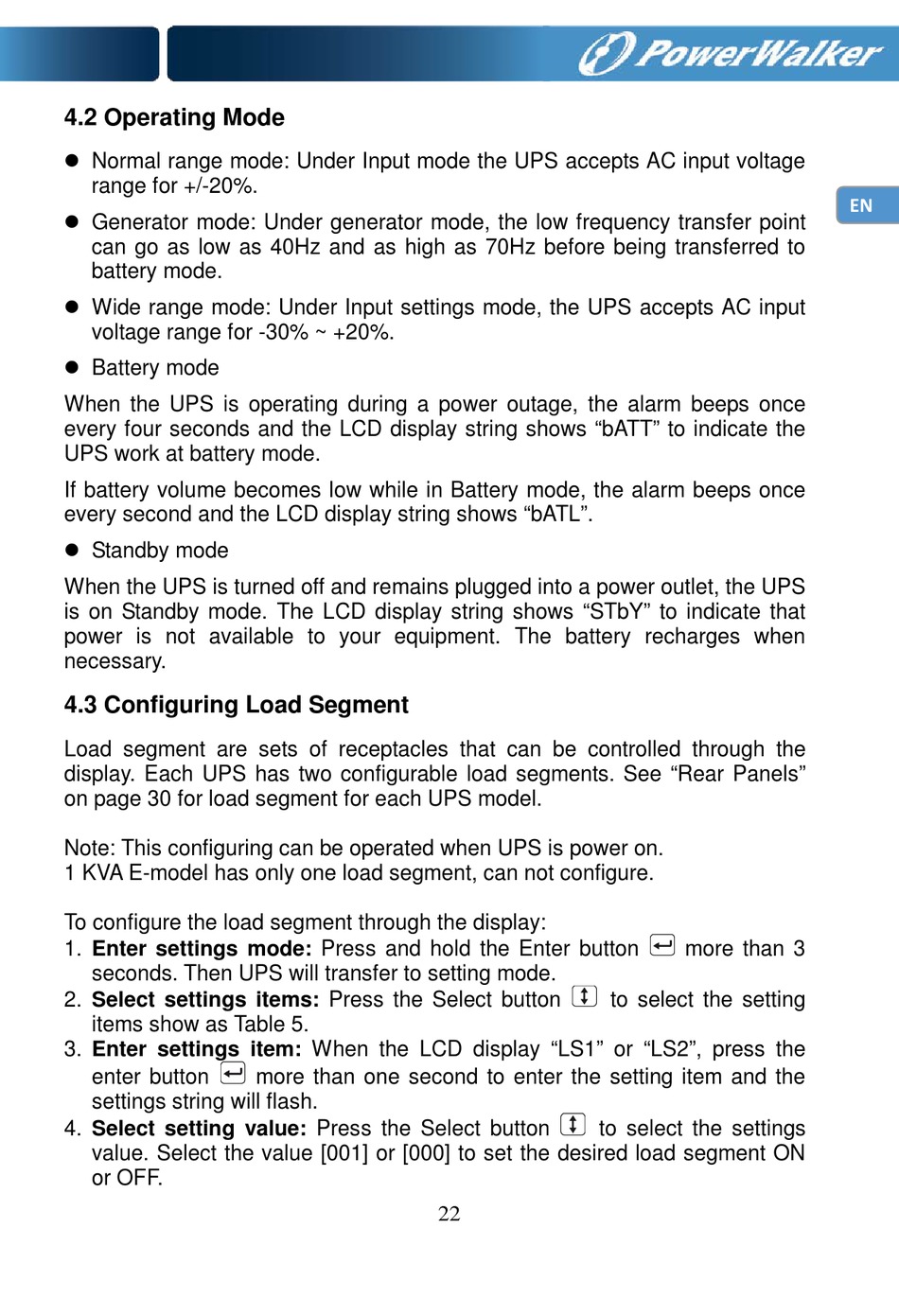

4.2 Operating Mode

 Normal range mode: Under Input mode the UPS accepts AC input voltage
range for +/-20%.
 Generator mode: Under generator mode, the low frequency transfer point
can go as low as 40Hz and as high as 70Hz before being transferred to
battery mode.
 Wide range mode: Under Input settings mode, the UPS accepts AC input
voltage range for -30% ~ +20%.
 Battery mode
When the UPS is operating during a power outage, the alarm beeps once
every four seconds and the LCD display string shows "bATT" to indicate the
UPS work at battery mode.
If battery volume becomes low while in Battery mode, the alarm beeps once
every second and the LCD display string shows "bATL".
 Standby mode
When the UPS is turned off and remains plugged into a power outlet, the UPS
is on Standby mode. The LCD display string shows "STbY" to indicate that
power is not available to your equipment. The battery recharges when
necessary.

4.3 Configuring Load Segment

Load segment are sets of receptacles that can be controlled through the
display. Each UPS has two configurable load segments. See "Rear Panels"
on page 30 for load segment for each UPS model.
Note: This configuring can be operated when UPS is power on.
1 KVA E-model has only one load segment, can not configure.
To configure the load segment through the display:
1. Enter settings mode: Press and hold the Enter button
seconds. Then UPS will transfer to setting mode.
2. Select settings items: Press the Select button
items show as Table 5.
3. Enter settings item: When the LCD display "LS1" or "LS2", press the
enter button
settings string will flash.
4. Select setting value: Press the Select button
value. Select the value [001] or [000] to set the desired load segment ON
or OFF.
more than one second to enter the setting item and the
to select the settings
22
more than 3
to select the setting
