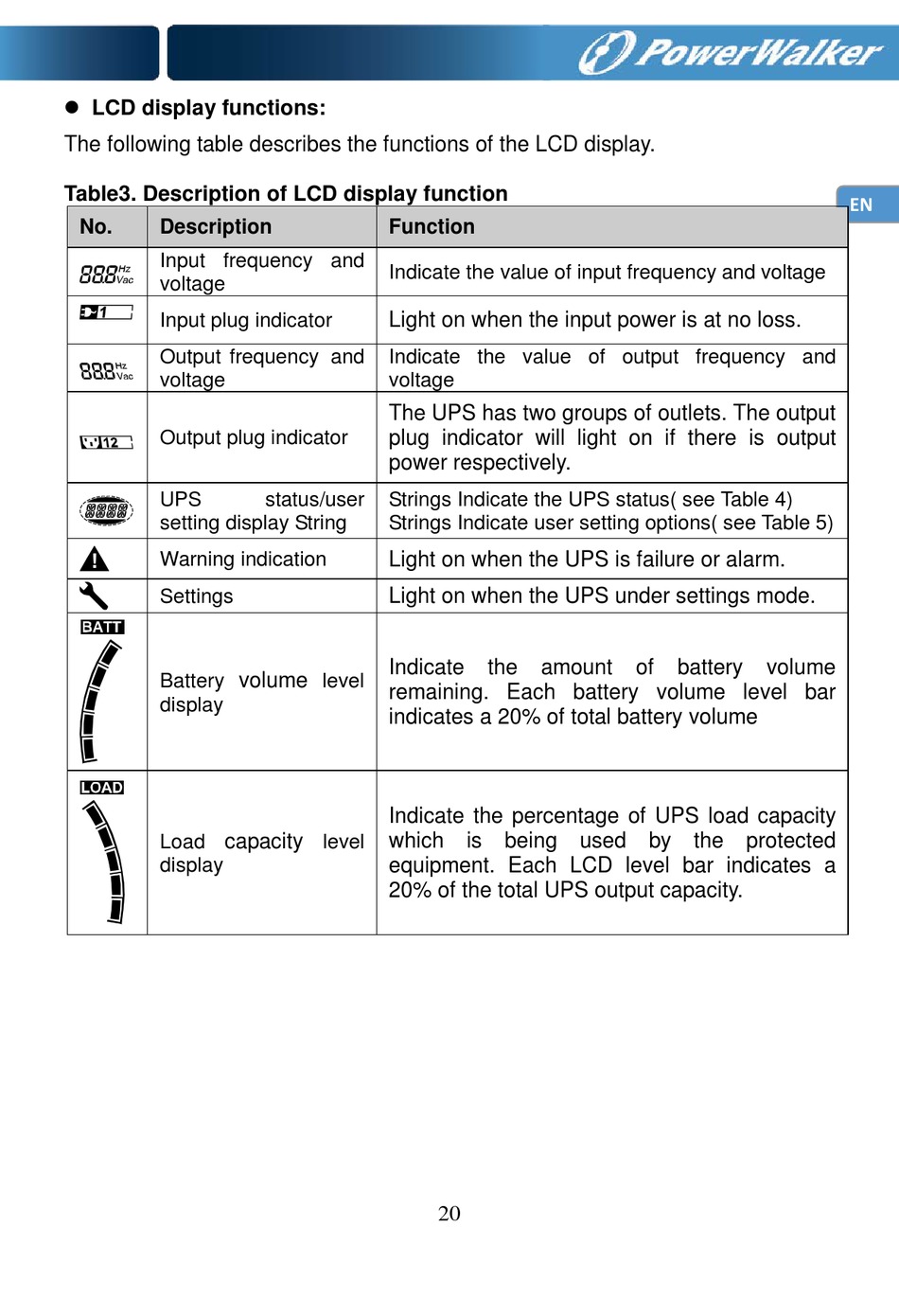

 LCD display functions:
The following table describes the functions of the LCD display.
Table3. Description of LCD display function
No. Description
Input frequency and
voltage
Input plug indicator
Output frequency and
voltage
Output plug indicator
UPS
setting display String
Warning indication
Settings
Battery
display
Load capacity
display
Function
Indicate the value of input frequency and voltage
Light on when the input power is at no loss.
Indicate the value of output frequency and
voltage
The UPS has two groups of outlets. The output
plug indicator will light on if there is output
power respectively.
status/user Strings Indicate the UPS status( see Table 4)
Strings Indicate user setting options( see Table 5)
Light on when the UPS is failure or alarm.
Light on when the UPS under settings mode.
Indicate
volume
level
remaining. Each battery volume level bar
indicates a 20% of total battery volume
Indicate the percentage of UPS load capacity
which
level
equipment. Each LCD level bar indicates a
20% of the total UPS output capacity.
the amount
is being used
20
of battery volume
by the protected
