6.

Technical data

Camera/External unit DRC-2BAN
Image sensor
Temperature range
Dimensions
Max. Distance Camera - Monitor
Monitor/Receiver DPV-2ME
Diagonal
Dimensions
Power consumption
Wiring
Test certification
Rights reserved for technical and optical changes without notice
Safety note:
Please use the monitor and the camera only in dry rooms and do
not expose them to dripping or spraying water. In addition please
ensure that the ventilation openings are not covered by any
objects, e.g., normal and net curtains. The external stations
should be mounted in as protective a manner as possible and not
be subjected to extreme environmental conditions.
7.
Accesories
Monitor Internal device
DPV-2ME DP-2VS
Art. No.: 008601 Art. No.: 008649
1/3" CCD b/w
-10°C to +40°C
approx. H 18,7 x W 12,3 x D 1,7 cm
approx. 100 m using 0,8 mm 2
4" b/w
approx. H 22,8 x W 19,5 x D 6,8 cm
approx. 24 W / 5 W standby
2 wires (available bell wire)
+ optionally 2 wires for door opener
TÜV/GS, CE
Gong Door opener +
power supply
DC-2D
Art. No.: 009479A various designs
can be supplied as
system accessories

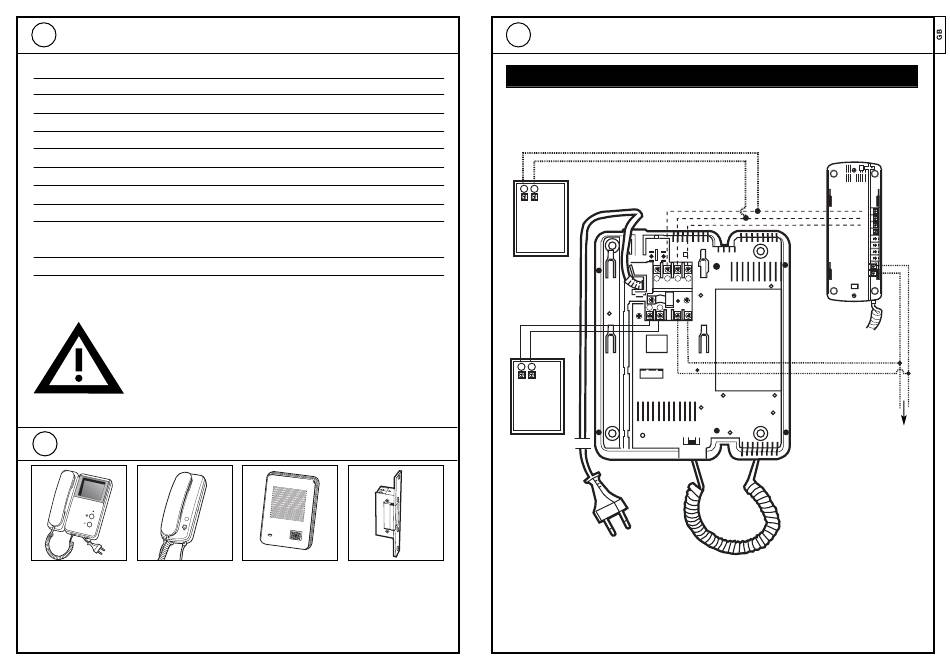

8.
Accessories connections
Option 1: camera + 1 monitor + wall telephone + gong
1 2
Externeral
gong
1 2 3
DC-2D
1 2
1 2
Camera/
External divice
Monitor
DRC-2BAN
DPV-2ME
Power plug
The connection of the door opener and the power supply unit
can be found under (5) Wiring
Internal device
DP-2VS
1
2
3
4
S1
S2
4
Power plug
To door opener
