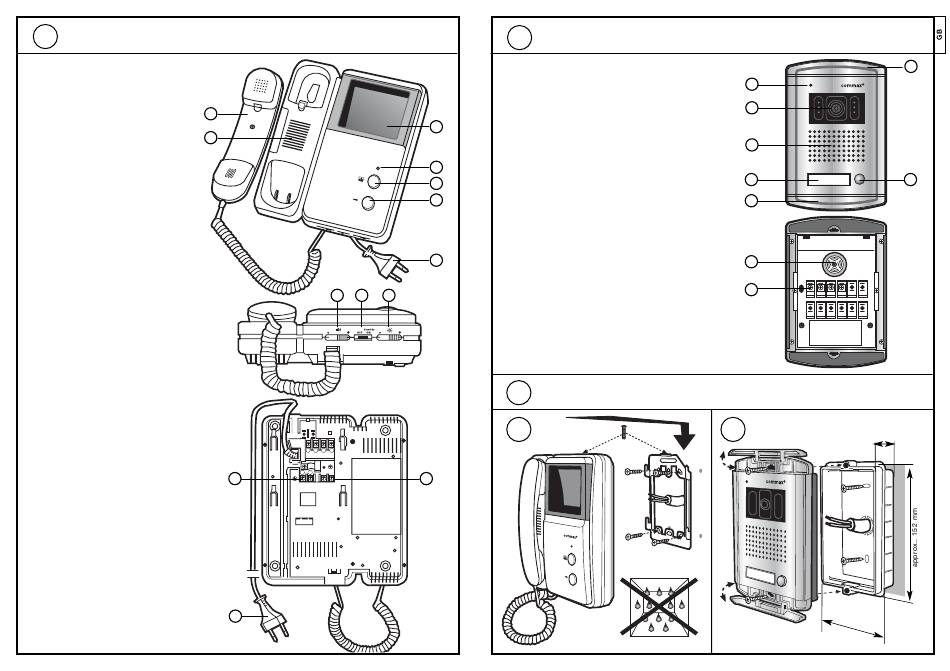

GEV ComBoy commax DPV-2ME Montageanleitung Seite 7

1.
Technical equipment
1.) Receiver
Enables verbal contact with
the door station
1
2.) Speaker
Gong chimes 2 x, when a visitor
2
presses the call button on the
external unit
3.) Monitor
B/W format 4"
4.) Oparation display
Lights when system is in a state
of readiness
5.) Monitor button
Pressing switches on the external
camera and the picture is
transmitted to the monitor
6.) Door opener
Button to open door
7.) Power supply plug
To connect the unit to the power
supply system
(230 V alternating current)
8.) Gong volume control
9.) On/OFF switch
For the video door intercom system
10.) Brightness control
To adjust the monitor brightness
11.) Connection terminals
For camera DRC-2BAN
12.) Connection terminals
For the door opener (option)
DPV-2ME
8 9 10
1 2 3 4
1 2
11
7
1a
Technical equipment
1.) Microphone
2.) Camera lens
1,3" CCD b/w
3.) Speaker
3
Audio receiver for door station
4.) Illuminated name plate
4
5.) Cover flaps
5
To conceal the flush-with-wall
housing fasteners
6
6.) Call button
Simultaneously activates bell chime
and camera
(Picture displayed on monitor)
7
7.) Horizontal and vertical camera
adjustment control
8.) Connection terminals
For wiring to the monitor DPV-2ME
2.
Assembly
2a
12
DRC-2BAN
1
2
3
4
5
7
8
1 2 3 4 5 6
7 8 9 10 11 12
2b
approx. 40 mm
approx.. 98 mm
5
6
