GEV ComBoy commax DPV-2ME Montageanleitung Seite 8

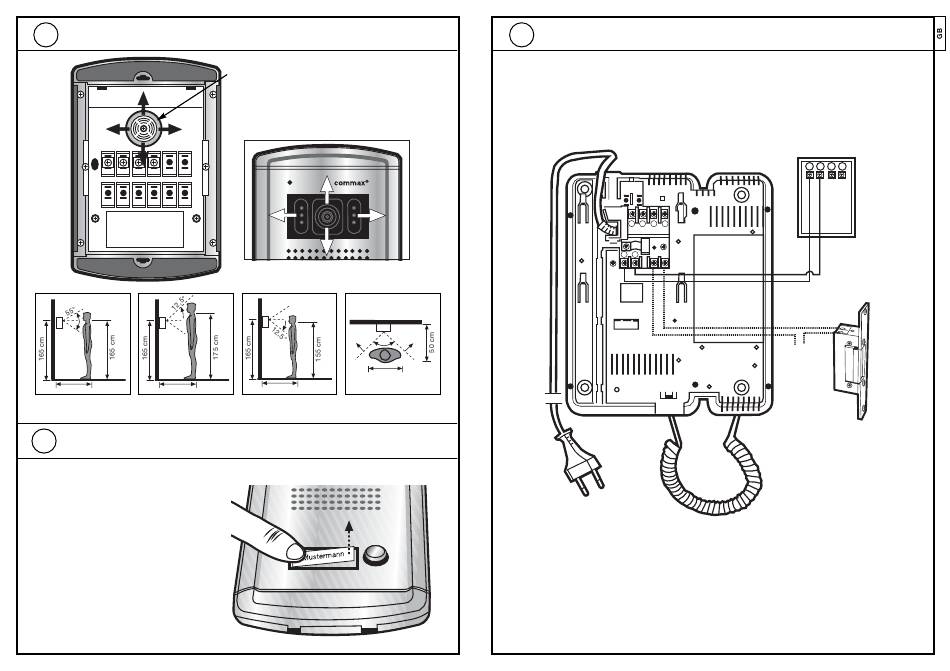

3.
Setting the camera
1 2 3 4 5 6
7 8 9 10 11 12
50 cm 50 cm
Normal position upwards inclination
4.
Name plate cover
The name plate cover can be exchan-
ged by pressing down one side of the
cover
Then pull the plastic cover upwards
and out. Replace the cover by rever-
sing the procedure.
DRC-2BAN
The lens / LED element can be positioned
by swiveling upwards, downwards or
sideways in order to set the camera
angle.
68°
12,5° 12,5°
46 cm
50 cm
Downwards inclination Lateral exposure angle
5.
Wiring
Monitor
DPV-2ME
1 2 3 4
1 2
Power plug
Camera/External divice
DRC-2BAN
1 2 3 4
External
power
supply unit
(option)
Door opener
(option)
