GEV ComBoy commax DPV-2ME Montageanleitung Seite 10

8a

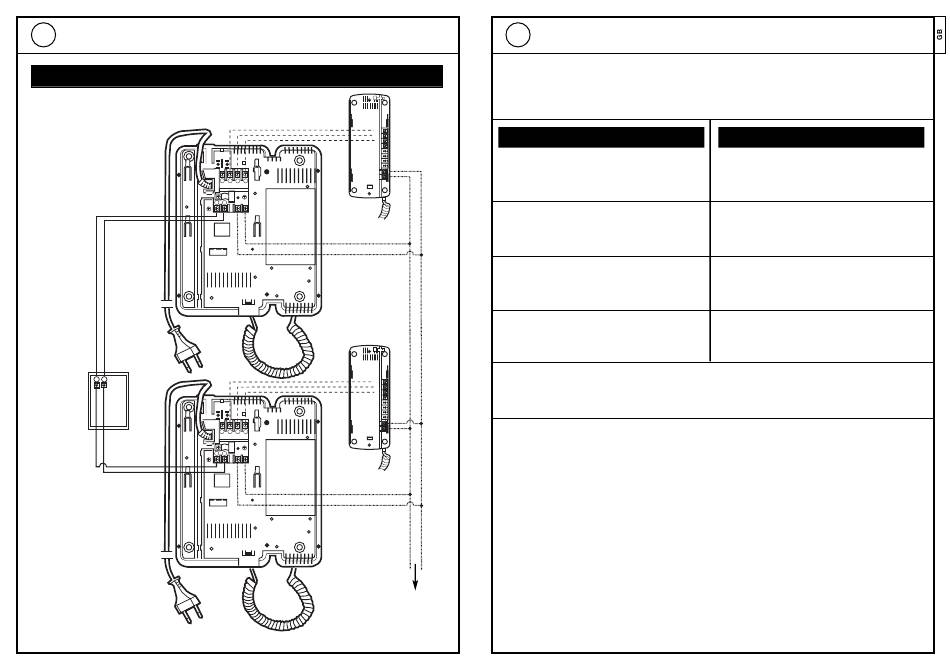

Accessories connections
Option 2: camera + 2 monitors + 2 wall telephones
Monitor
DPV-2ME
Power plug
1 2
Camera/
External
divice
DRC-2BAN
Monitor
DPV-2ME
as an extension
The connection of the
door opener and the
power supply unit
can be found under (5)
Wiring Power plug
1
2
3
4
S1
S2
1 2 3 4
1 2
Power plug
Internal
device DP-2VS
as an extension
1
2
3
4
S1
S2
1 2 3 4
1
2
Power plug
To door opener
9.
Information regarding possible malfunctions
Please read and observe the following instructions prior to returning the video
door intercom system to your local technical shop in case of a malfunction.
Internal
Malfunction
device
DP-2VS
Unit switched off
(Operating display OFF)
Unit switched off
(Operating display shining dim)
Chime and audio connection correct,
monitor activated, but nno image
Chime and audio connection correct,
but no video signal
If the monitor image is running from the top towards the bottom, please equip
yourself with a small screwdriver. There is a small opening at the top of the
monitor housing through which the monitor image can be set
Possible cause
Power supply plug not plugged in cor-
rectly and/or power supply system bre-
akdown ON/OFF switch in OFF position
Short-circuit in the connection cable
between the monitor and the external
camera
Brightness control set incorrectly.
Lens covered by dirt, foliage, etc.
Defective camera or monitor
