Inhaltszusammenfassung für GEV ComBoy commax DPV-2ME
Seite 1
M O N TA G E ComBoy Video-Türsprechanlage 1 Familienhaus-Set mit Unterputzkamera Type: 008434 bestehend aus: 1 x Monitor: DPV-2ME 1 x Außenkamera: DRC-2BAN...

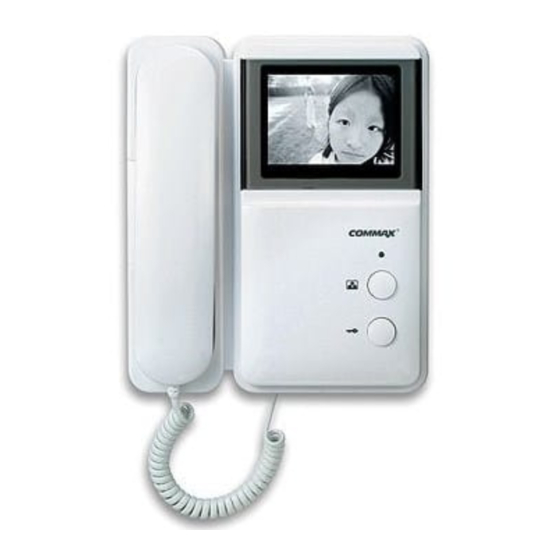

Technische Ausstattung Technische Ausstattung DPV-2ME DRC-2BAN 1.) Hörer 1.) Mikrofon Ermöglicht die Sprachverbindung 2.) Kameraobjektiv mit der Türstation 1,3” CCD s/w 2.) Lautsprecher 3.) Lautsprecher Gong ertönt 2x, wenn ein Sprachübertragung an die Türstation Besucher die Ruftaste an der 4.) Beleuchtetes Namensschild Außeneinheit betätigt 5.) Abdeckklappe 3.) Monitor...
Verdrahtung Einstellung der Kamera DRC-2BAN Das Objektiv / LED-Element kann zur Anpassung des Kamerawinkels in eine obere, untere oder seitliche Position geschwenkt werden. Kamera/Außengerät Monitor DRC-2BAN DPV-2ME 68° 12,5° 12,5° externes Netzgerät 46 cm (Option) 50 cm 50 cm 50 cm Normal Position Neigung nach oben Neigung nach unten...
Technische Daten Anschluß des Zubehörs Kamera/Außeneinheit DRC-2BAN Option 1: Kamera + 1 Monitor + Wandtelefon + Gong Bildsensor 1/3” CCD s/w Temperaturbereich -10°C bis +40°C Maße ca. H 18,7 x B 12,3 x T 1,7 cm Innengerät max. Entfernung Kamera-Monitor ca. 100 m bei 0,8 mm DP-2VS Monitor/Hörer DPV-2ME Diagonale...
Anschluß des Zubehörs Hinweise zu etwaigen Störungen Lesen und befolgen Sie bitte die folgenden Hinweise, bevor Sie die Video- Option 2: Kamera + 2 Monitore + 2 Wandtelefone Türsprechanlage bei eventuellen Störungen zu Ihrem Fachhändlern bringen. Innengerät Störung Mögliche Ursache DP-2VS Monitor Einheit ausgeschaltet...
Seite 6
A S S E M B LY ComBoy Video-Door Intercom System 1 Family house set with flush-with-wall mounted camera Type: 008434 comprising of: 1 x monitor: DPV-2ME 1 x external camera: DRC-2BAN...
Seite 7
Technical equipment Technical equipment DPV-2ME DRC-2BAN 1.) Receiver 1.) Microphone Enables verbal contact with 2.) Camera lens the door station 1,3” CCD b/w 2.) Speaker 3.) Speaker Gong chimes 2 x, when a visitor Audio receiver for door station presses the call button on the 4.) Illuminated name plate external unit 5.) Cover flaps...
Seite 8
Wiring Setting the camera DRC-2BAN The lens / LED element can be positioned by swiveling upwards, downwards or sideways in order to set the camera angle. Camera/External divice Monitor DRC-2BAN DPV-2ME 68° 12,5° 12,5° External power 46 cm supply unit 50 cm (option) 50 cm...
Technical data Accessories connections Camera/External unit DRC-2BAN Option 1: camera + 1 monitor + wall telephone + gong Image sensor 1/3” CCD b/w Temperature range -10°C to +40°C Dimensions approx. H 18,7 x W 12,3 x D 1,7 cm Internal device Max.
Seite 10
Accessories connections Information regarding possible malfunctions Please read and observe the following instructions prior to returning the video Option 2: camera + 2 monitors + 2 wall telephones door intercom system to your local technical shop in case of a malfunction. Internal Malfunction Possible cause...
M O N TA G E ComBoy Interphone vidéo Ensemble pour maison individuelle avec caméra encastrée Type: 008434 comprenant: 1 écran: DPV-2ME 1 caméra extérieure: DRC-2BAN...
Seite 12
Equipement technique Equipement technique DPV-2ME DRC-2BAN 1.) Combiné 1.) Microphone Permet la liaison vocale avec la 2.) Objectif de la caméra platine de rue 1,3” CCD noir/blanc 2.) Haut-parleur 3.) Haut-parleur Le gong retentit 2 x lorsqu’un Transmission de la voix à la platine visiteur appuie sur la touche de rue d’appel à...
Seite 13
Câblage Réglage de la caméra DRC-2BAN Pour adapter l’angle de la caméra dans une position supérieure, inférieure ou latérale, on peut faire pivoter l’objectif/l’élément DEL. camera/appareil extérieur écran DRC-2BAN DPV-2ME 68° 12,5° 12,5° bloc d’alimen- 46 cm tation 50 cm (option) 50 cm 50 cm...
Caractéristiques techniques Raccordement des accessoires Caméra/platine DRC-2BAN Option 1: caméra + 1 écran + 1 poste mural + gong Capteur d’image 1/3” CCD noir/blanc Gamme de température -10°C à +40°C Dimensions env. H 18,7 x L 12,3 x P 1,7 cm Distance max.
Seite 15
Raccordement des accessoires Remarques en cas de perturbations éventuelles Prière de lire et d’observer les remarques suivantes avant de porter l’interphone Option 2: caméra + 2 écran + 2 poste muraux vidéo chez le spécialiste, en cas de perturbations éventuelles. combiné...
Seite 16
M O N TA G E ComBoy Video-parlofoon 1 gezinswoningsset met verzonken camera Type: 008434 bestaande uit: 1 x monitor: DPV-2ME 1 x buitenkamera: DRC-2BAN...
Technische uitrusting Technische uitrusting DPV-2ME DRC-2BAN 1.) Hoorn 1.) Microfoon Maakt de spreekverbindig met 2.) Cameraobjectief deurstation mogelijk 1,3” CCD z/w 2.) Luidspreker 3.) Luidspreker Gong klinkt 2x als een bezoeker Spraakoverdracht naar het de beltoets aan de deurstation buiteneenheid activeert 4.) Verlicht naambordje 5.) Afdekklep 3.) Monitor...
Seite 18
Bedrading Instelling van de camera DRC-2BAN Het objektief / LED-element kan om de camerahoek aan te passen in een boven- ste, onderste of zijdelingse stand gezwenkt worden. camera/buitenapparaat monitor DRC-2BAN DPV-2ME 68° 12,5° 12,5° externe voedings- 46 cm eenheid 50 cm (optie) 50 cm 50 cm...
Technische gegevens Aansluiting van het toebehoren Camera/buiteneenheid DRC-2BAN Optie 1: camera + 1 monitor + wandtelefoon + gong Beeldsensor 1/3” CCD z/w Temperaturbereik -10°C tot +40°C Afmetingen ca. H 18,7 x B 12,3 x D 1,7 cm binnenapparaat max. afstand camera-monitor ca.
Aansluiting van het toebehoren Aanwijzingen bij eventuele storingen Lees en volg de instructies voordat u de videoparlofoon bij evetuele storingen Optie 2: camera + 2 monitors + 2 wandtelefoons naar uw vakhandelaar brengt binnen- Storing Mogelijke oorzaak apparaat DP-2VS monitor Eenheid uitgeschakeld Netstekker niet goed ingestoken resp.
