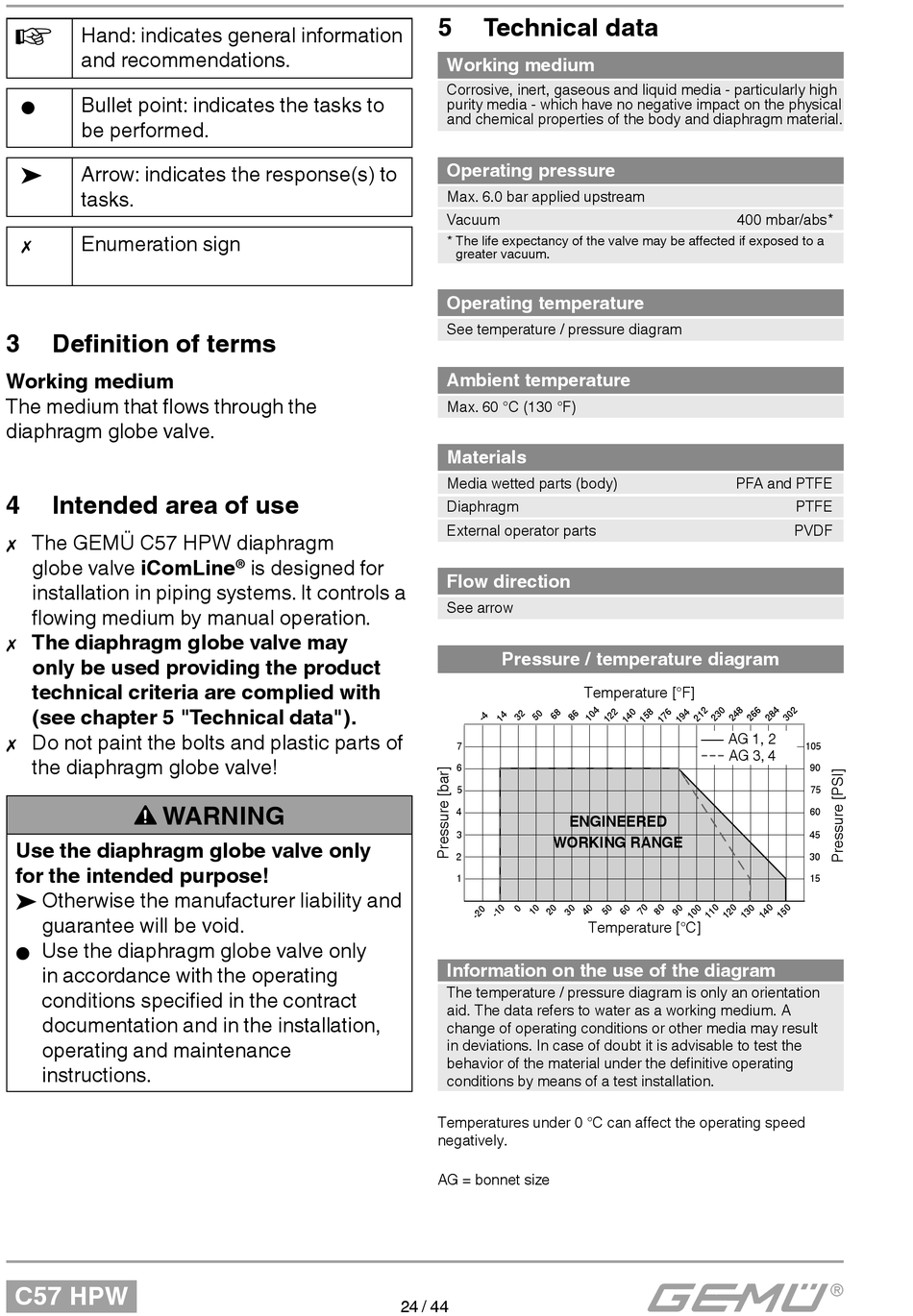

Definition Of Terms; Intended Area Of Use; Technical Data - Gemü CleanStar C57 HPW iComLine Original Einbau- Und Montageanleitung

Hand: indicates general information
and recommendations.
Bullet point: indicates the tasks to
G
be performed.
®
Arrow: indicates the response(s) to
tasks.
Enumeration sign

3

Definition of terms

Working medium
The medium that flows through the
diaphragm globe valve.
4

Intended area of use

The GEMÜ C57 HPW diaphragm

globe valve iComLine
installation in piping systems. It controls a
fl owing medium by manual operation.
The diaphragm globe valve may

only be used providing the product
technical criteria are complied with
(see chapter 5 "Technical data").
Do not paint the bolts and plastic parts of

the diaphragm globe valve!
WARNING
Use the diaphragm globe valve only
for the intended purpose!
® Otherwise the manufacturer liability and
guarantee will be void.
Use the diaphragm globe valve only
G
in accordance with the operating
conditions specifi ed in the contract
documentation and in the installation,
operating and maintenance
instructions.
C57 HPW
®
is designed for
24 / 44
5

Technical data

Working medium
Corrosive, inert, gaseous and liquid media - particularly high
purity media - which have no negative impact on the physical
and chemical properties of the body and diaphragm material.
Operating pressure
Max. 6.0 bar applied upstream
Vacuum
* The life expectancy of the valve may be affected if exposed to a
greater vacuum.
Operating temperature
See temperature / pressure diagram
Ambient temperature
Max. 60 °C (130 °F)
Materials
Media wetted parts (body)
Diaphragm
External operator parts
Flow direction
See arrow
Pressure / temperature diagram
Temperature [°F]
7
6
5
4
ENGINEERED
3
WORKING RANGE
2
1
Temperature [°C]
Information on the use of the diagram
The temperature / pressure diagram is only an orientation
aid. The data refers to water as a working medium. A
change of operating conditions or other media may result
in deviations. In case of doubt it is advisable to test the
behavior of the material under the definitive operating
conditions by means of a test installation.
Temperatures under 0 °C can affect the operating speed
negatively.
AG = bonnet size
400 mbar/abs*
PFA and PTFE
PTFE
PVDF
AG 1, 2
105
AG 3, 4
90
75
60
45
30
15
