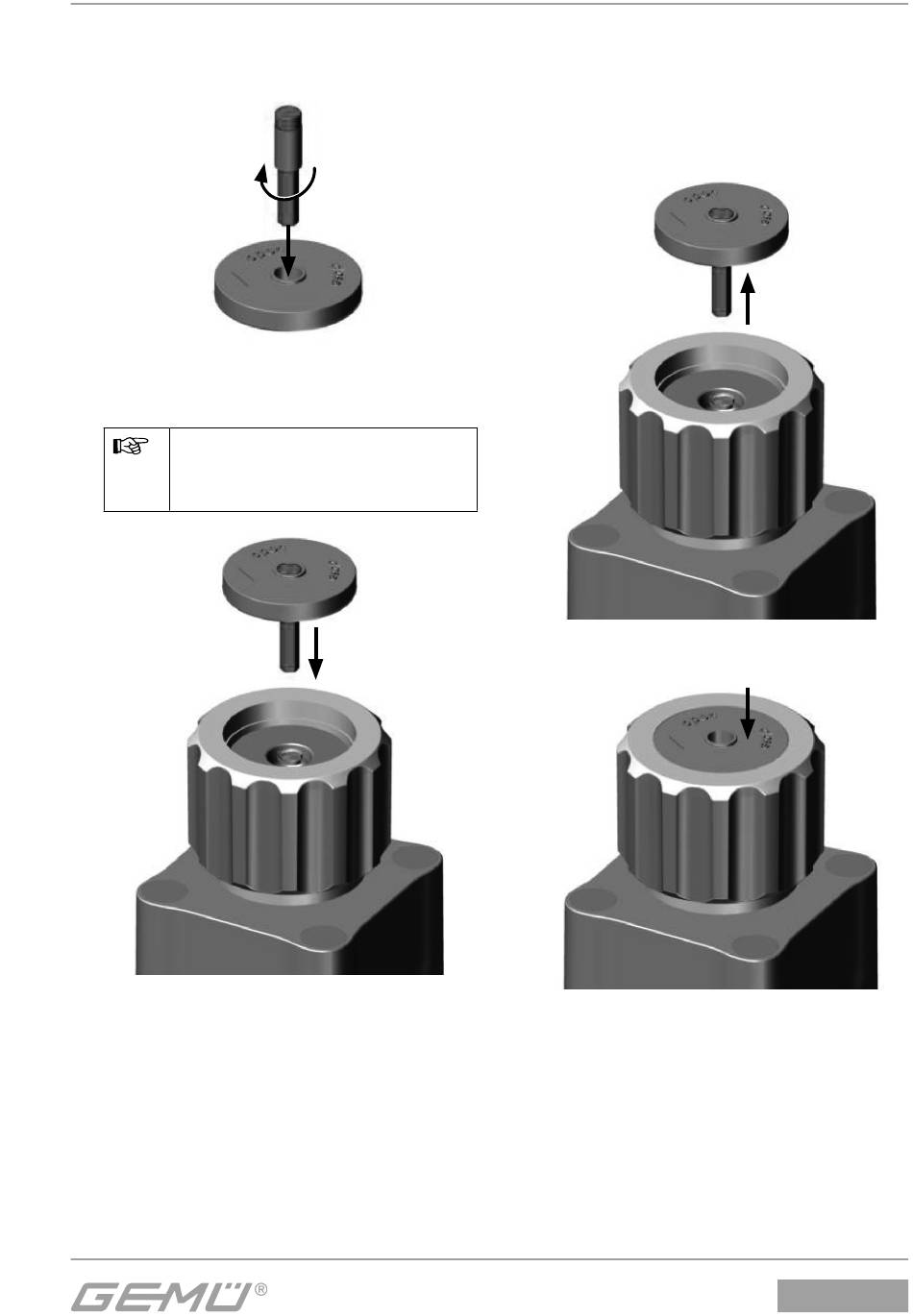

3. Screw the new optical position
indicator S into the new cap K until it is
fl ush with the upper ring of the cap.
4. Push in the combination of optical
position indicator S and cap K until it is
fl ush with handwheel H.
Important:
The bonnet must be in the
closed position.
® The optical position indicator S is
completely assembled.
S
K
K
S
H
A
Bonnet size 4:
1. Move bonnet A to the closed position,
fully tighten handwheel H.
2. Prick cap K with a screw driver, carefully
pry it upwards together with the optical
position indicator S and dispose.
3. Push in new cap K until it is fl ush with
handwheel H.
35 / 44
K
S
H
A
K
H
A
C57 HPW
