Operating menu
The menu is divided into two areas:
• EasyActions
• Parameters
1. From the main screen, turn the operating
button 180° to call up the first function.
2. Continue to turn the operating button by 180°
at a time to call additional functions or to go
back to the main screen
NOTICE
EasyActions can be deactivated in menu 7.06.
Parameter menu
All values can be displayed and adjusted via the
parameter menu. The menu is divided into seven
areas:
1. Control parameters: setpoints, start/stop
delays
2. Communication parameters: ModBus
3. Operating modes: activation and deactivation
of the connected pumps
4. Information: indicator of parameters currently
set as well as data for the switchgear
(type, serial number etc.)
5. Installation: basic settings for the switchgear
6. Fault memory
7. Service
The menu structure is adapted automatically
based on the settings. Menu 1.01 is only visible if
a pressure sensor is connected and activated
accordingly in menu 5.06.
Furthermore, the menu structure is applicable and
defined for all variants of the EC switchgears
(HVAC, Booster, Fire, Rain, Lift). This may lead to
gaps in numbering.
46
EasyActions

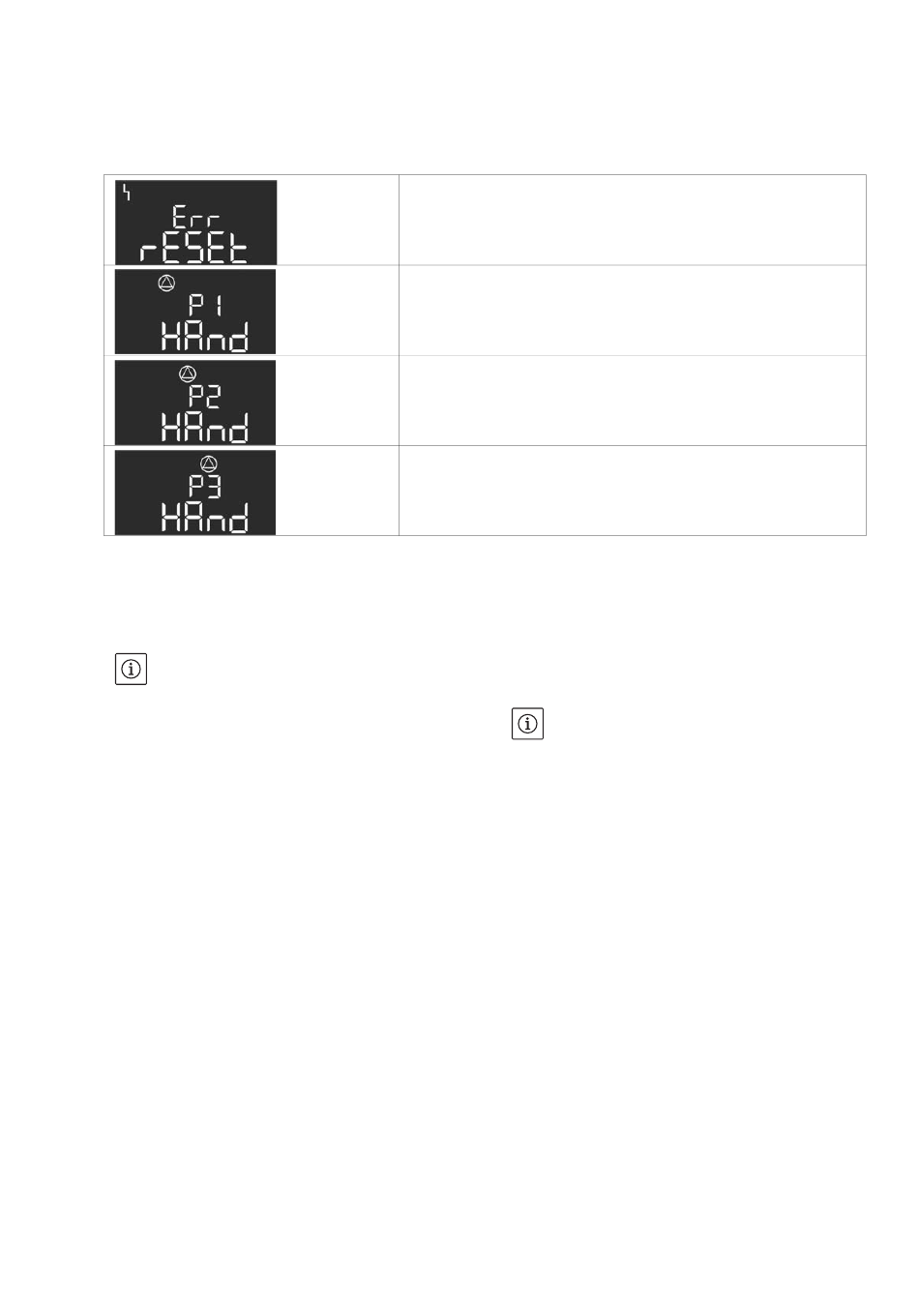

EasyActions offers quick access to the following
functions:
Resetting error messages
Pump 1 is switched on in the manual mode as long as the operating button
is kept pressed
Pump 2 is switched on in the manual mode as long as the operating button
is kept pressed
Pump 3 is switched on in the manual mode as long as the operating button
is kept pressed
Menu overview
1. Start the menu by pressing the operating
2. Follow the menu structure below for the
NOTICE
• Generally, values can only be displayed.
Approval must be obtained to actually change the
values. For this, set the value to "on" in menu 7.01.
• If there is no operation for approx. 6 minutes,
parameter setting is locked again!
• Some parameters can only be adjusted if no pump
is in operation.
button for 3 sec.
desired value and change this according to
your specifications.
