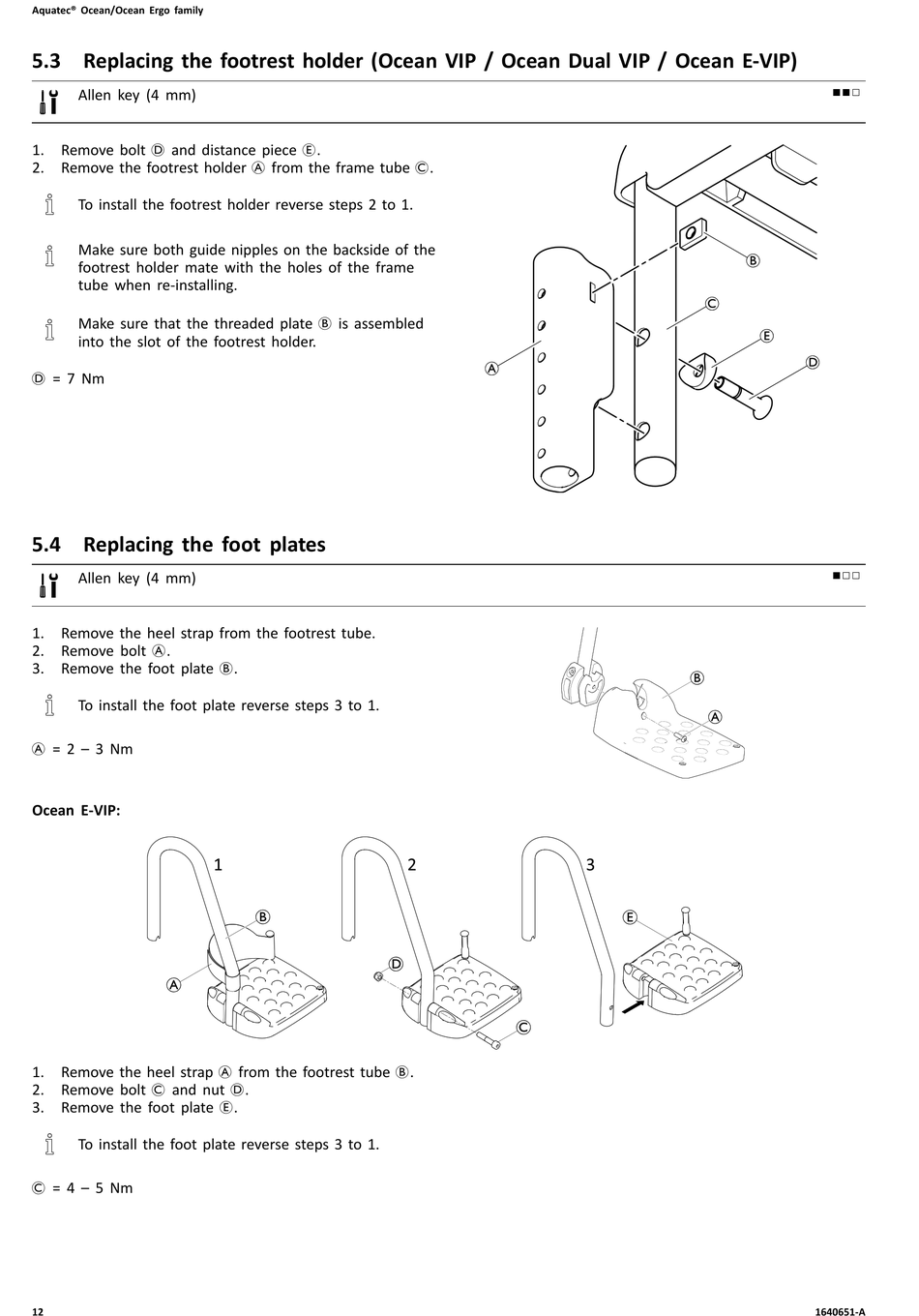

5.3 Replacing the footrest holder (Ocean VIP / Ocean Dual VIP / Ocean E-VIP)

Allen key (4 mm)
1. Remove bolt D and distance piece E.
2. Remove the footrest holder A from the frame tube C.
To install the footrest holder reverse steps 2 to 1.
Make sure both guide nipples on the backside of the
footrest holder mate with the holes of the frame
tube when re-installing.
Make sure that the threaded plate B is assembled
into the slot of the footrest holder.
D = 7 Nm

5.4 Replacing the foot plates

Allen key (4 mm)
1. Remove the heel strap from the footrest tube.
2. Remove bolt A.
3. Remove the foot plate B.
To install the foot plate reverse steps 3 to 1.
A = 2 – 3 Nm
Ocean E-VIP:
1. Remove the heel strap A from the footrest tube B.
2. Remove bolt C and nut D.
3. Remove the foot plate E.
To install the foot plate reverse steps 3 to 1.
C = 4 – 5 Nm
