User's Manual
Variant 2
T urn the 6 mm Allen screw clockwise to decrease the spring preload, eg.
when the flat screen is constantly moving up itself.

4.5.2 setting the VEsa plate

Tools

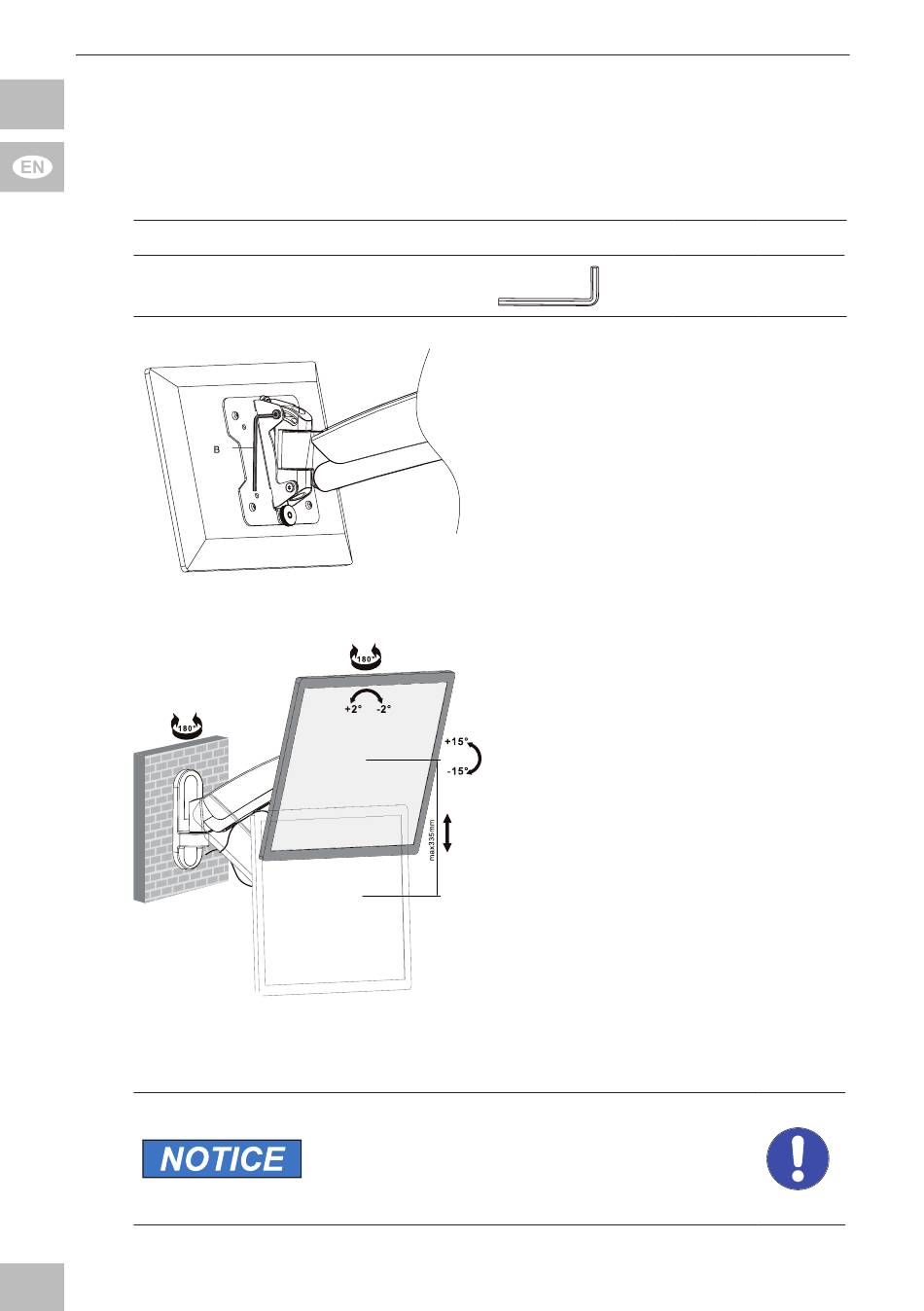

Fig. 30: Setting the VESA plate
4.5.3 A djusting the flat screen
Fig. 31:

Adjusting the flat screen

4.6

Managing the cables

Tab. 24: Managing the cables
32
Allen key
3 mm
Risk of material damage by inappropria-
te ambient conditions
>> Keep enough space around product and to
the whole system to ensure proper ventilati-
on and mobility.
1. Secure the swivel arm with
one hand.
2. Loosen the upper 3 mm Allen
screw by turning it slightly.
3. Adjust the tilting angle.
4. Tighten the upper 3 mm Allen
screw by turning it clockwise
firmly.
A lign the flat screen as needed
>> vertically
>> horizontally and/or
>> in rotation axis
Power cords can subsequently
be connected due to the
mobility of the wall mount.
B
