User's Manual

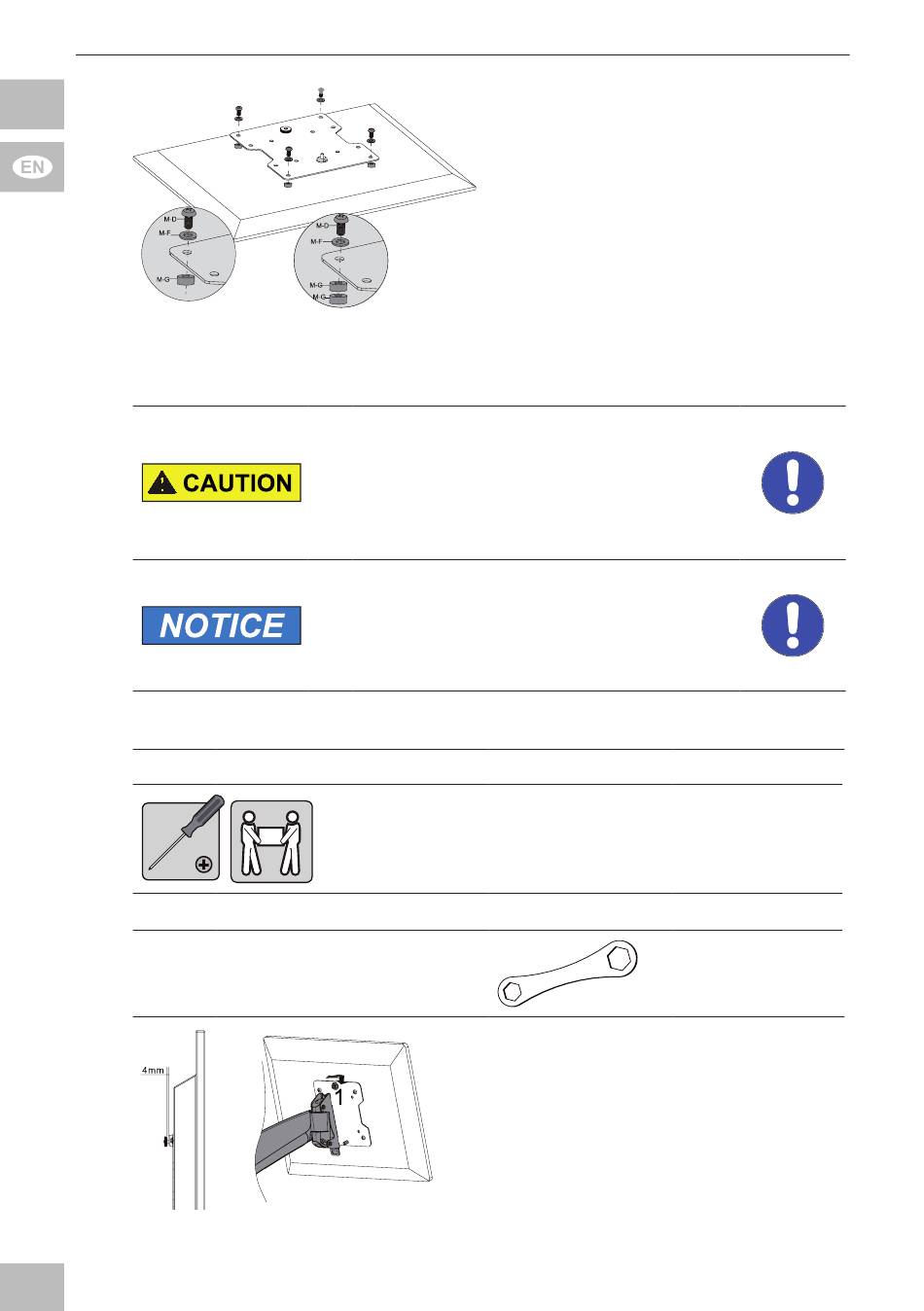

Fig. 26: Attaching the VESA plate 4.3.2
4.4 Attaching and fastening the flat screen
Tab. 22: Attaching and fastening the flat screen
Tools for all Models
additional tools for Models 63479 and 63480
Fig. 27: Attaching the flat screen
30
Risk of injury by tripping and falling
>> Place, transport and install product, parts
and acceories in a safe way.
>> When working with burdens, secure your-
self and the working place, let a second
person help you.
Risk of material damage by inappropri-
ate ambient conditions
>> Keep enough space around product and
to the whole system to ensure proper
ventilation and mobility.
Wrench
2. Attach the VESA plate with
w ashers (M-F), screws (M-D)
and TV spacers (M-G) on the
fl at screens back as shown.
The TV spacers (M-G) can be used
singly or doubly. Attend using the
adequate screw length.
1 . H ang flat screen and VESA plate with
screw 1 and the pre-assembled upper
nut slopingly to the notch of the TV
wall mount (A) together with a second
person.
Between the upper nut and the threaded
stopper, a gap of about 4 mm is ideal.
