additional tools for Models 63479 and 63480
Wrench

4.2.1 preparing

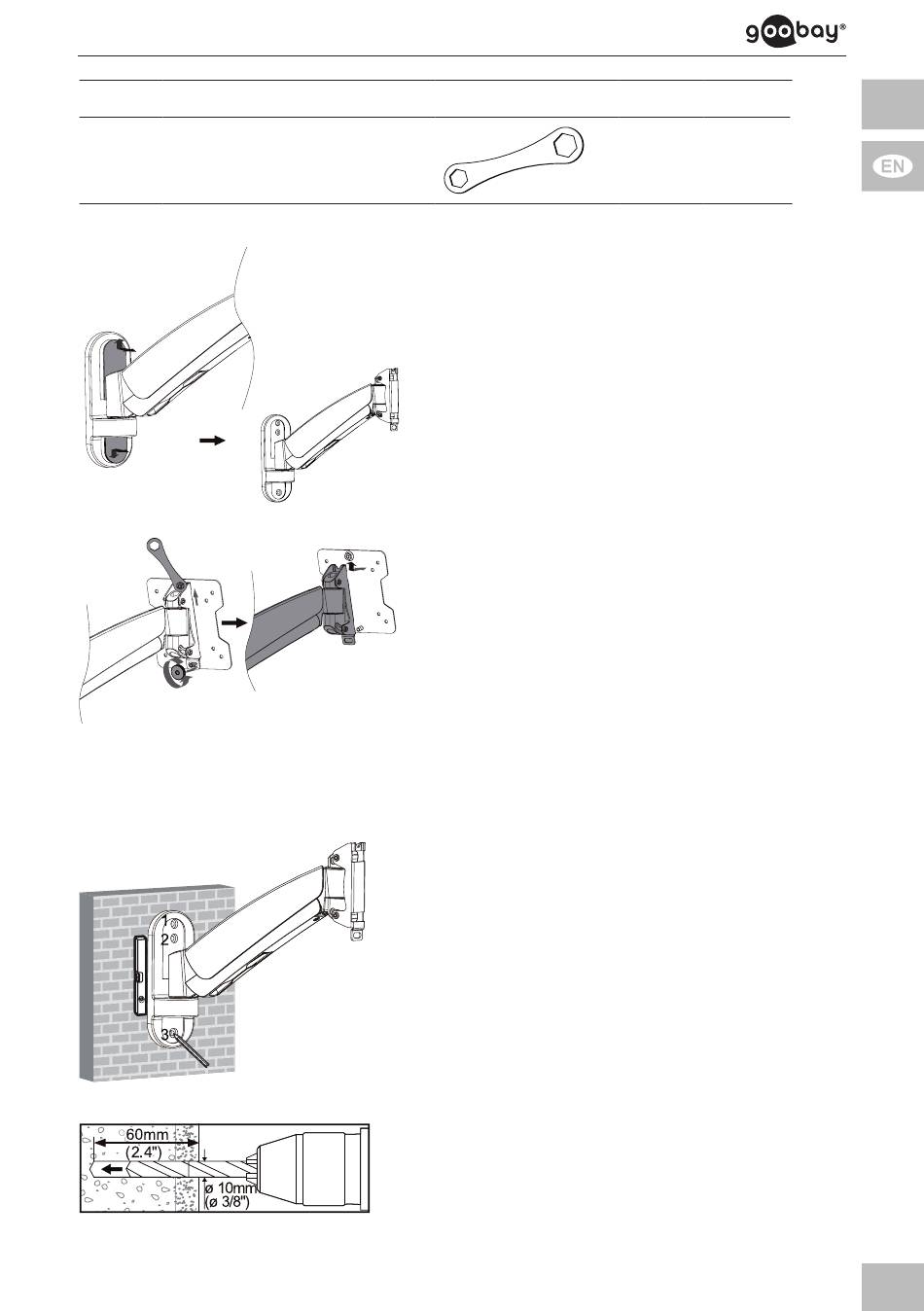

Fig. 17: Removing the plastc covers
Fig. 18: Removing the VESA plate
For models 63479 and 63480 is the wrench (D) necessary in addition.

4.2.2 Wall mounting

Fig. 19: Aligning and marking
Fig. 20: Drilling drill holes
1.
2.
3.
1.
2.
3.
Use the TV wall plate (A) as template.
4.
R emove the 2 plastic covers of the
TV wall mount (A) by sliding the
upper one obliquely forward and
upward and the lower one forward
and downward.
R emove the VESA plate by loosening
t he top nut slightly, so that it still fits
securely on the thread.
R emove the lower nut counterclock-
wise completely.
B efore drilling, attend to live cables or
o ther lines lying behind plaster, and
do not damage them.
Use a spirit level to mark the drill
holes on the wall.
Mark the drill holes 1 to 3 with a
pencil.
Drill the drill holes with a 10mm
concrete drill 60mm deep.
D
