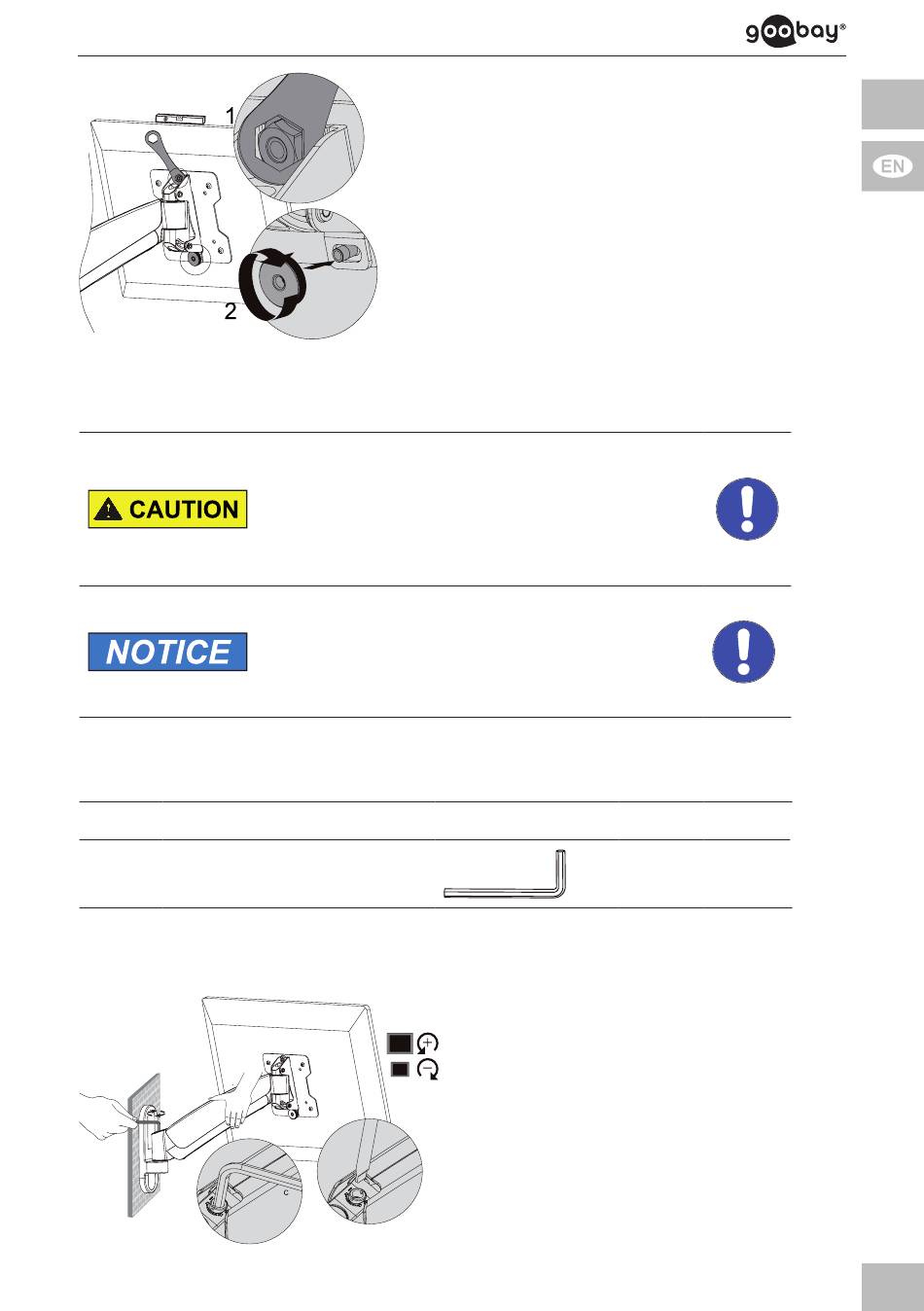

Fig. 28: Fastening the flat screen
4.5 Adjusting the flat screen
Tab. 23:Adjusting the flat screen

4.5.1 adjusting the swivel arm

Tools
Allen key
6 mm
With the 6 mm Allen screw you can adjust the spring tension of the swivel arm.
A heavy flat screen requires a tighter adjustment than a slight.
Fig. 29: Adjusting the swivel arm
2.
3.
Risk of injury by moving product parts
>> Do not hold limbs between shear parts
during use.
>> Mind the mobility of the product during
use. This may move away from the wall or
towards it and swivel sideways.
Risk of material damage by inappropria-
te ambient conditions
>> Keep enough space around product and to
the whole system to ensure proper ventilati-
on and mobility.
S et the flat screen vertically.
Tighten the upper and lower nut
c lockwise onto the screws 1 and 2,
u ntil they fit firmly.
1. Secure the swivel arm with
one hand.
Variant 1
Turn the 6 mm Allen screw
counterclockwise to (+) to
i ncrease the spring preload,
e g. when the flat screen is
constantly moving down itself.
C
