Flat Screens With Arched Back - Goobay EasySlide S Betriebsanleitung

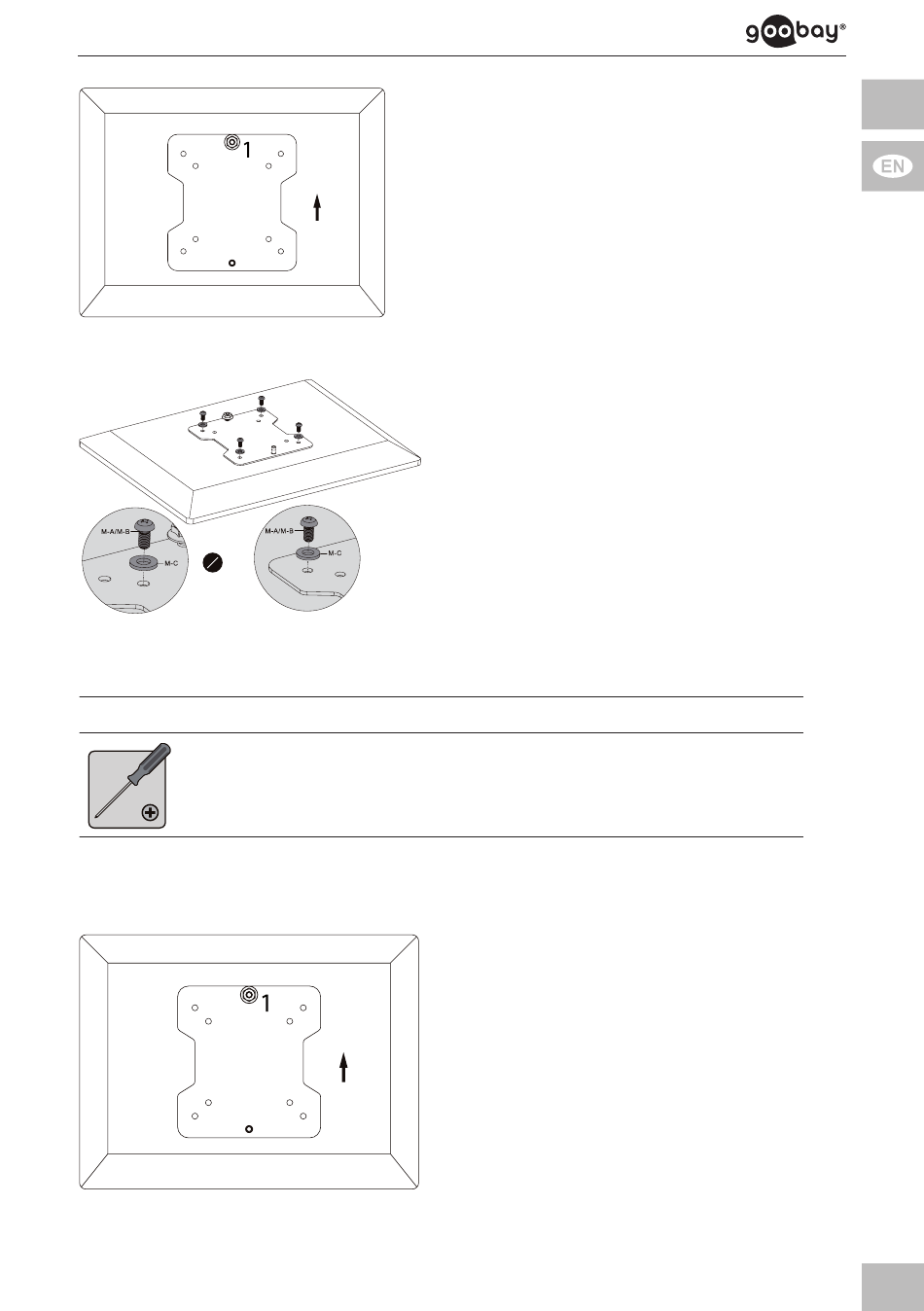

Fig. 23: Aligning the VESA plate 4.3.1
Fig. 24:Attaching the VESA plate 4.3.1

4.3.2 Flat screens with arched back

Tools for all Models
Using flat screens with arched backs is only possible with models 63481 and
63482.
Fig. 25: Aligning the VESA plate 4.3.2
1. L ean the flat screen vertically
o n a soft, large surface or a
wall and protect it of scratches
and overturning.
Make sure that screw 1 sits on the
fl atscreens top side with the pre-
assembled nut, like shown in chapter
4.2. These parts keep VESA plate
a nd flat screen while attaching them
to the wall plate.
2. Attach the VESA plate with the
w ashers and screws, fitting to
y our flat screen at the flat
screens back as shown.
1. L ean the flat screen vertically
o n a soft, large surface or a
wall and protect it of scratches
and overturning.
Make sure that screw 1 sits on the
fl atscreens top side with the pre-
assembled nut, like shown in chapter
4.2. These parts keep VESA plate
a nd flat screen while attaching them
to the wall plate.
