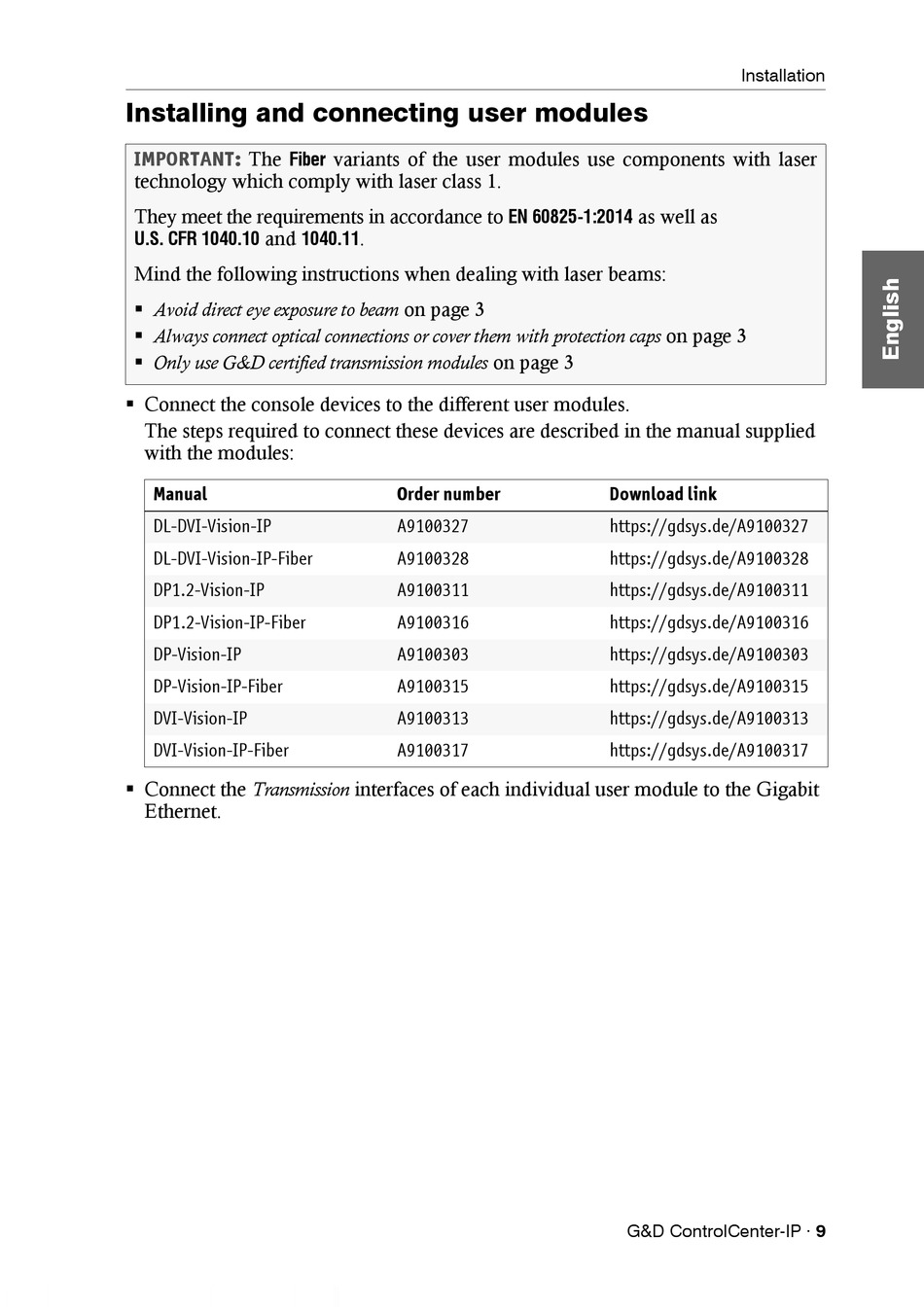

Installing and connecting user modules

IMPORTANT: The Fiber
technology which comply with laser class 1.
They meet the requirements in accordance to
and
U.S. CFR 1040.10
Mind the following instructions when dealing with laser beams:
 Avoid direct eye exposure to beam on page 3
 Always connect optical connections or cover them with protection caps on page 3
 Only use G&D certified transmission modules on page 3
 Connect the console devices to the different user modules.
The steps required to connect these devices are described in the manual supplied
with the modules:
Manual
DL-DVI-Vision-IP
DL-DVI-Vision-IP-Fiber
DP1.2-Vision-IP
DP1.2-Vision-IP-Fiber
DP-Vision-IP
DP-Vision-IP-Fiber
DVI-Vision-IP
DVI-Vision-IP-Fiber
 Connect the Transmission interfaces of each individual user module to the Gigabit
Ethernet.
variants of the user modules use components with laser
.
1040.11
Order number
A9100327
A9100328
A9100311
A9100316
A9100303
A9100315
A9100313
A9100317
EN 60825-1:2014 as well as
Download link
https://gdsys.de/A9100327
https://gdsys.de/A9100328
https://gdsys.de/A9100311
https://gdsys.de/A9100316
https://gdsys.de/A9100303
https://gdsys.de/A9100315
https://gdsys.de/A9100313
https://gdsys.de/A9100317
